Remaining Paper Detection

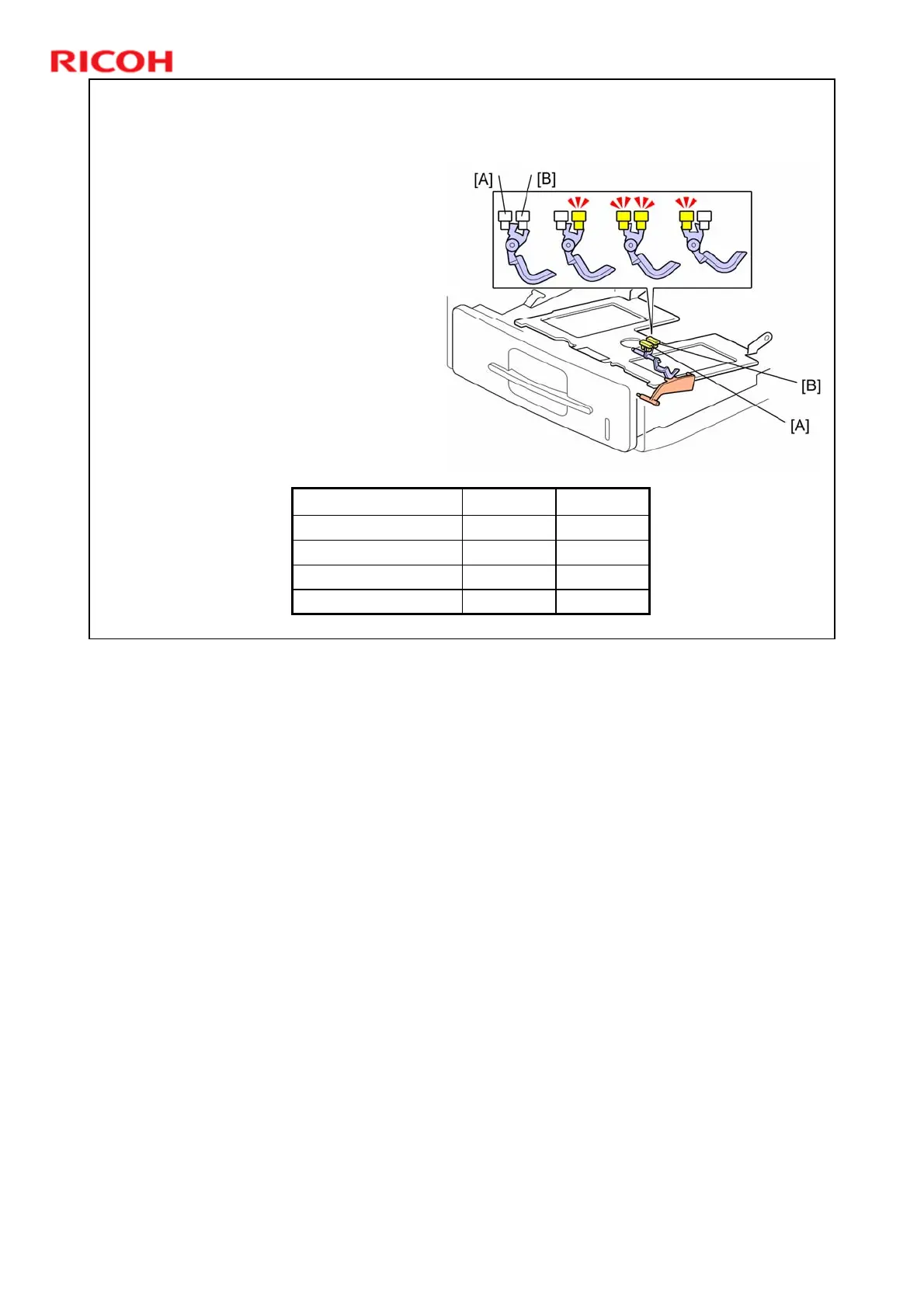

Remaining paper is detected by
the combination of the
remaining paper sensor signals.
The signals from the sensors
indicate whether there are 500,
450, 250, or 50 sheets remaining.
[A] Remaining paper sensor 1
[B] Remaining paper sensor 2
OFFON451-550 sheets (100%)
ONON251-450 sheets (90%)
ONOFF51-250 sheets (50%)
OFFOFF1-50 sheets (10%)
Sensor 2Sensor 1Amount of paper
No additional notes.
