SH-P1 Training
31
Slide 31

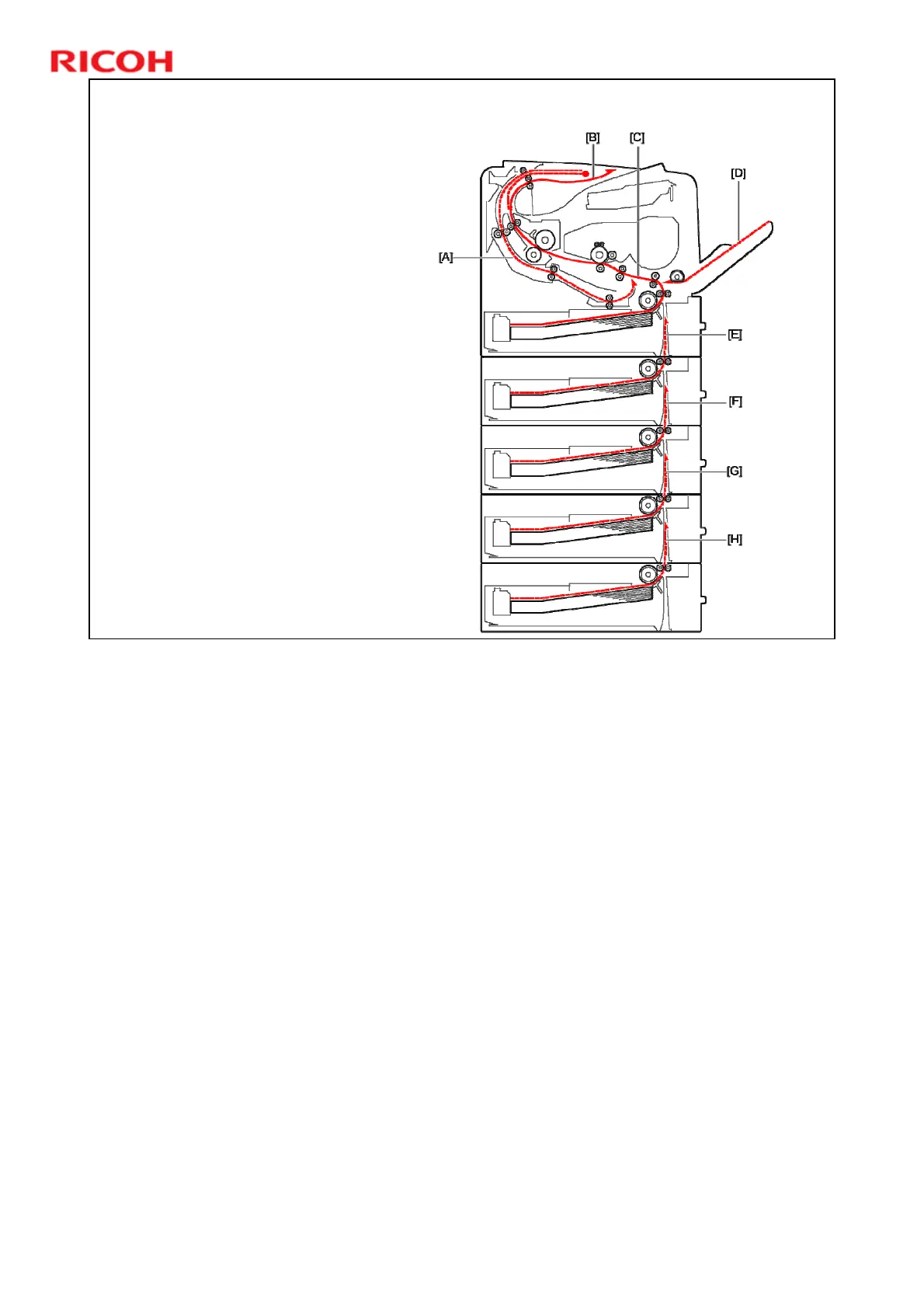

Paper Path
A: Paper feed through duplex unit
B: Paper exit to the paper stack
C: Paper feed from tray 1
D: Paper feed from by-pass tray
E: Paper feed from optional PFU (tray 2)
F: Paper feed from optional PFU (tray 3)
G: Paper feed from optional PFU (tray 4)
H: Paper feed from optional PFU (tray 5)
This slide shows the paper path with four optional paper trays installed.
