Ricoh LCIT RT5130 - Page 11

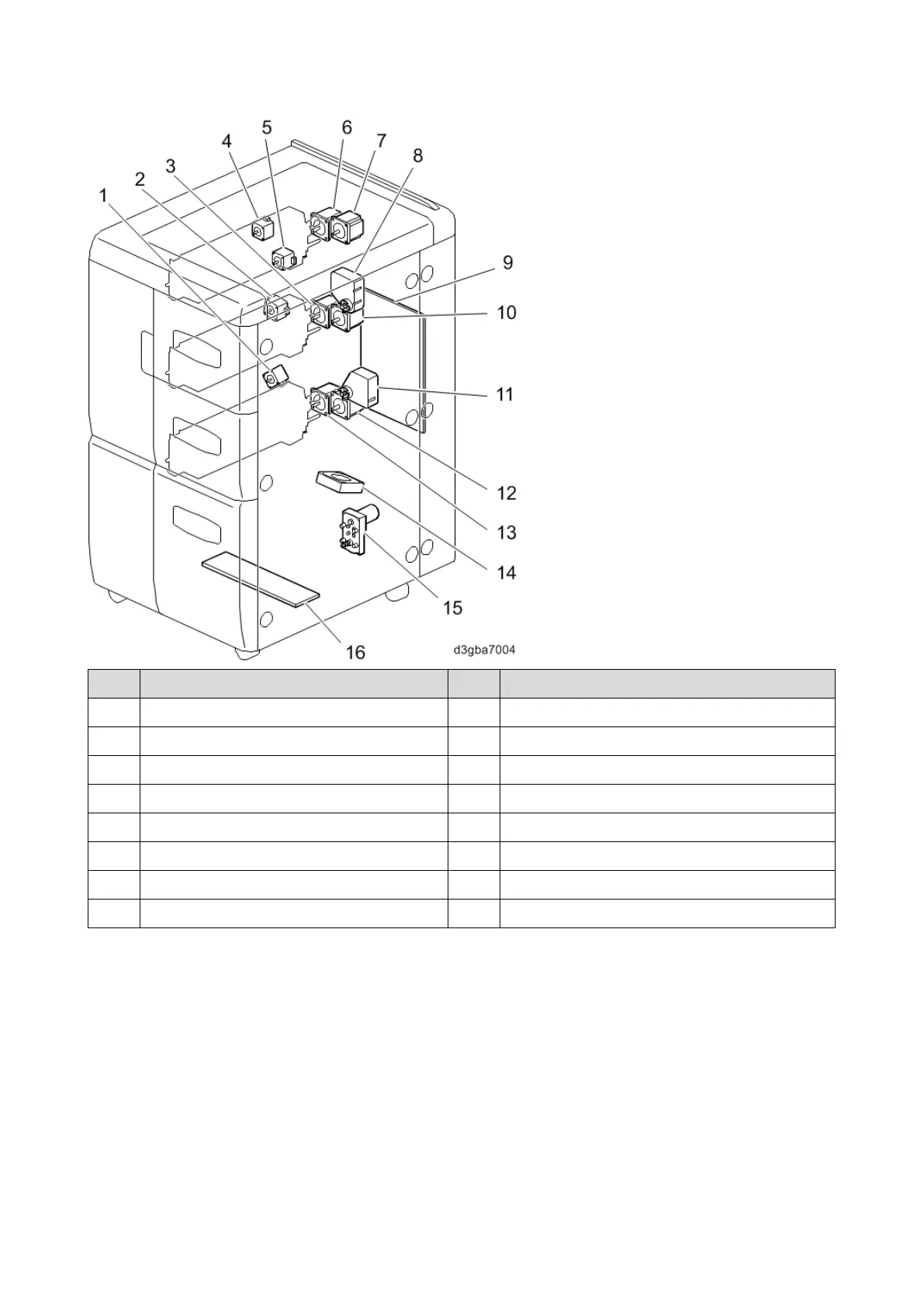

1.Overview and Components
7
No.
Name
No.
Name
1
Tray 6th Vertical Transport motor
9
Main Controller Board
2
Tray 5th Vertical Transport motor
10
Tray 5th Paper Feed Motor
3
Tray 5th Transport Motor
11
Tray 5th Lift Motor
4
Tray 4th Vertical Transport motor
12
Tray 6th Paper Feed Motor
5
LCT Exit Motor
13
Tray 6th Transport Motor
6
Tray 4th Transport Motor
14
LCT Cooling Fan 1
7
Tray 4th Paper Feed Motor
15
Tray 6th Lift Motor
8
Tray 4th Lift Motor
16
Anti-Condensation Heaters (Option)
