Ricoh LCIT RT5130 - Motors; Paper Feed and Transport Motors

2.Replacement and Adjustment
39
Motors
Paper Feed and Transport Motors
Each paper feed unit has a paper feed motor and a transport motor .
The removal procedure is the same for each feed tray.
1. Remove the rear cover. (Front Door and Covers)

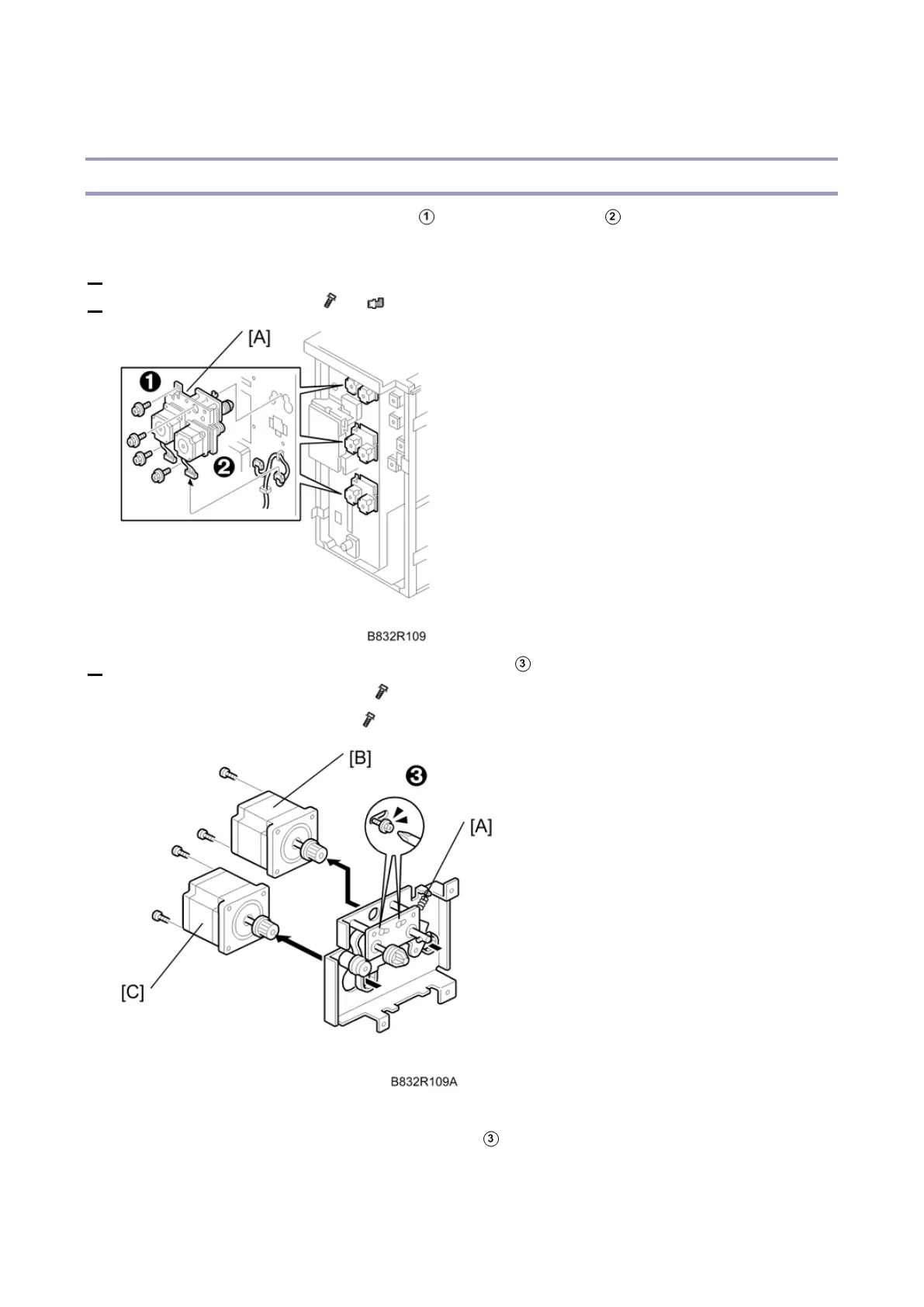

2. Remove the motor unit [A] ( x4, x2)
3. Remove the springs [A] (x 2) First, loosen the screws (x2)
Remove the paper feed motor [B] ( x2).
Remove the transport motor [C] ( x2).
Reinstallation
Attach the tension spring, and then tighten the screws to tighten the belts.
