2.Replacement and Adjustment
49
Electrical Components
Paper Feed and End Sensors

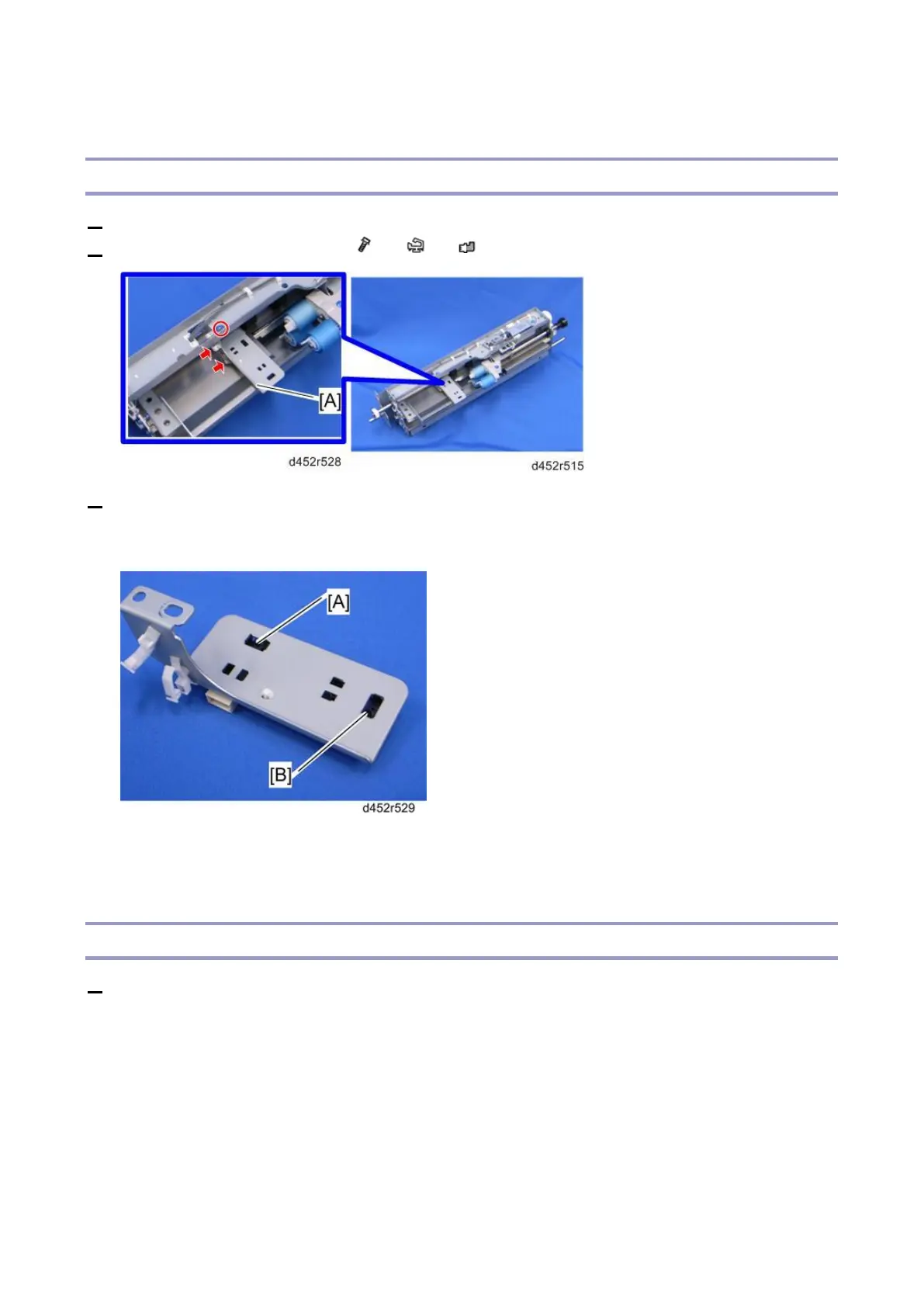

1. Remove the paper feed unit (Paper Feed Units)
2. Remove the sensor bracket [A] ( x 1, x 3, x 1)
3. Remove the following:
[A]: Paper feed sensor (hooks)
[B]: Paper end sensor (hooks)
When reinstalling the sensor bracket
Make sure that the white connector is connected to the paper feed sensor, and the red connector is
connected to the paper end sensor.
Lift Sensor
1. Remove the paper feed unit (Paper Feed Units)
