2.Replacement and Adjustment
45

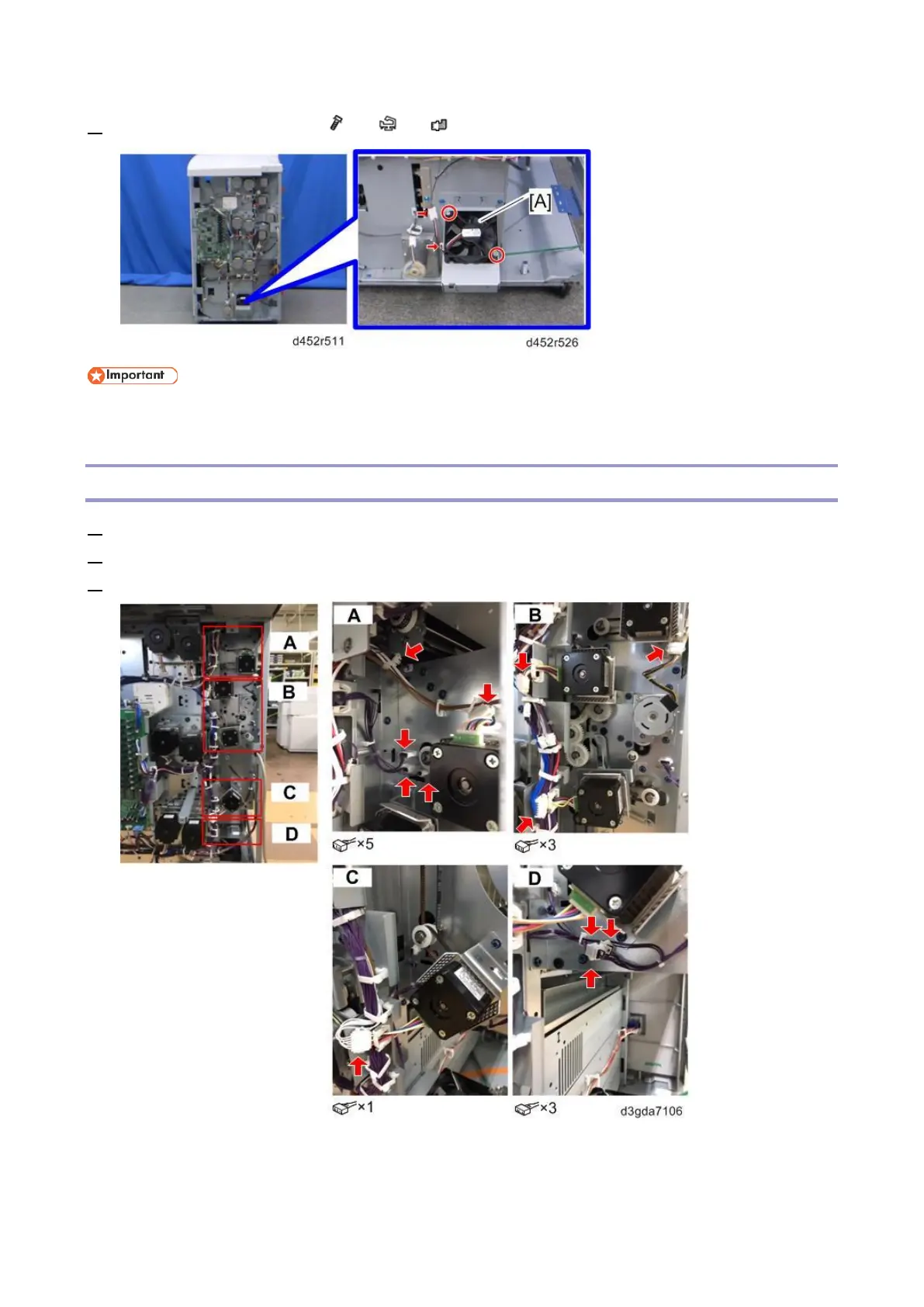

2. Remove the cooling fan [A] ( x 2, x 1, x 1)
When reinstalling the cooling fan, make sure that the cooling fan is installed with its decals
facing upward.
Cooling Fan 2
1. Remove the rear cover (Front Door and Covers).
2. Remove the inner cover (upper/lower) (Inner Covers).
3. Disconnect the connectors at each section [A] [B] [C] [D] to remove the transport unit.
