Ricoh LCIT RT5130 - Paper End Detection

1.Overview and Components
21
Paper End Detection
The upper side stay has a paper end sensor (reflex type sensor). This sensor detects paper end by
detecting the face of the paper. When paper end is detected, the lift motor rotates backward to lower
the bottom plate of the tray.
Reverse Time
Tray 4 and 5: three seconds
Tray 6: six seconds

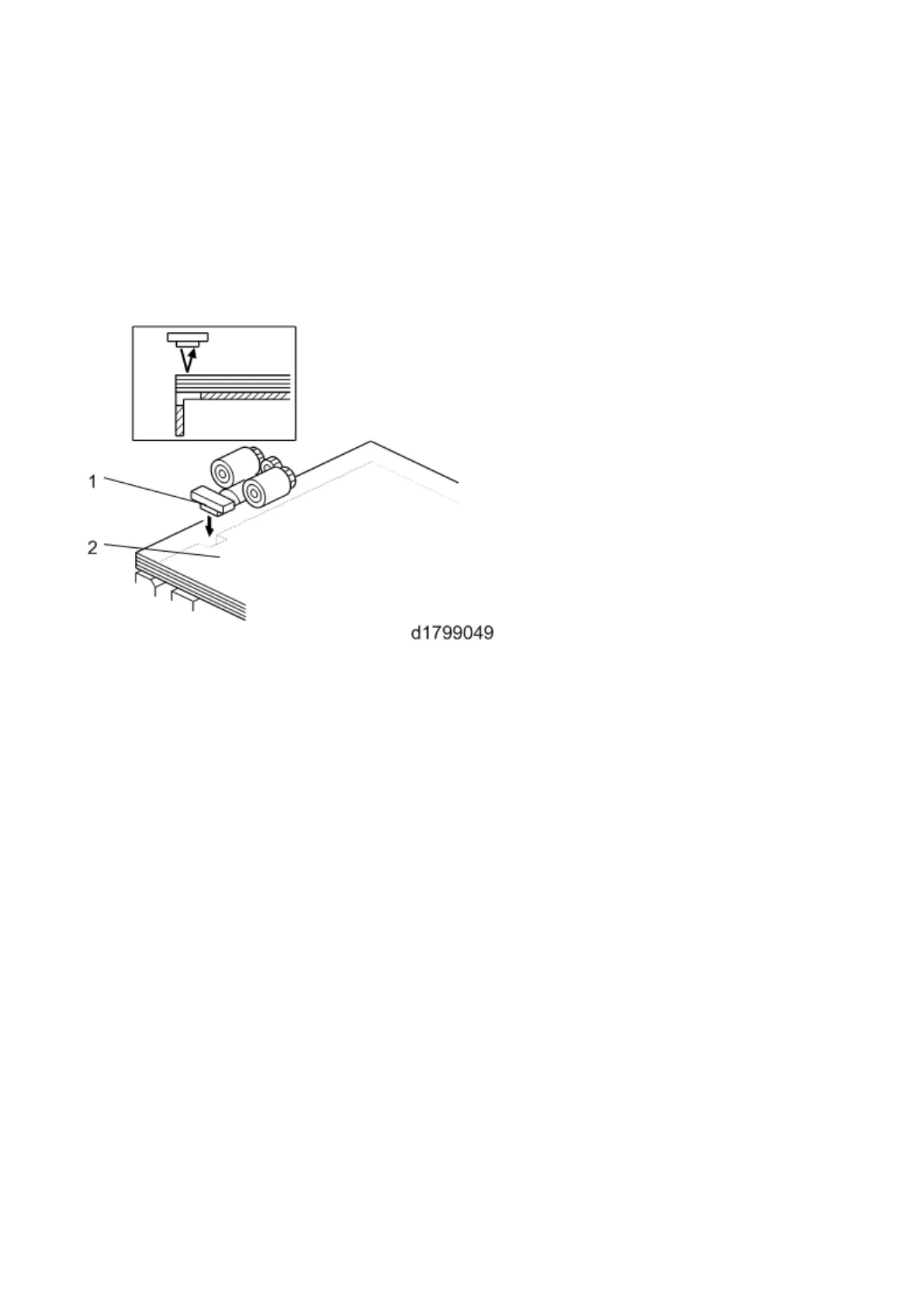

1: Paper End Sensor
2: Paper
