2.Replacement and Adjustment
28

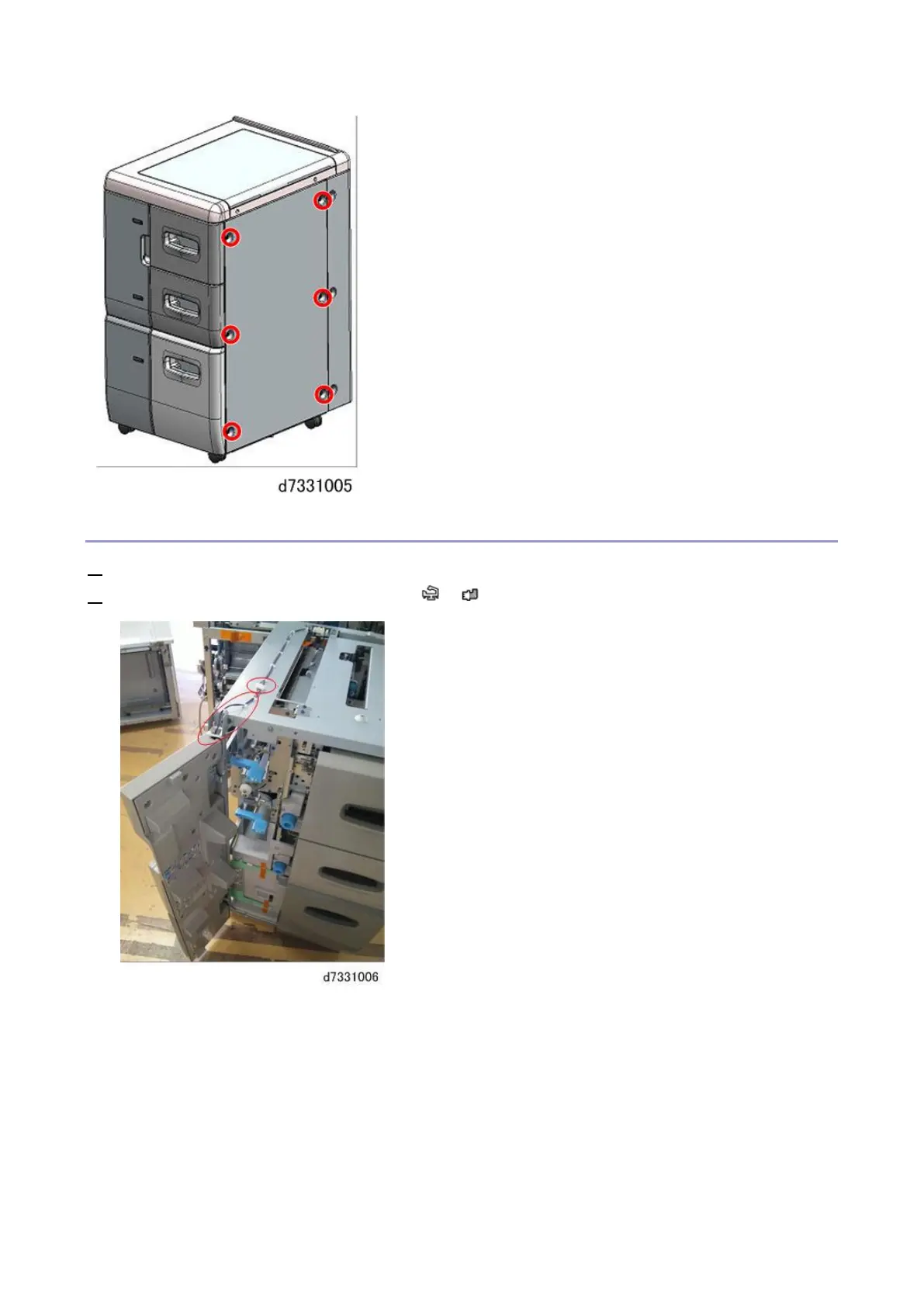

Door
1. Remove the top covers. (Top Covers, Rear Cover)
2. Free the harness, and then disconnect it ( x2, x1).
