Top Tray

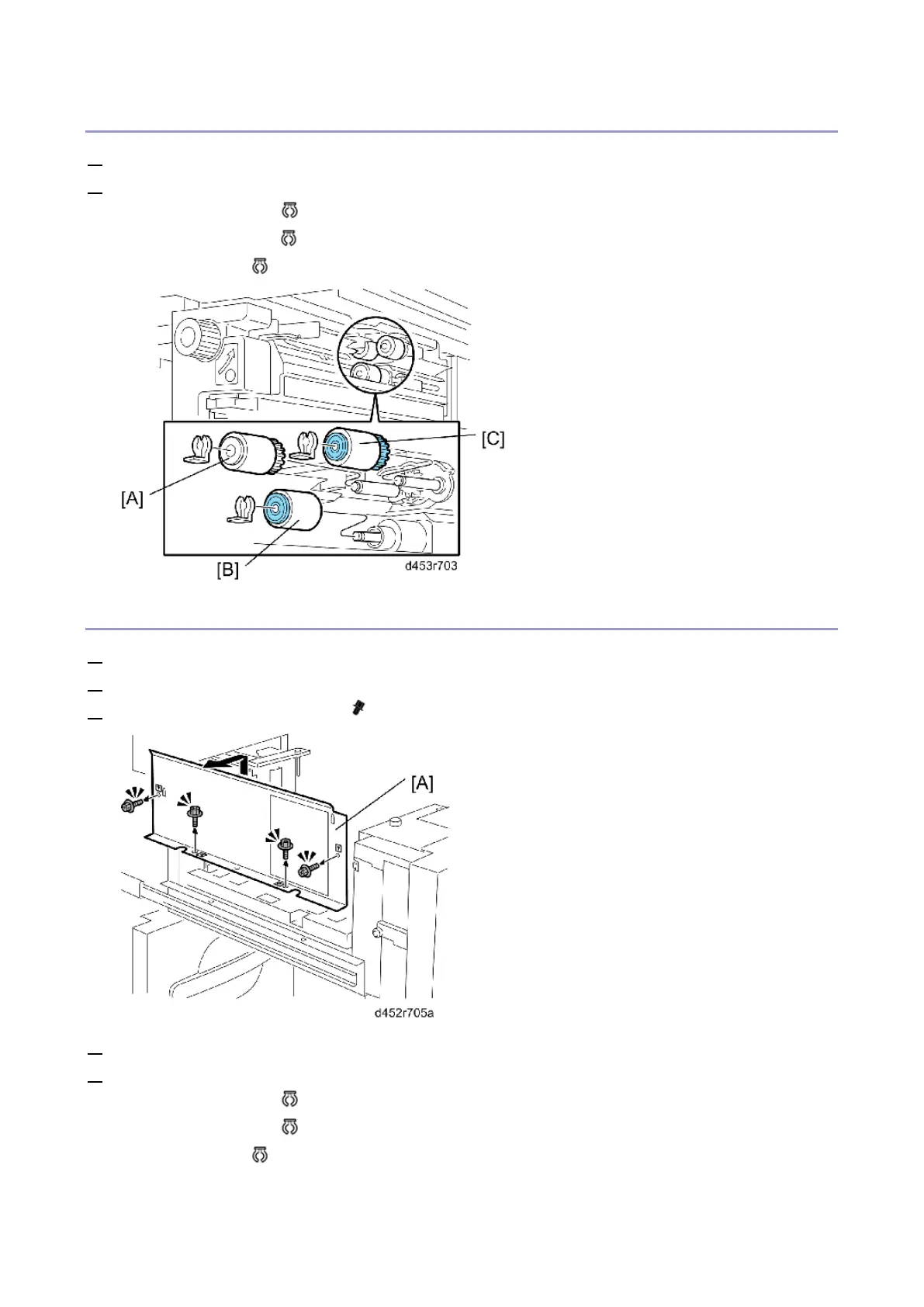

1. Remove the top tray. (Top Tray (Tray 4))
2. Remove the following rollers:
[A]: Paper feed roller ( x 1)
[B]: Separation roller ( x 1)
[C]: Pickup roller ( x 1)
Middle, Bottom Tray
1. Remove the middle tray or bottom tray.
2. Remove the inner upper cover of the middle tray or bottom tray (Inner Covers)
3. Remove the tray side plate [A] ( x 4).
4. Pull the paper feed unit [A].
5. Remove the following:
[B]: Paper feed roller ( x 1)
[C]: Separation roller ( x 1)
[D]: Pickup roller ( x 1)
