Key Counter Bracket Type H (A674)
D117/D118 2-60 SM

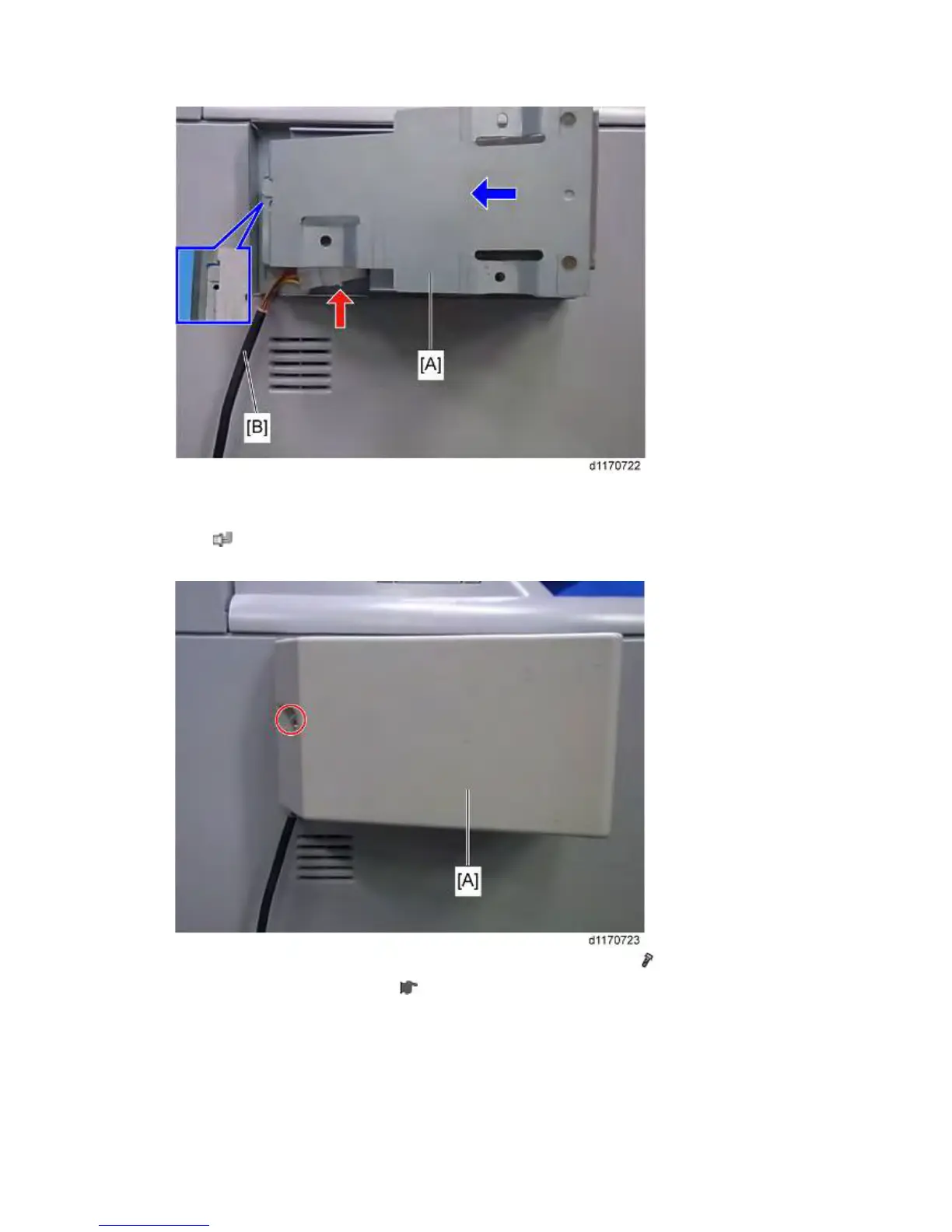

6. Connect the connector of the harness [B] to the connector from the key counter bracket, and
then insert the key counter bracket [A] into the attaching bracket obliquely from the upper right
side (
x 1).
7. Pull out the harness [B] from below as shown above.
8. Attach the key counter bracket cover [A] to the key counter bracket (
(large) x 1).
9. Remove the scanner rear cover (
p.4-30)

Ricoh MP C305SPF Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Scan Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
ADF Capacity	50 sheets
Duplex Printing	Yes
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Functions	Print, Copy, Scan, Fax
Scanner Type	Flatbed, ADF
Fax Speed	33.6 Kbps
Print Speed	30 ppm
Paper Capacity	350 sheets
Paper Size	A4, A5, A6, B5
Fax Transmission Speed	Approximately 3 seconds per page
Operating System Compatibility	Windows, Mac, Linux
