Ricoh MP C305SPF - RTB 56 b: SC502 troubleshooting and parts information

Technical Bulletin PAGE: 1/3
Reissued: 24-Mar-16
Model: GR-C1
Date: 19-Oct-15
No.: RD117056b
RTB Reissue
The items in bold italics were corrected or added.
SYMPTOM
SC502
CAUSE
The tension spring breaks, causing the base plate of the paper tray to not move properly
followed by failure in detecting paper within the specified time.
SOLUTION
In the field
Method 1:

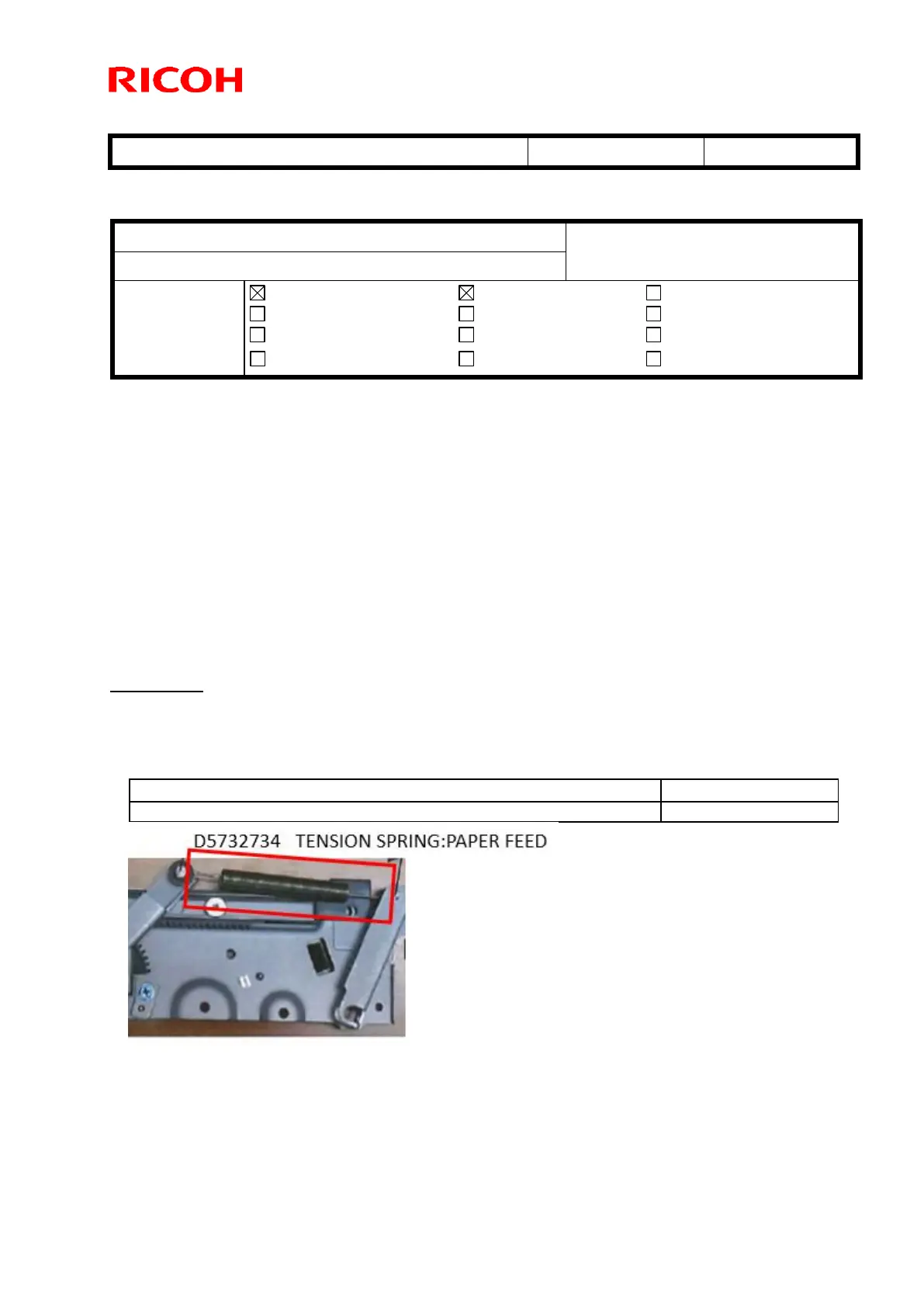

Replace the following spring.
Description
Part number
TENSION SPRING:PAPER FEED
D5732734
Note:
Do Method 1 only for machines that do not have the modification described on the
next page (S/N: ~ E035Z300001).
Subject: SC502 troubleshooting and parts information
Prepared by: K Kunimatsu
From: Field Quality Management Group1, FQM Dept.
Classification:
Troubleshooting
Mechanical
Paper path
Part information
Electrical
Transmit/receive
Action required
Service manual revision
Retrofit information
Product Safety
Other ( )
Tier 2
