Procedure

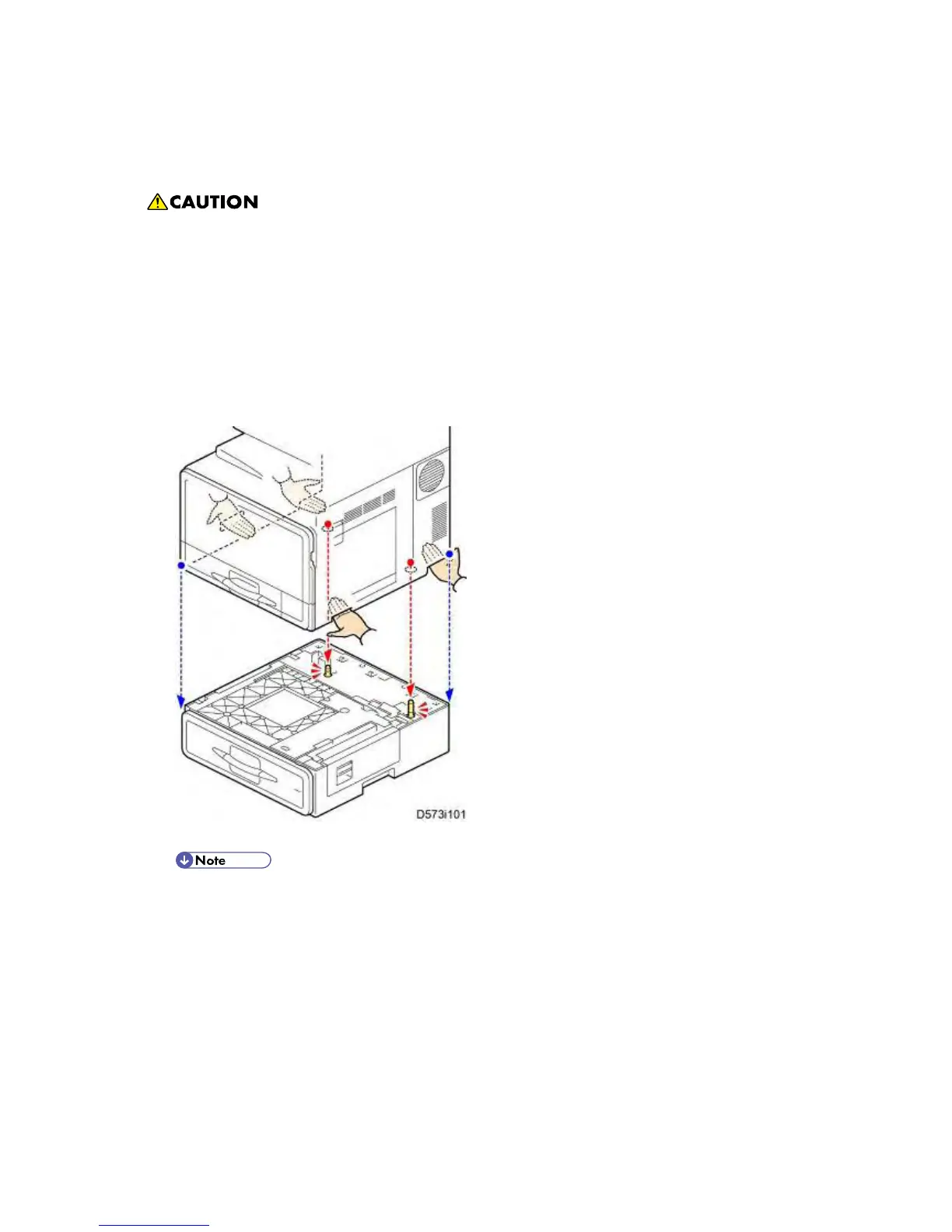

1. Remove the paper feed unit.

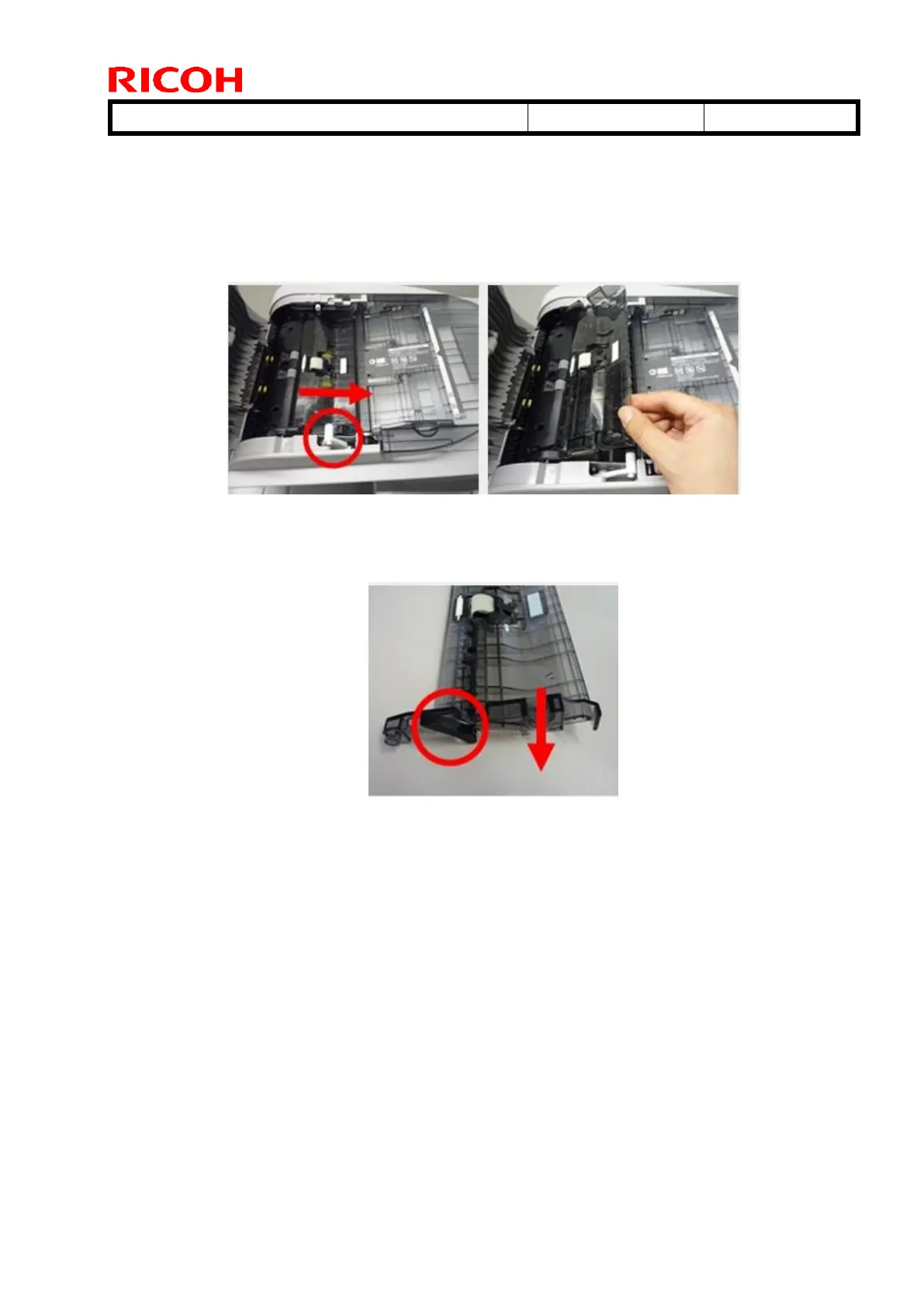

2. Remove the separation guide plate.
* If you knock down the lock lever (the red frame) in the direction of the red arrow, you can lift
the separation guide plate. Then, remove the part by bending it.
3. Remove the separation pad holder.
* Because the separation pad holder may fly out, remove the part by pushing the lever (the red
frame) while holding the part.
