How to Use the Screens on the Control Panel
The display panel shows the operation status, messages, and function menus.
The function items displayed serve as selector keys. You can select or specify an item by lightly pressing
them.
When you select or specify an item on the display panel, it is highlighted like . Keys
appearing as cannot be used.
• Do not apply strong impact or force to the screen, or it may be damaged. Maximum force
allowable is approx. 30N (approx. 3 kgf). (N = Newton, kgf = Kilogram force. 1 kgf = 9.8N.)
The [Top] screen is set as the default screen when the machine is turned on.
The [Top] screen, the [Home] screen, and the screen of each function may differ depending on the
optional units that are installed.

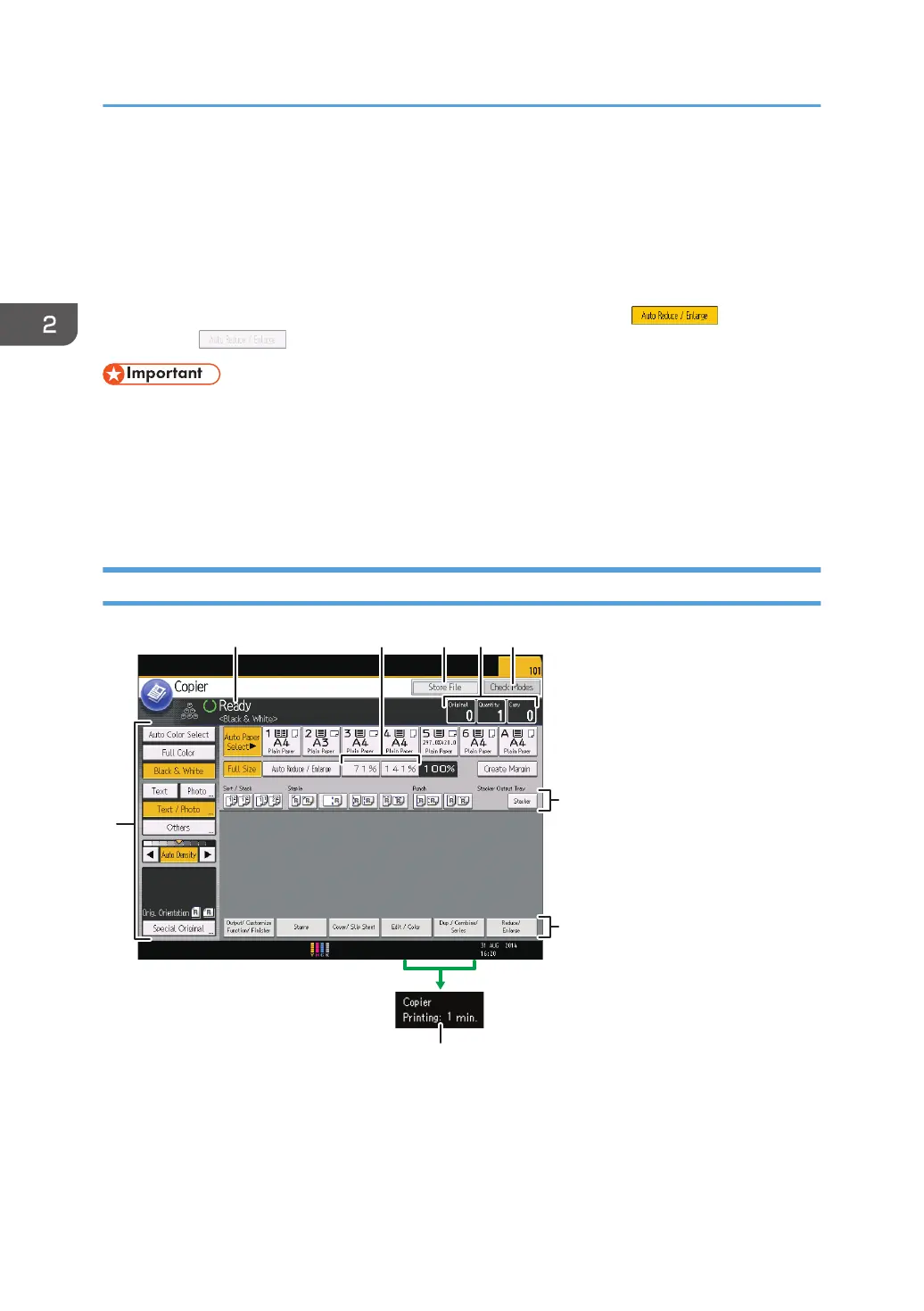

How to Use the [Copier] Screen
DER030
12345
7
6
8
9
1. Operational status and messages
Displays operational status and messages.
2. Getting Started
