41

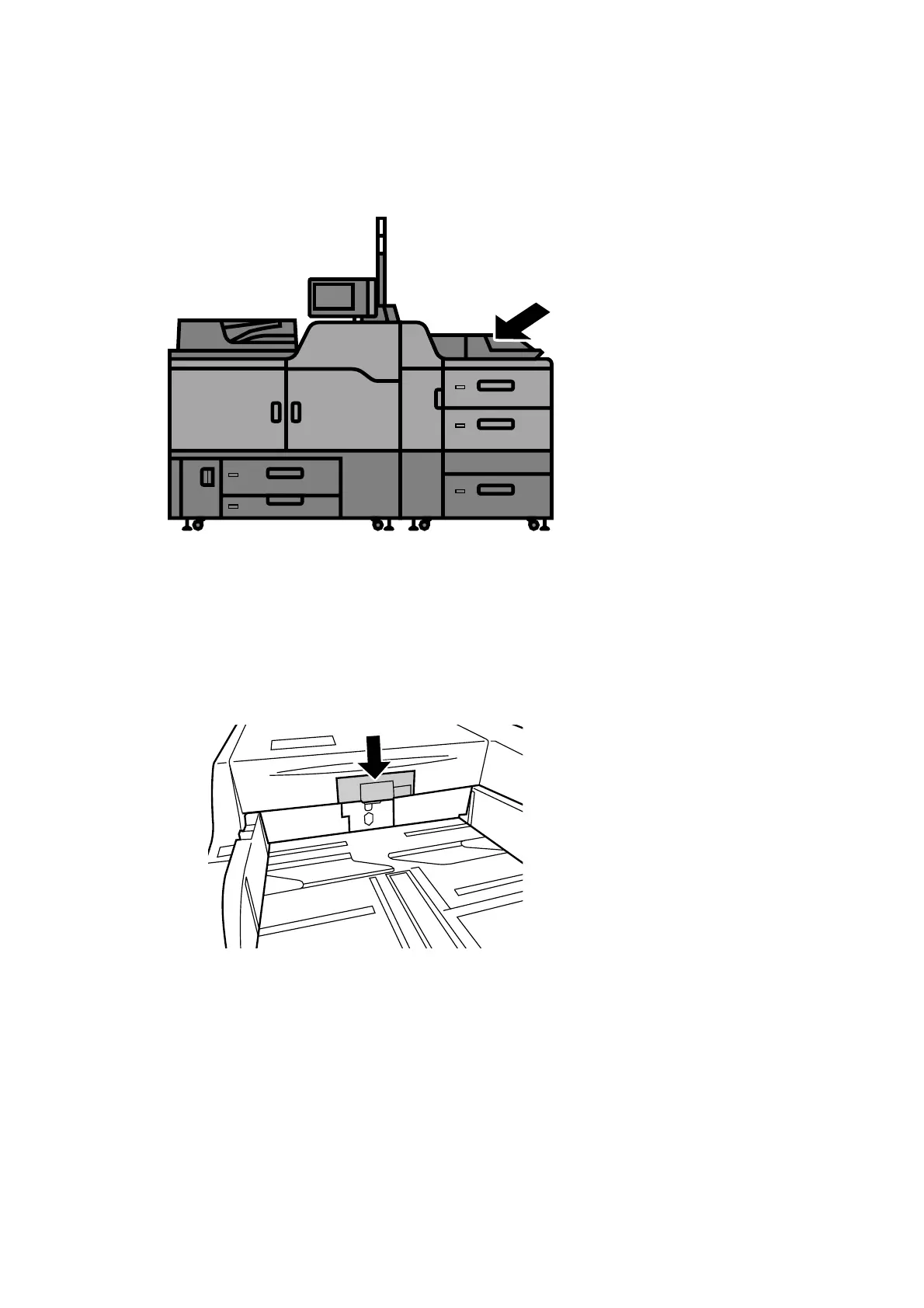

2.6 Replacing the Rollers in the Multi Bypass Tray (Tray
6)
CEZ224
The bypass feed rollers can be accessed from the top of the wide LCT.
2.6.1 Removing the Rollers: Multi Bypass Tray (Tray 6)
Note: The rollers are behind the snap-off cover.
CEZ167
