8.1 Fusing Belt Stripper and Pressure Roller Stripper
Plates
1. Make sure that the system is turned off and the machine power cord is
disconnected from the power source.

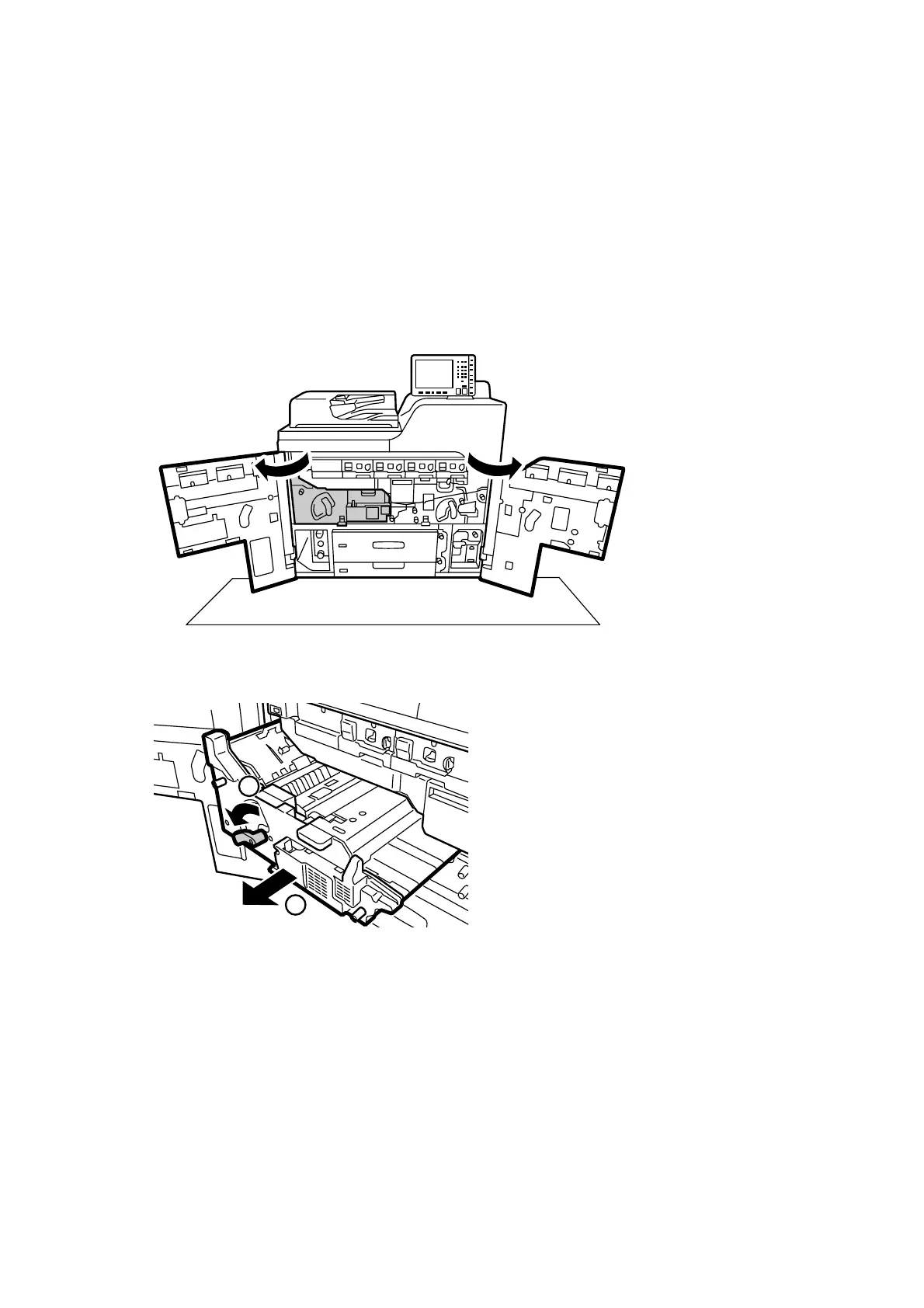

2. Open the left and right front covers.
The fusing belt stripper and pressure roller stripper plates are located on the
left drawer unit.
CEZ123
3. Pull down the lever C1, and then pull the left drawer out completely until it stops.
1
2
CEZ124
To Next Page
