2.3 Replacing the Rollers in the Wide LCT Top Tray (Tray
3)
2.3.1 Removing the Rollers: Top Tray (Tray 3)
CEZ104

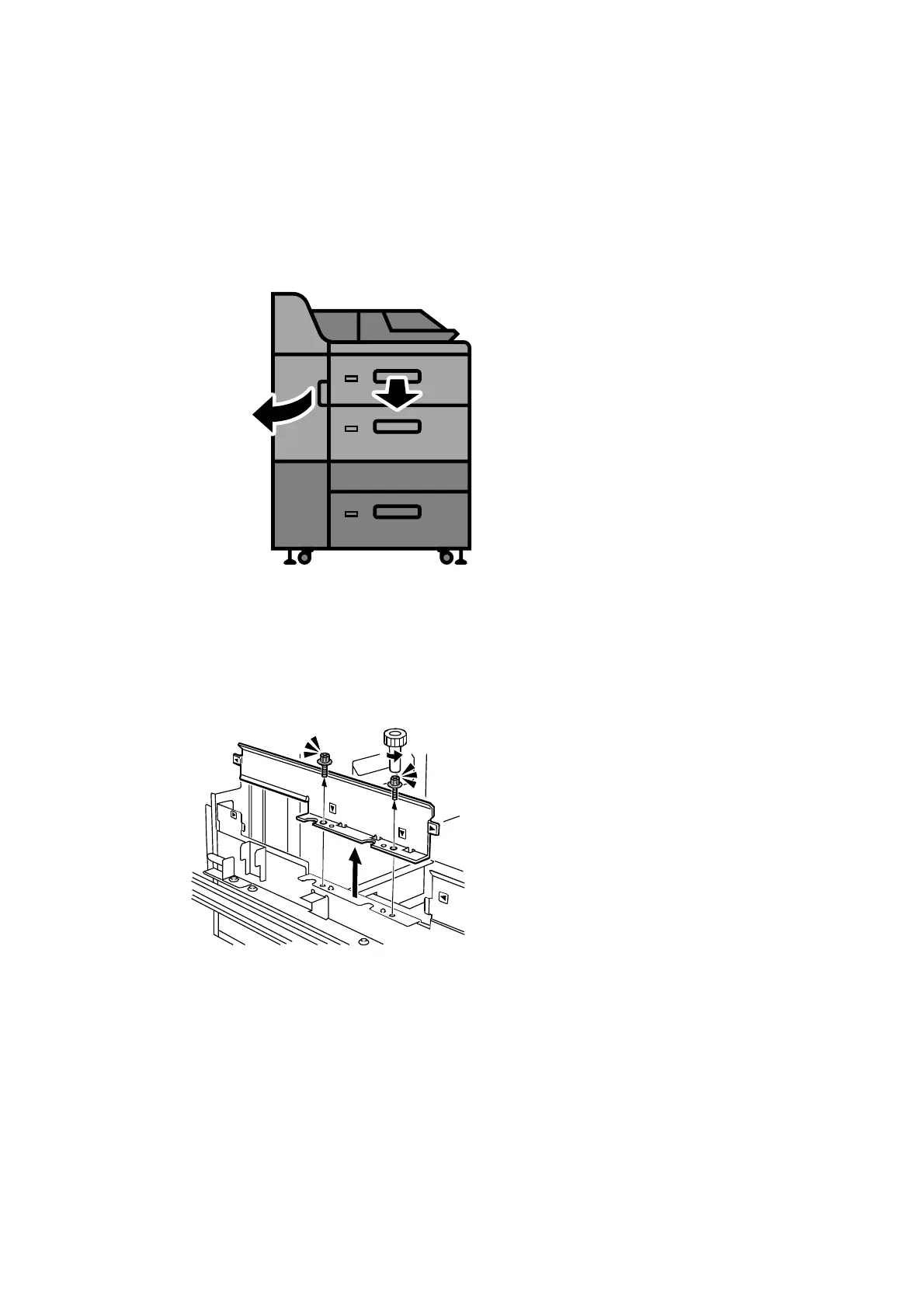

1. Open the wide LCT front cover.
2. Pull open the top tray (Tray 3) until it stops. If there is any paper in the tray,
remove it.
3. Remove the two black screws on the side plate, and then remove the plate.
CEZ203
To Next Page
