Finishing: Fold

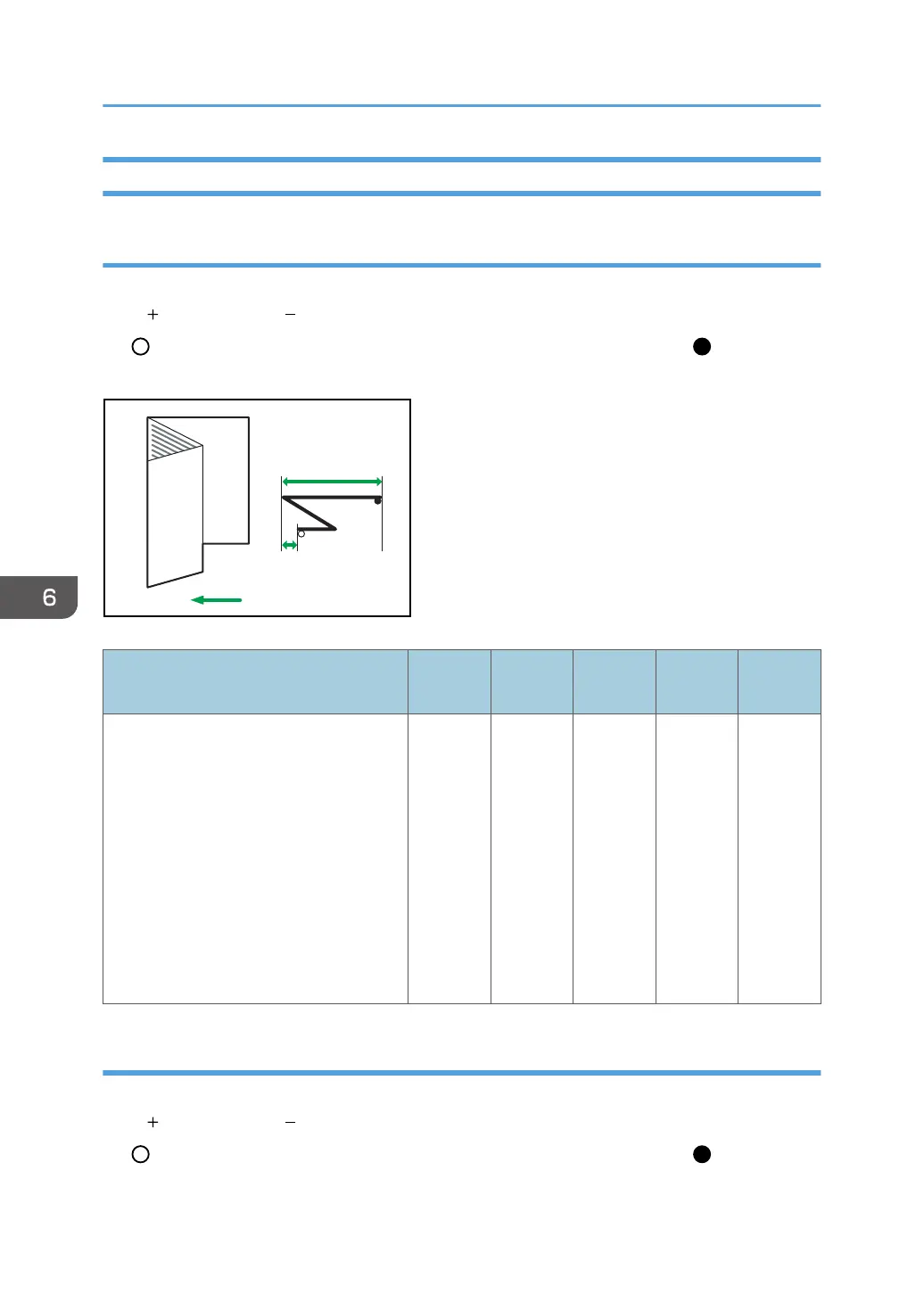

0701 Z-fold Position 1
Adjust the fold position of the end segment (S) when using the fold unit.
Press [ ] to increase and [ ] to reduce (S).
The mark indicates the leading edge (relative to the paper feed direction), and the mark indicates
the trailing edge.
Paper feed direction
S
L
DWP561
Setting Items
Default
Value
Max.
Value
Min.
Value
Step Unit
A3 SEF
B4 JIS SEF
A4 SEF
12 × 18 SEF
11 × 17 SEF
8
1
/
2
× 14 SEF
8
1
/
2
× 11 SEF
8K SEF
Other Paper Sizes
0.0 4.0 -4.0 0.2 mm
0702 Z-fold Position 2
Adjust the overall fold size (L) of the Z-foldout sheets when using the fold unit.
Press [ ] to increase and [ ] to reduce (L).
The mark indicates the leading edge (relative to the paper feed direction), and the mark indicates
the trailing edge.
6. Adjustment Settings for Operators
202
