6.5.3 THERMOFUSE

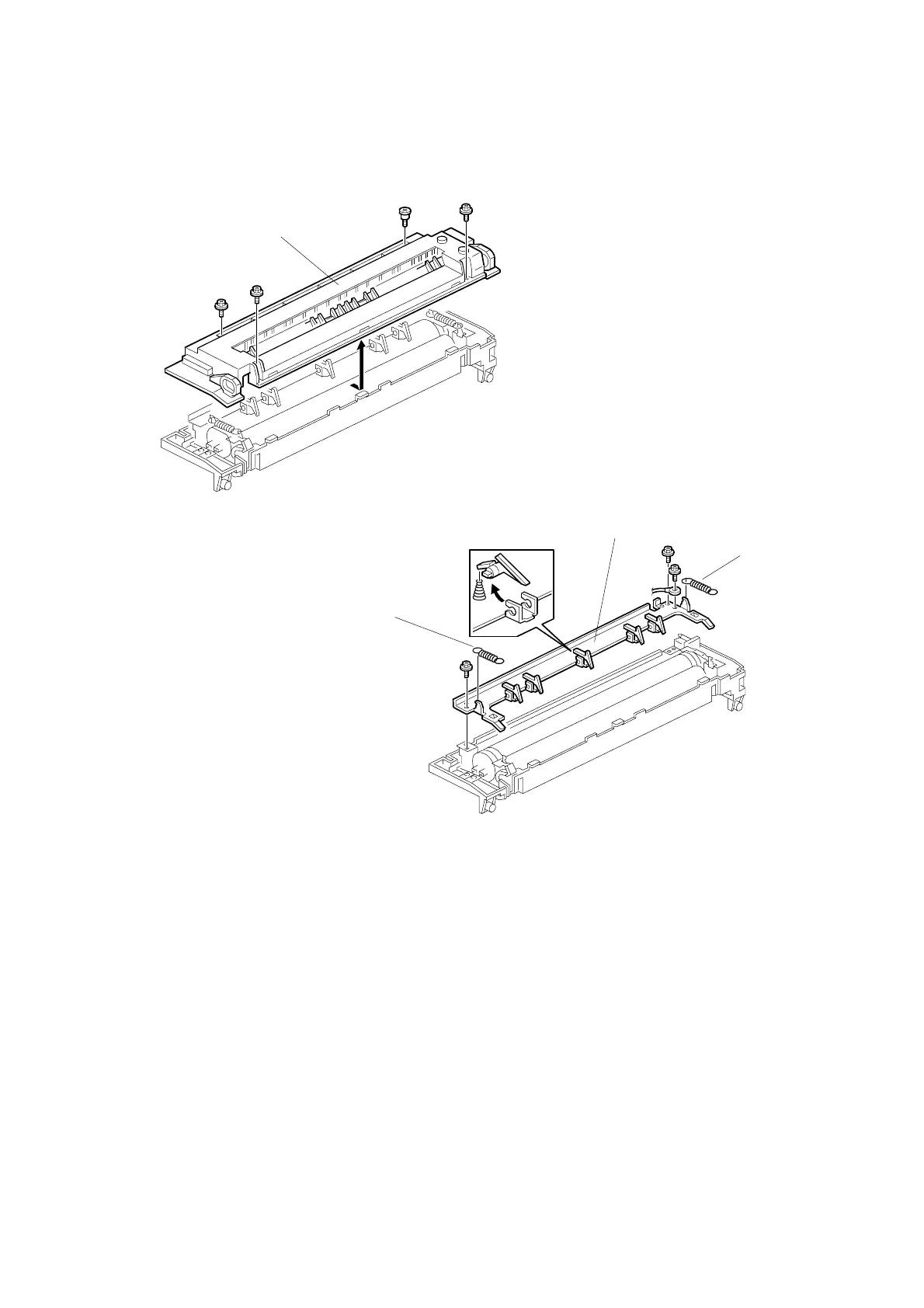

1. Remove the fusing unit. (☛ 6.5.1)
2. Remove the fusing upper cover [A] (4 screws).
3. Remove the pressure springs [B].
4. Remove the hot roller stripper bracket [C] (3 screws).
B027R503.WMF
B022R552.WMF
[A]
[B]
[C]
[B]
