Ricoh Russian-C2a - Sbcu Board

10 August, 2001 PCBS AND OTHER ITEMS
6-33
Replacement
Adjustment

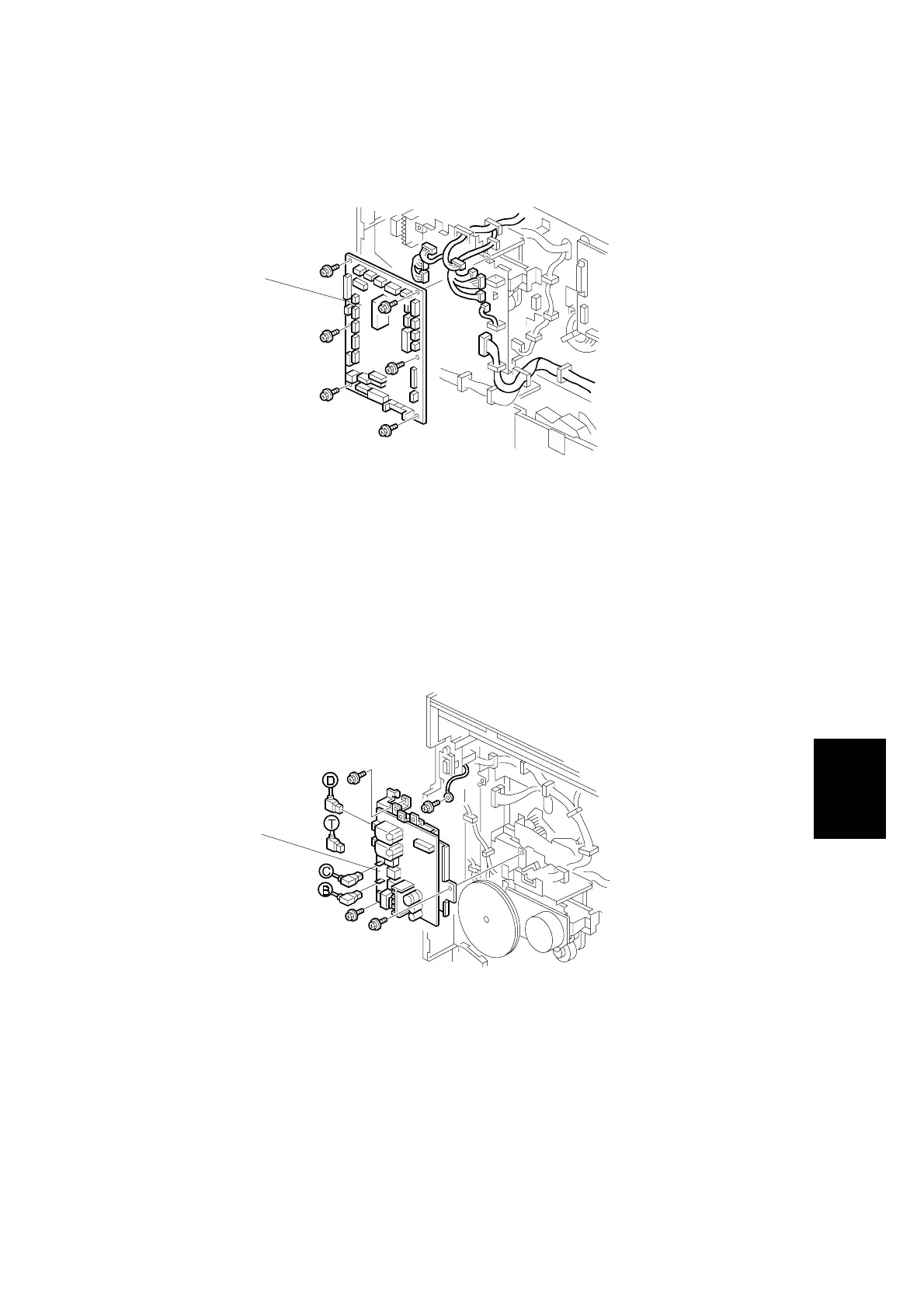

6.7.2 SBCU BOARD
1. Remove the rear cover. (☛ 6.6.3)
2. Remove the SBCU board [A] (All connectors, 6 screws).
6.7.3 POWER PACK
1. Remove the rear cover. (☛ 6.6.3)
2. Swing down the I/O board bracket. (☛ 6.6.5)
3. Remove the power pack [A] (5 connectors, 3 screws).
B027R708.WMF
B027R710.WMF
[A]
[A]
