6.5.6 PAPER EXIT SENSOR/PAPER OVERFLOW SENSOR
1. Remove the front upper cover [A] (1 screw, 1 peg).
2. Remove the exit cover [B].
NOTE: If the optional 1 bin tray unit and/or interchange unit have been
installed, remove them.
3. Replace the exit sensor [C] (1 connector).
4. Replace the overflow sensor [D] (1 connector).

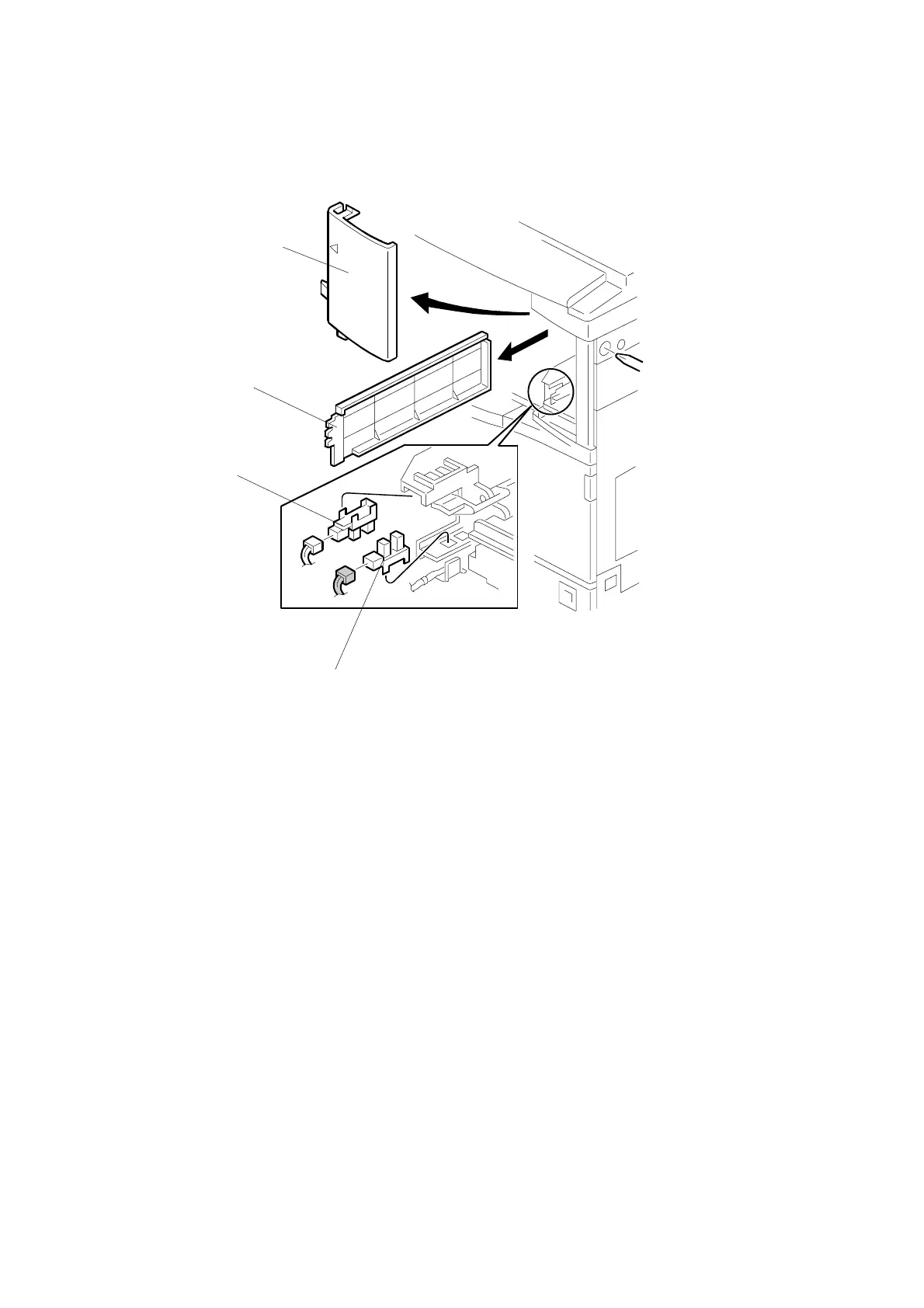

B027R601.WMF
[A]
[B]
[C]
[D]
