Ricoh Russian-C2a - Hot Roller and Fusing Lamp

FUSING/EXIT 10 August, 2001
6-20
6.5.4 HOT ROLLER AND FUSING LAMP
1. Remove the fusing unit. (☛ 6.5.1)
2. Remove the fusing upper cover. (☛ Thermostat.)
3. Remove the pressure springs. (☛ Thermostat.)
4. Remove the hot roller stripper bracket. (☛ Thermostat.)

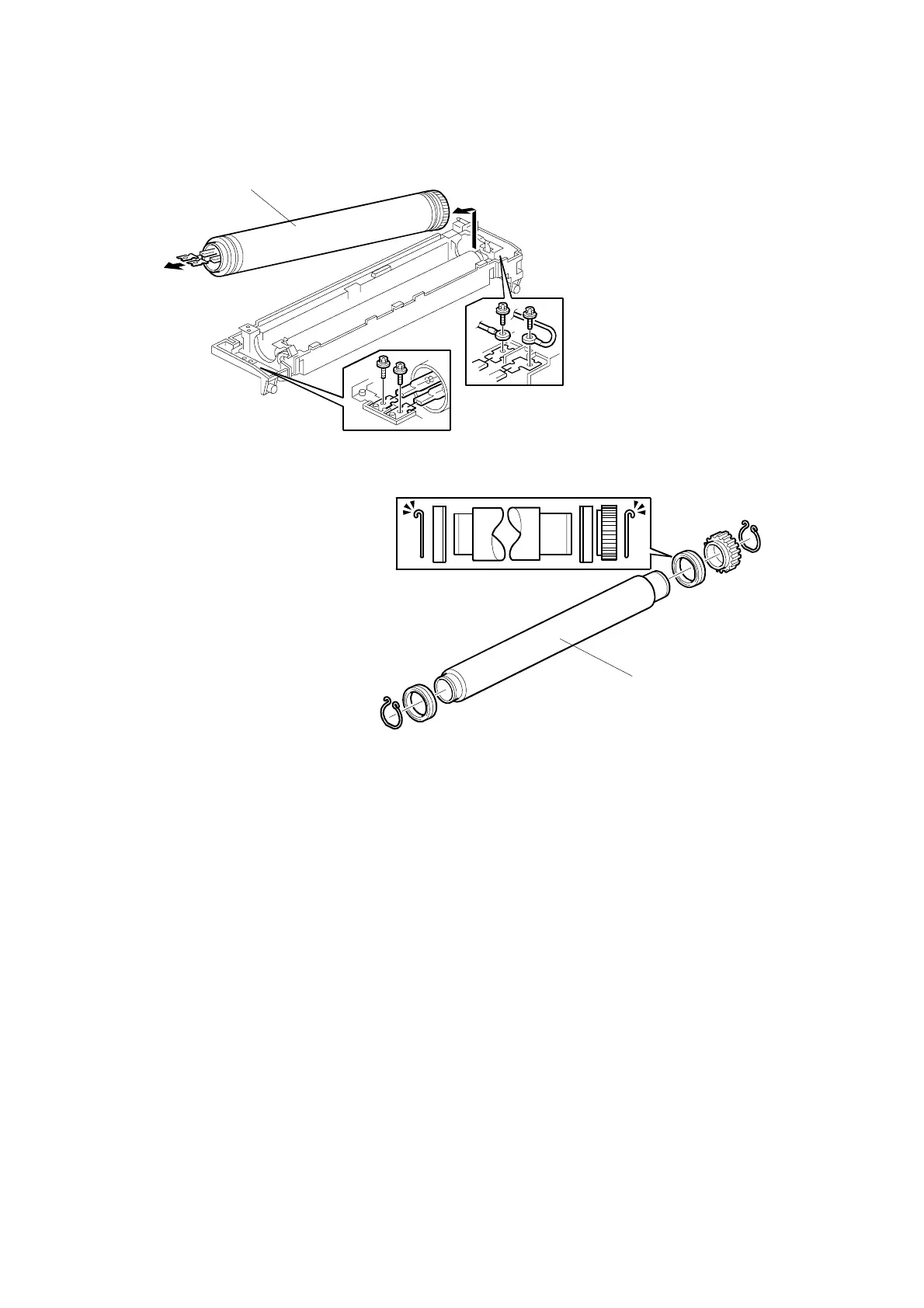

5. Remove the fusing lamps (4 screws) and hot roller assembly [A].
NOTE: Do not touch the surface of the fusing lamp with bare hands.
6. Replace the hot roller [B] (2 C-rings, 1 gear, 2 bushings).
NOTE: 1) Apply grease (Barrierta) to the inner surface of the bushing.
2) Before installing the new hot roller, peel off 3 cm (1 inch) from both
ends of the protective sheet on the new roller.
3) Do not touch the surface of the rollers.
4) When reinstalling the fusing lamp, secure the front screws first.
5) Be careful not to damage the surface of the hot roller.
B027R506.WMF
B022R505.WMF
[B]
[A]
