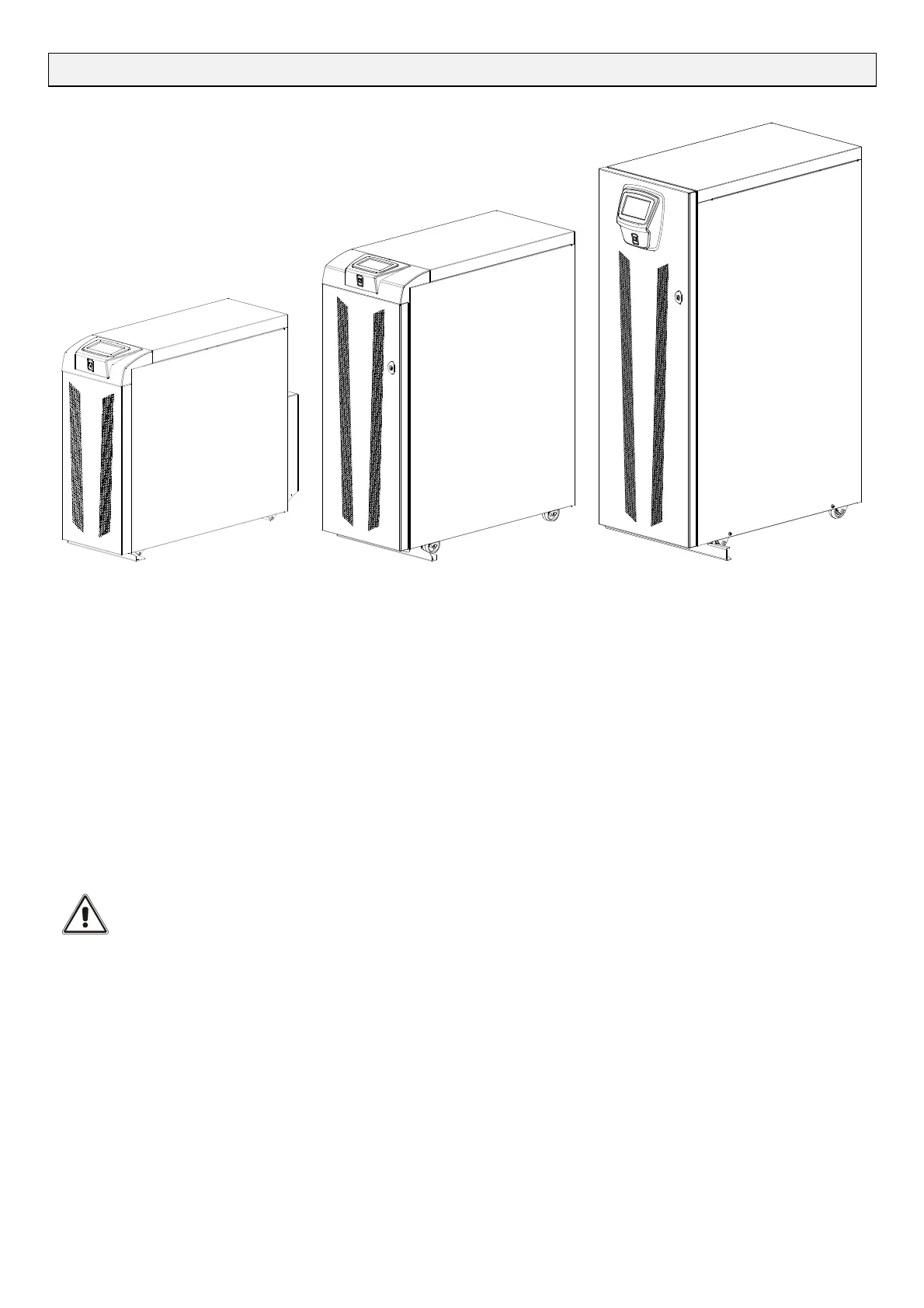

UPS MODELS
COMPACT - CPT
CTIVE -
CT XTEND - XTD
NOTE: some images contained in this document are for information purposes only and may not faithfully demonstrate the
parts of the product they represent.
UPS CABINET POSITIONING
When positioning, take into account that:
- the wheels are to be used for final positioning only. Suitable moving equipment must be used to transport the UPS near to the final
position.
- plastic parts and the door are not able to act as pushing points or handles.
- Ensure that there is sufficient free space in front of the UPS for user operation and maintenance (≈1.5 m).
- no objects should be placed on the upper part of the UPS.
WARNING!
The UPS must be positioned on a level floor.
Ensure that the floor can support the total weight of the system (refer to the table within “INSTALLATION
ENVIRONMENT”).
If side access isn’t available take care during the installation to leave sufficient cable to pull the UPS out for
maintenance purposes.
Do not place any objects on the top. Do not climb up on the UPS. The chassis isn’t designed to hold up the weight
of a person.
After positioning, if required, re-use the bracket which fastened the UPS to the pallet to anchor the UPS to the floor (refer to “POWER
CONNECTION INSTALLATION” for details).
