CONNECTION OF S3M DUAL INPUT

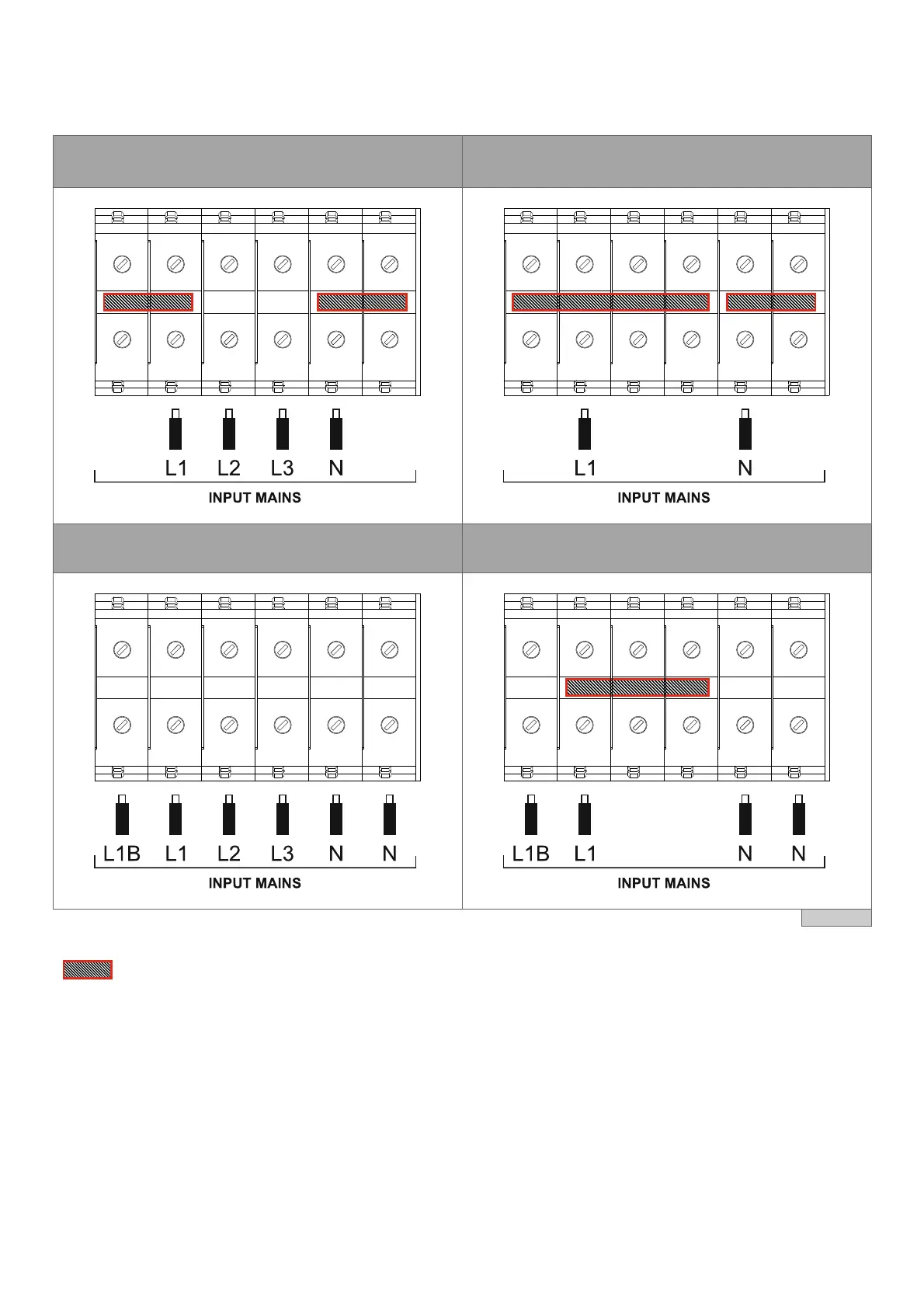

Follow the table below for the correct jumper configuration of the terminal blocks, depending on the power connection required.
S3M default configuration
(three phase input, with the bypass commoned with PH1)
S3M Single phase input, with a common bypass
S3M three phase input with a separated bypass line S3M Single phase input, with a separated bypass line
Table 23
Jumpers (for more details about their installation or removal, refer to "APPENDIX")
