Technical description of the burner
4.5 Packaging - Weight
• The burners are shipped in cardboard boxes with the maxi-
mum dimensions shown in Tab. B.
• The weight of the burner complete with packaging is indicat-
ed in Tab. B.
Tab. B
4.6 Overall dimensions

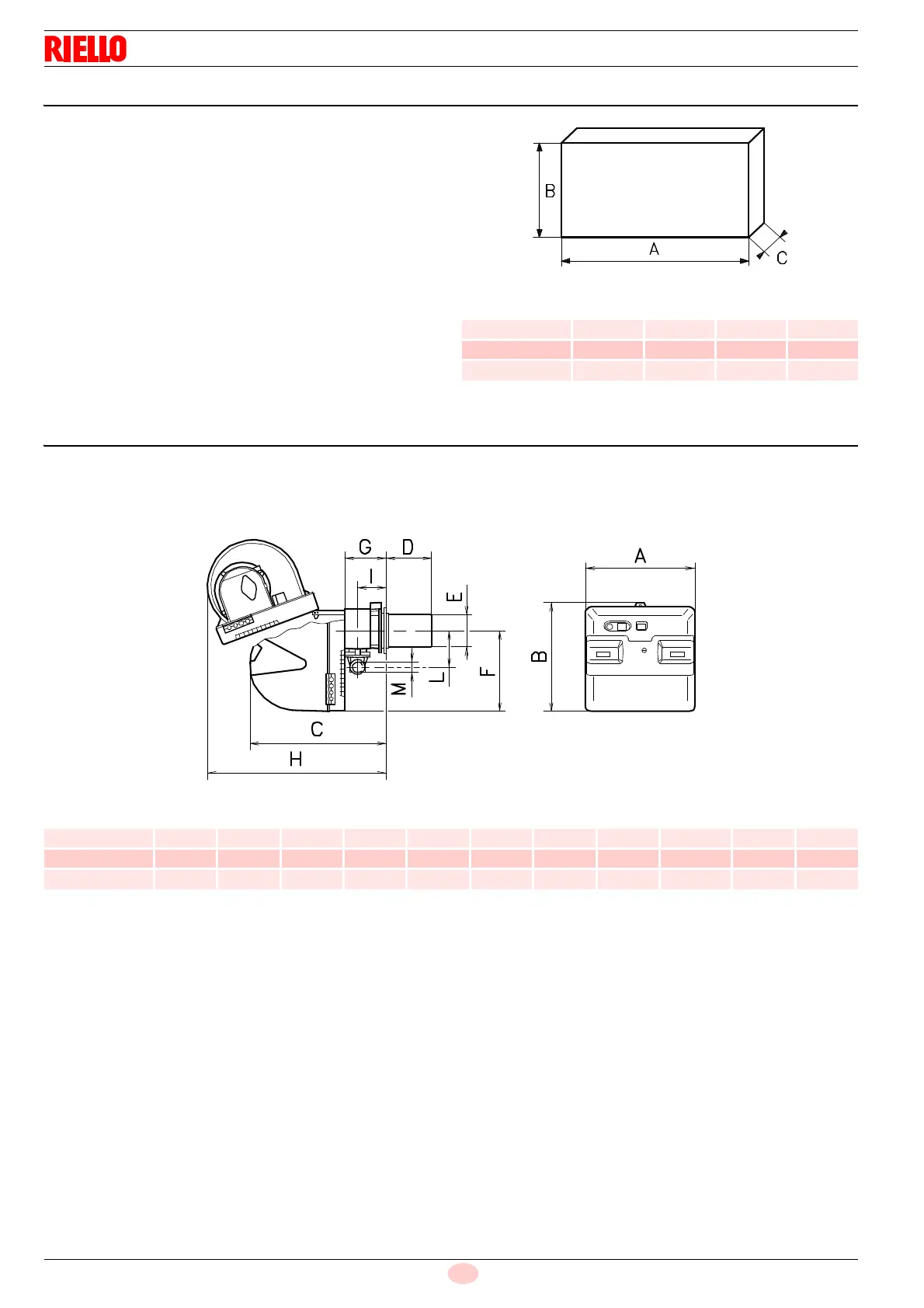

The maximum dimensions of the burner are given in Fig. 2.
Note that if you need to examine the combustion head, the burner
must be pulled backward on the slide bars and turned upward.
The maximum dimension of the burner, without the cover, when
open is given by measurement H.
Tab. C
mm A B C kg
RLS 28 872 550 540 43
RLS 38 872 550 540 45
RLS 50 872 550 540 46
D88
Fig. 1
Fig. 2
D495
mm ABCDEFGH I LM
RLS 28 476 474 580 191 140 352 164 810 108 168 1”1/2
RLS 38 476 474 580 201 152 352 164 810 108 168 1”1/2
RLS 50 476 474 580 216 152 352 164 810 108 168 1”1/2
