Maintenance
Flame sensor
Clean the glass cover from any dust that may have accumulated.
To remove the sensor 1)(Fig. 37) pull it outwards with force; it is
inserted only by pressure.
Flame inspection window
Clean the viewing port as required (Fig. 38).
Possible pump and/or coupling replacement
Carry out the fitting following the instructions in the Fig. 39.
Flame presence check
Check the level of the flame detection signal with the “Check
Mode” function from the flame control: LEDs from 2 to 6 indicate
the flame signal level, respectively.
See paragraph “LED lamps: burner operating status” on
page 33.
Check Mode
With burner flame on:
 hold the reset button on the flame control pressed for at
least 3 sec.;
 the button colour will change from green to yellow;
 each operating status signalling LED will be compared to
20% of the maximum brightness;
 press the reset button again (<0.5sec) to reset the standard
operation of the signalling LEDs.
Combustion
Carry out an analysis of the combustion flue gases. Significant
differences with respect to the previous measurements indicate
the points where more care should be exercised during
maintenance.
If the combustion values measured before starting maintenance
do not comply with applicable Standards or do not indicate
efficient combustion, consult the table below or contact our
Technical Support Service to implement the necessary
adjustments.
Tab. K
9.2.3 Safety components
The safety components must be replaced at the end of their life
cycle indicated in Tab. L. The specified life cycles do not refer to
the warranty terms indicated in the delivery or payment
conditions.
Tab. L

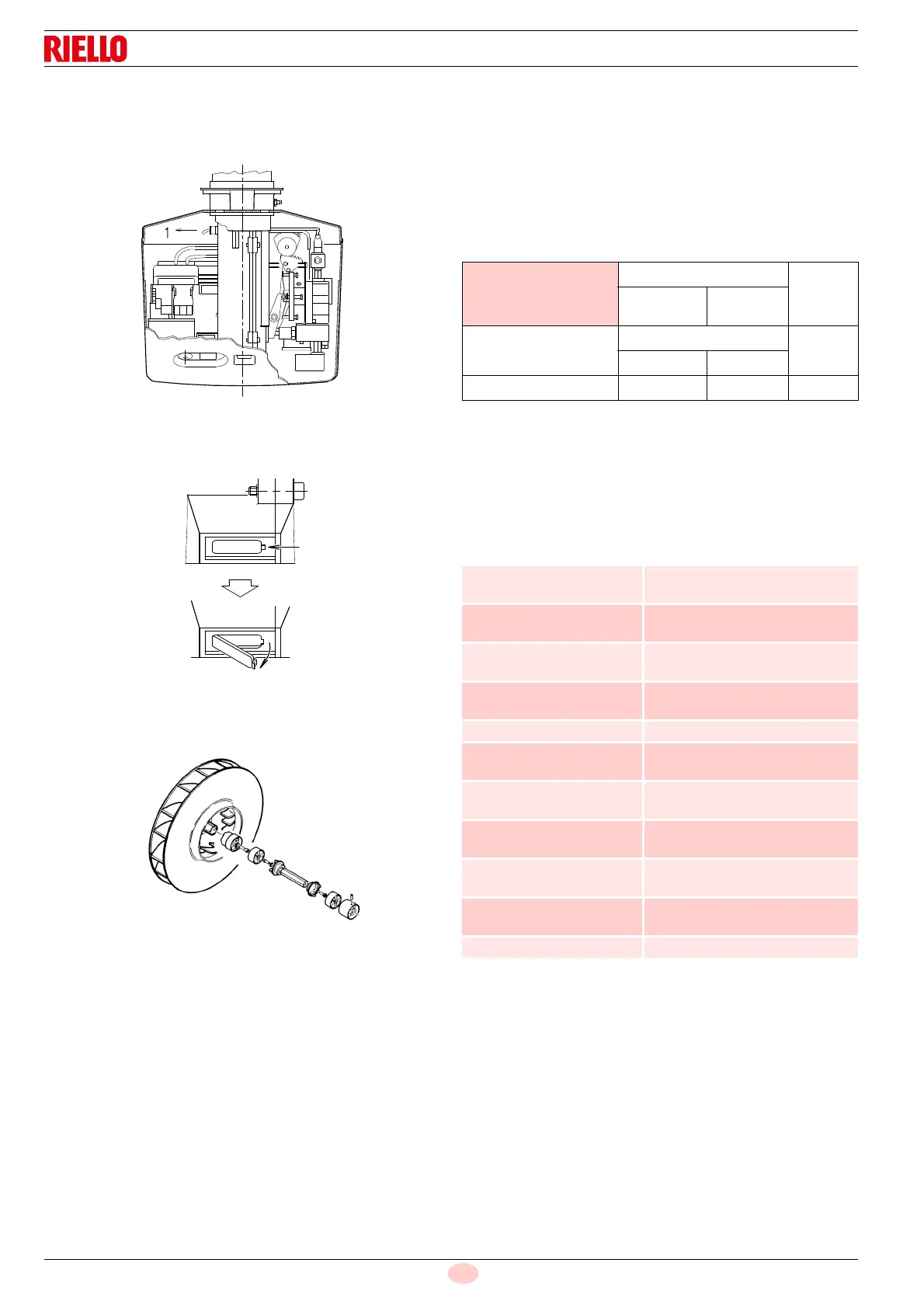

Fig. 37
D874
Fig. 38
D484
Fig. 39
D1108
EN 267
Air excess
CO
Max. output
  1,2
Min. output
  1,3
Theoretical max CO
2
0 % O
2
CO
2
% Calibration
mg/kWh
 = 1.2  = 1.3
15.2 12.6 11.5  100
Safety component Life cycle
Flame control
10 years or 250,000
operation cycles
Flame sensor
10 years or 250,000
operation cycles
Gas valves (solenoid)
10 years or 250,000
operation cycles
Pressure switches
10 years or 250,000
operation cycles
Pressure adjuster 15 years
Servomotor (electronic
cam) (if present)
10 years or 250,000
operation cycles
Oil valve (solenoid)(if
present)
10 years or 250,000
operation cycles
Oil regulator (if present)
10 years or 250,000
operation cycles
Oil pipes/ couplings
(metallic) (if present)
10 years
Flexible hoses (if present)
5 years or 30,000 pressurised
cycles
Fan impeller 10 years or 500,000 start-ups
