INSTALLATION
12
9
The product must be stored of according to the regulations
in force.
2.5
Handling and removal of the packing
9
Before unpacking, personal protective clothing should be
worn and used transport means and tools suitable for the
size and weight of the unit.
9
Check refrigerant leak inside the packaging with a leak de-
tector suitable for the refrigerant used in the system.If a gas
leak is detected, probably the refrigerant circuit is damaged
and the product can't be installed; finally call Technical
Service R.
Product handling can also be done manually by grasping the
handles provided on the packaging.

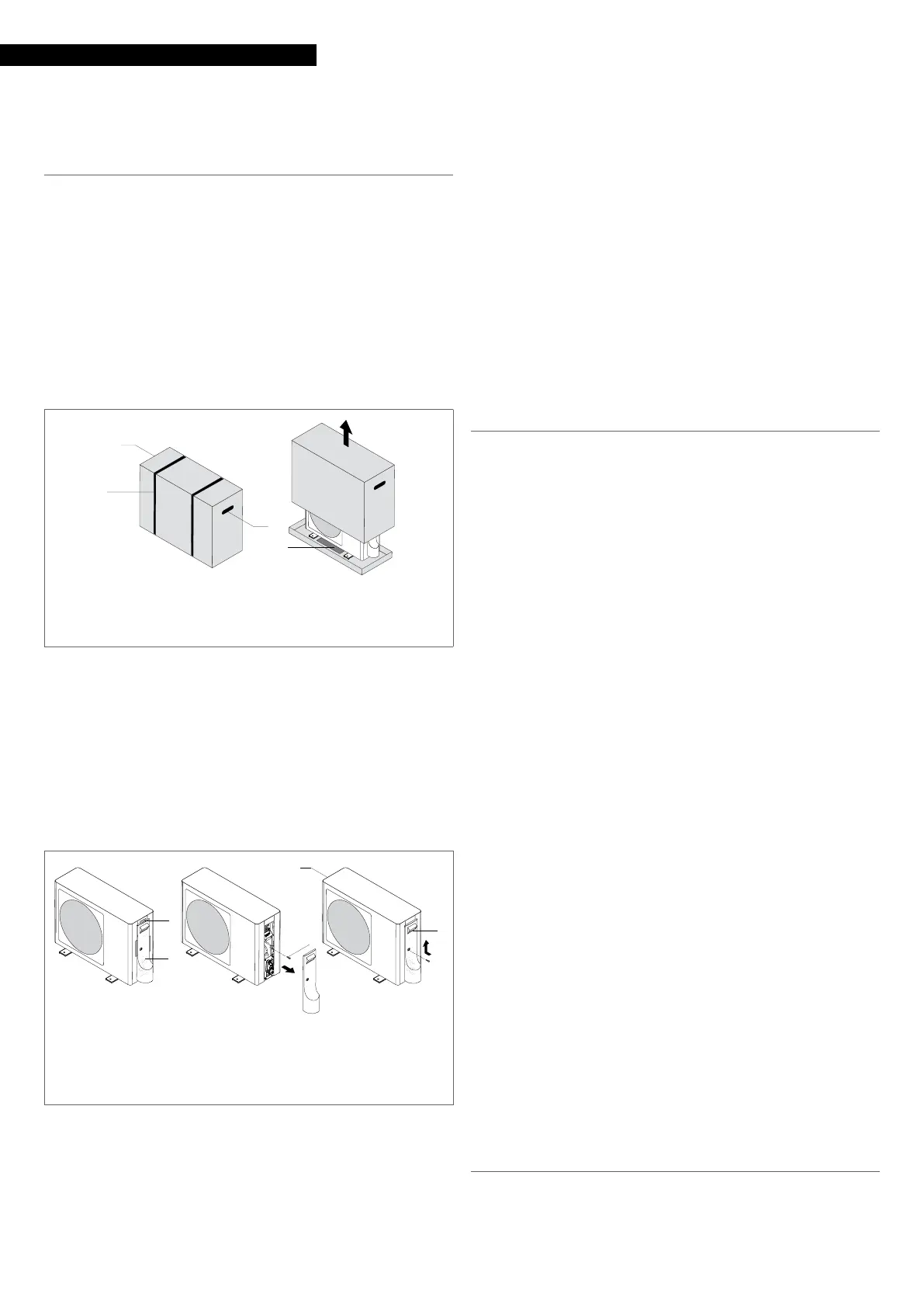

1 Handles
2 Strapping bands
3 Document envelope and material supplied as kit
2
1
1
3
Follow the below instructions for packing removal and product
handling:
— transport the equipment in the installation place
— cut strapping bands
— lift and remove the cardboard pack
The unit is supplied with the connections cover fixed to the unit
with adhesive tape to avoid damage during transport and han-
dling operations.
Before handling operations it is necessary to fix the connections
cover to the unit:
1 Adhesive tape
2 Connections cover
3 Fixing screw
4 Handles
1
2
3
4
4
— remove the adhesive tape
— unscrew the connections cover fixing screw from the unit
— position the connections cover
— Reassemble the fixing screws.
— handle the unit by grasping the handles provided.
— remove the document envelope
9
In manual operation it is compulsory to respect always the
maximum weight per person provided for by the national
laws and standards.
9
Handle with care
9
The equipment must always be handled vertically
9
Do not tilt the equipment over 15°
9
The unit’s weight is concentrated on the compressors side
(connection covering side).
0
The packing material must not be disposed of in the sur-
rounding environment and must be kept out of children
reach, as it can be dangerous. It must be disposed of ac-
cording to the regulations in force.
2.6
Place of installation
The location of R AARIA START devices must be determined
by the system's designer or by another competent person, and
must take into account the technical requirements, as well as
any current local regulations that require specific permits to be
obtained. (e.g.: zoning, architectural, environmental protection,
etc.).
It is therefore recommended to obtain all the necessary permits
before installing the device.
R AARIA START is designed for outdoor installation.
Avoid:
— positioning the unit in air shafts and/or basement window
wells
— any obstacles or barriers that will cause the expelled air to
recirculate
— locations with aggressive or explosive atmospheres or with
inflammable fluids
— confined locations in which the device's sound levels
might be compounded by reverberations or resonances
— proximity to bedrooms and rooms for resting
— positioning in corners where dust, leaves, or any other
materials typically accumulate, which could compromise
the device efficiency by obstructing the airflow
— situations in which the air expelled from the device might
enter the habitation through doors or windows, thus cre-
ating an inconvenience for the people inside
— situations in which the air expelled from the device will
encounter resistance from opposing winds
— direct exposure to sunlight and proximity to heat sources
9
Avoid placing the unit less than 3 metres away from radio
and video systems.
9
If the unit is installed in a windy location, fit an anti-wind
grille to protect the fan and check the correct functioning of
the unit.
9
Decide where to place the unit considering the length of
cooling lines and the maximum difference of height al-
lowed between the devices.
2.7
Recommended distances
The distances for the device installation and maintenance are
shown in the figure. The indicated spaces are necessary in order
to prevent the airflow from being blocked, as well as to allow
normal cleaning and maintenance operations to be carried out.
