Riello AARIA START - Unit Layout

GENERAL INFORMATION
6

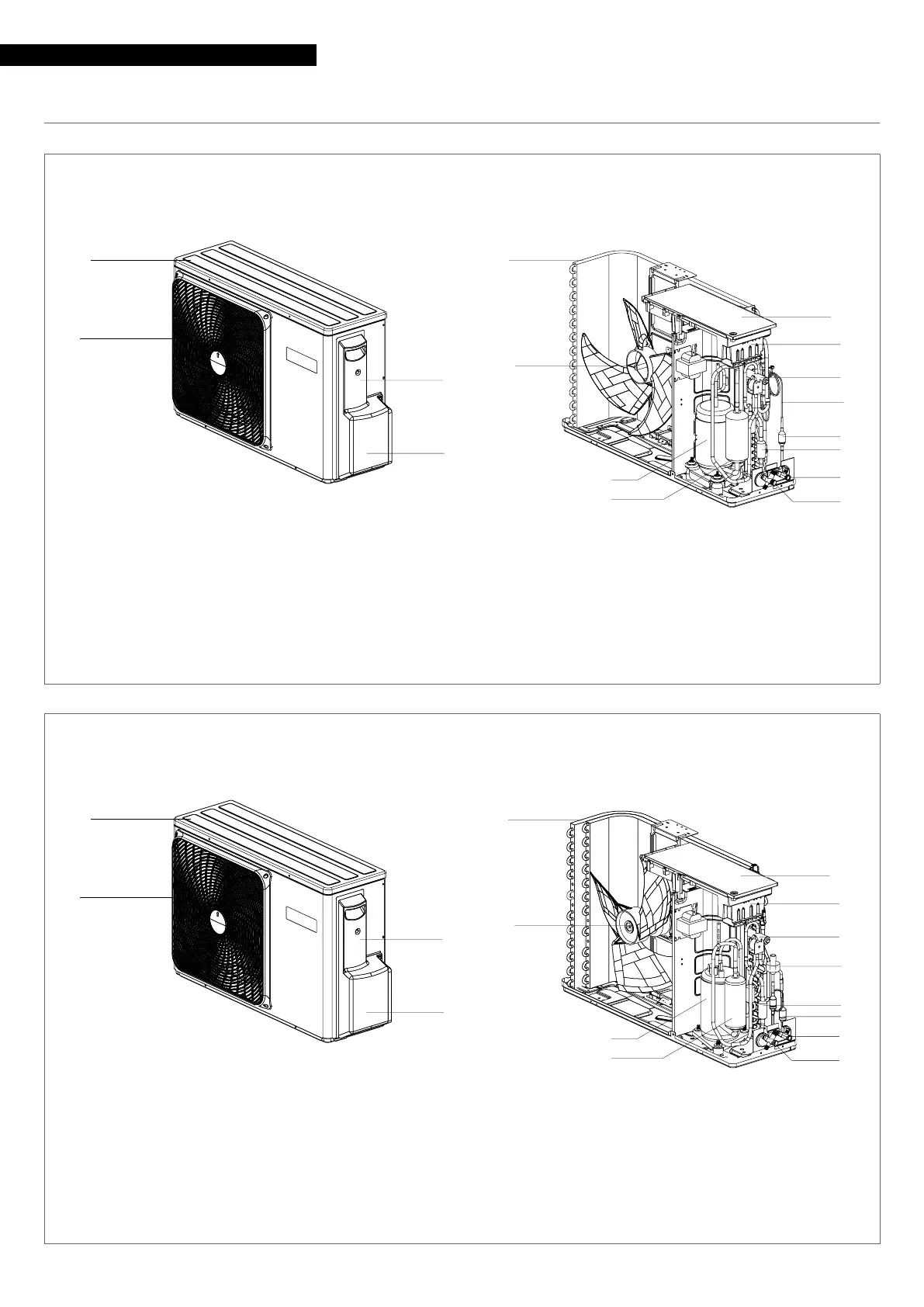

1.6 Layout
MODEL 25
1 Upper panel
2 Fan protection grille
3 Connections cover
4 Handle for handling
5 Heat exchanger
6 Electric fan
7 Rotary compressor
8 Intake separator
9 Gas line connection
10 Liquid line connection
11 Silencer
12 Filter
13 Capillary tube
14 Cycle reversal valve
15 Terminal board for electric connec-
tions
16 Electric panel cover
1
2
3
4
5
6
7
8
9
10
11
12
14
15
16
13
MODEL 35
1 Upper panel
2 Fan protection grille
3 Connections cover
4 Handle for handling
5 Heat exchanger
6 Electric fan
7 Rotary compressor
8 Intake separator
9 Gas line connection
10 Liquid line connection
11 Silencer
12 Filter
13 Electronic expansion valve
14 Cycle reversal valve
15 Terminal board for electric connec-
tions
16 Electric panel cover
1
2
3
4
5
6
7
8
9
10
11
12
14
15
16
13
