GENERAL INFORMATION
7

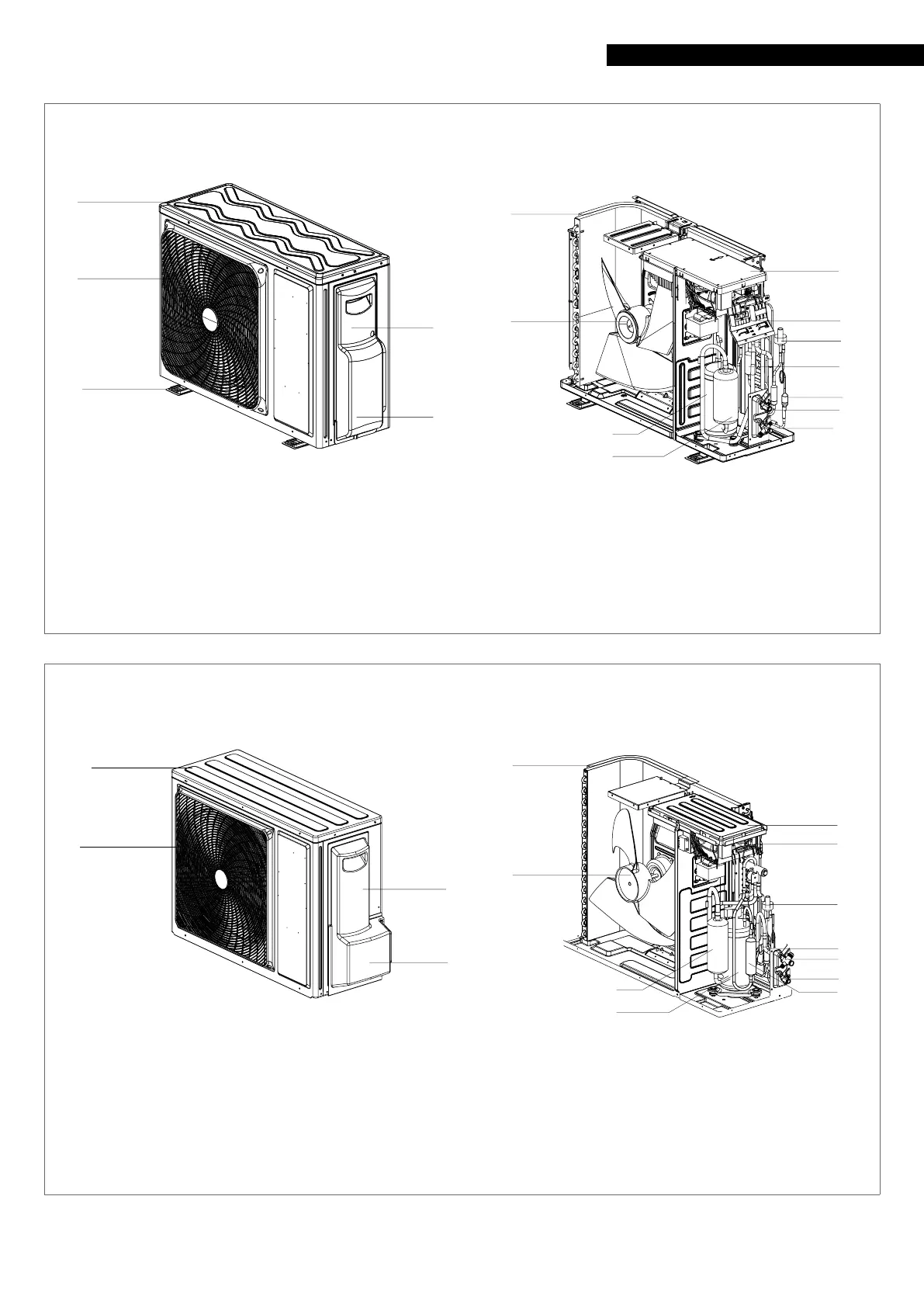

MODEL 50
1 Upper panel
2 Fan protection grille
3 Support bracket
4 Connections cover
5 Handle for handling
6 Heat exchanger
7 Electric fan
8 Rotary compressor
9 Intake separator
10 Gas line connection
11 Liquid line connection
12 Filter
13 Silencer
14 Electronic expansion valve
15 Terminal board for electric connec-
tions
16 Electric panel cover
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
MODEL 70
1 Upper panel
2 Fan protection grille
3 Connections cover
4 Handle for handling
5 Heat exchanger
6 Electric fan
7 Intake separator
8 Rotary compressor
9 Silencer
10 Liquid line connection
11 Gas line connection
12 Filter
13 Electronic expansion valve
14 Terminal board for electric connec-
tions
15 Electric panel cover
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
