M ULTIPLE E XPANSIONS

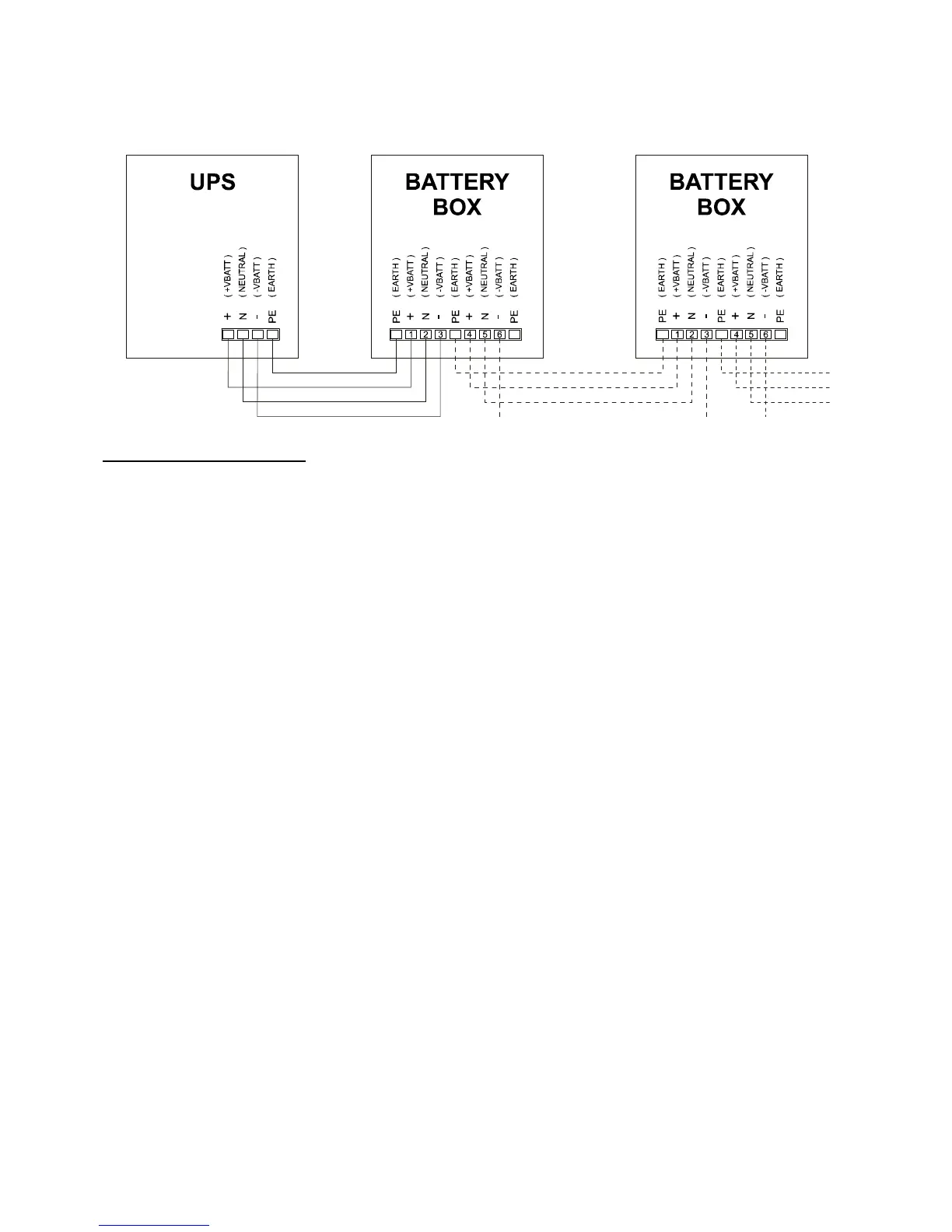

Several Battery Boxes can be connected in a cascade to ensure prolonged autonomy. The connections should be made as
shown here below:
WARNING (only for single UPS): No more than one UPS may be connected to each Battery Box or to more than one
Battery Box connected in a cascade.
S ETTING THE R ATED B ATTERY C APACITY – S OFTWARE C ONFIGURATION
Having installed one or more BATTERY BOXES, the UPS must be set up to update the rated capacity value (total Ah of
batteries inside the UPS + external batteries).
To perform this operation, use the dedicated configuration software.
