Riello RLS 28 - Firing Rates

11
20148646
GB
Technical description of the burner
4.8 Firing rates
The burners RLS 28 - 38 - 50 can work in two ways: one-stage or
two-stage.
The MAXIMUM OUTPUT is chosen within area A (and B for RLS
50)(Fig. 2). To use also area B (RLS 50), the combustion head
has to be pre-calibrated as shown on page 19.
The MINIMUM OUTPUT must not be lower than the minimum
limit of the diagram:
RLS 28 = 100 kW = 8.5 kg/h
RLS 38 = 116 kW=9.8 kg/h
RLS 50 = 145 KW = 12.3 kg/h
ATTENTION
The firing rate value (Fig. 2) has been obtained
considering an ambient temperature of 20 °C, an
atmospheric pressure of 1013 mbar (approx. 0 m
a.s.l.), and with the combustion head adjusted as
shown on page 21.

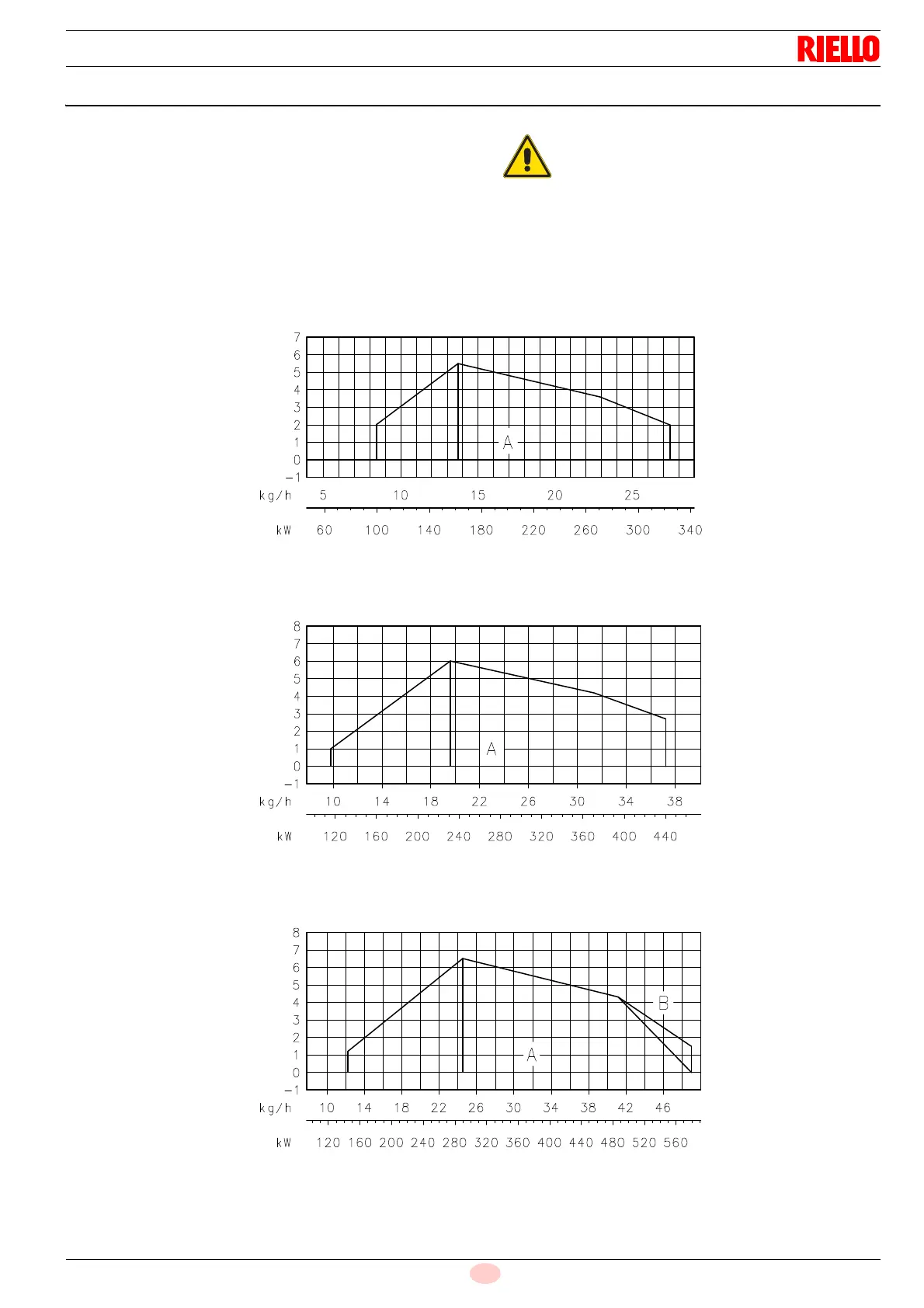

Pressure in the chamber
pressure - mbar
Thermal power - kW
Fig. 2
RLS 28
D1120
Pressure in the chamber
pressure - mbar
Thermal power - kW
RLS 38
Pressure in the chamber
pressure - mbar
Thermal power -
kW
RLS 50
