Riello RLS 28 - Servomotor (LKS 210

20148646
16
GB
Technical description of the burner
4.13 Servomotor (LKS 210 ...)
Important notes
 All interventions (assembly and installation operations,
assistance, etc.) must be carried out by qualified personnel.
 Before modifying the wiring in the connection area of the
servomotor, fully disconnect the burner control device from
the power supply (omnipolar separation).
 To avoid the risk of electrocution, protect the connection
terminals in a suitable manner and correctly fix the cover.
 Check the wiring is in order.
 Falls and collisions can negatively affect the safety
functions. In this case, the servomotor must not be operated,
even if it displays no evident damage.
Assembly notes
• Check the relevant national safety standards are respected.
• When assembling the servomotor and connecting the
damper, the gears can be disengaged by means of a lever,
allowing the drive shaft to be easily adjusted in both
directions of rotation.
Technical data
Tab. E
ATTENTION
To avoid accidents, material or environmental
damage, observe the following instructions!
Avoid opening, modifying or forcing the
actuators.
MODEL LKS 210 - 10
Operating voltage 200-240V - 50/60 Hz
Switching capacity
of auxiliary and limit switches
10 A/ 250V
Opening time 0-90°, 5 sec.
Firing angle 0 - 90°
Torque 1.5 Nm
Rotation direction Anticlockwise
Weight 0.7 kg
Protection level IP 44

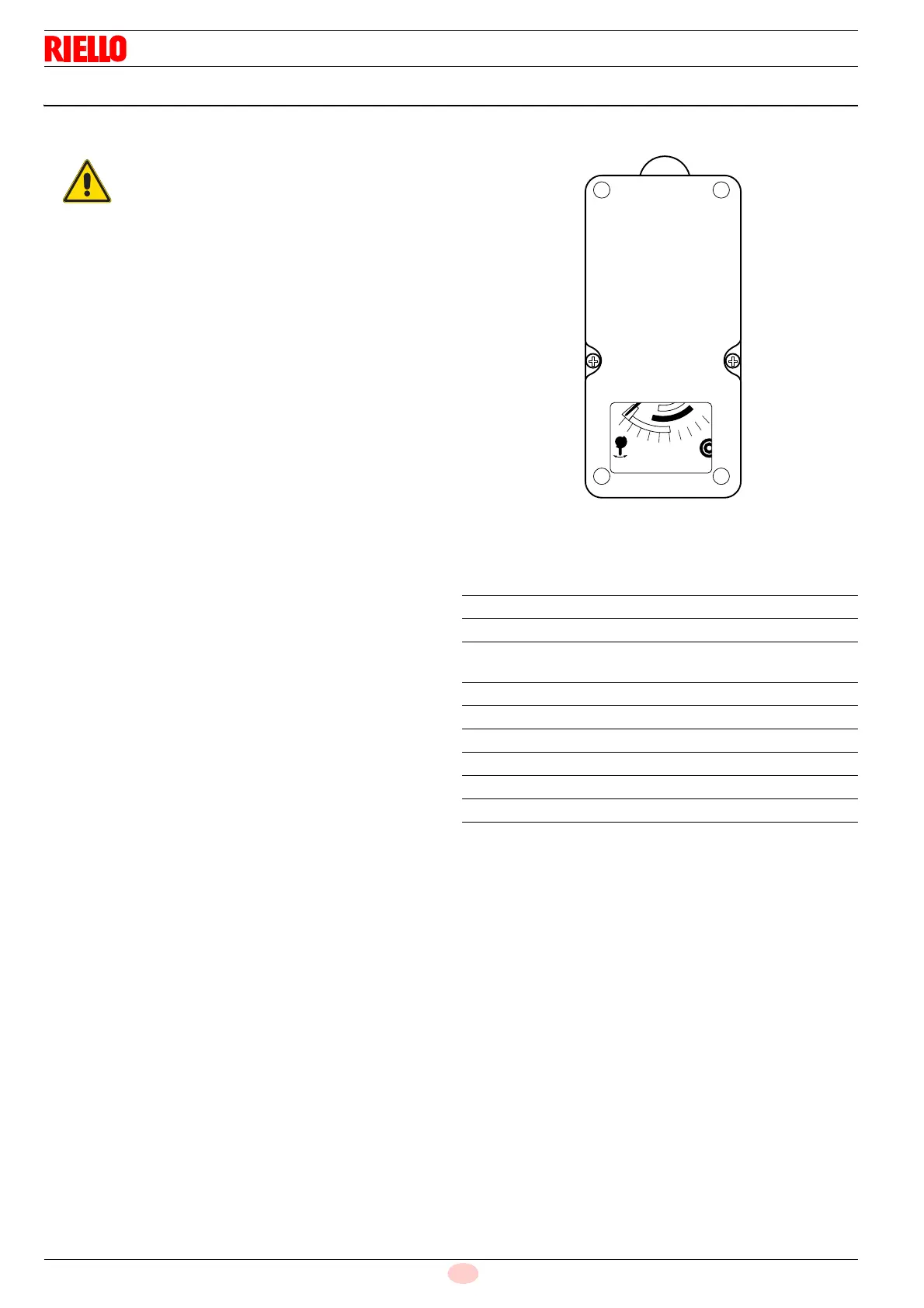

Fig. 7
MV2
0
10
20
30
40
50
60
70
80
90
–
+
S9697
