4.10.1 Adjustment at the maximum output (for gas)
The adjustment at the maximum output requires the disassembly
of the 6 nozzles as indicated in Fig. 23.
Proceed as follows:
 disassemble from the burner of the complete combustion
head assembly;
 unscrew the screws and remove the 8 tangential tubes 1);
 unscrew the 4 screws and disassemble the diffuser disc 2);
 unscrew and remove the 6 nozzles 3);
Re-assemble with reverse procedure, re-placing all the burner
components as originally.
Only for RLS 400/E model
WARNING
To achieve operation at minimum output, the com-
bustion head’s gas pipes must be adjusted to hole
position 5 (Fig. 22).

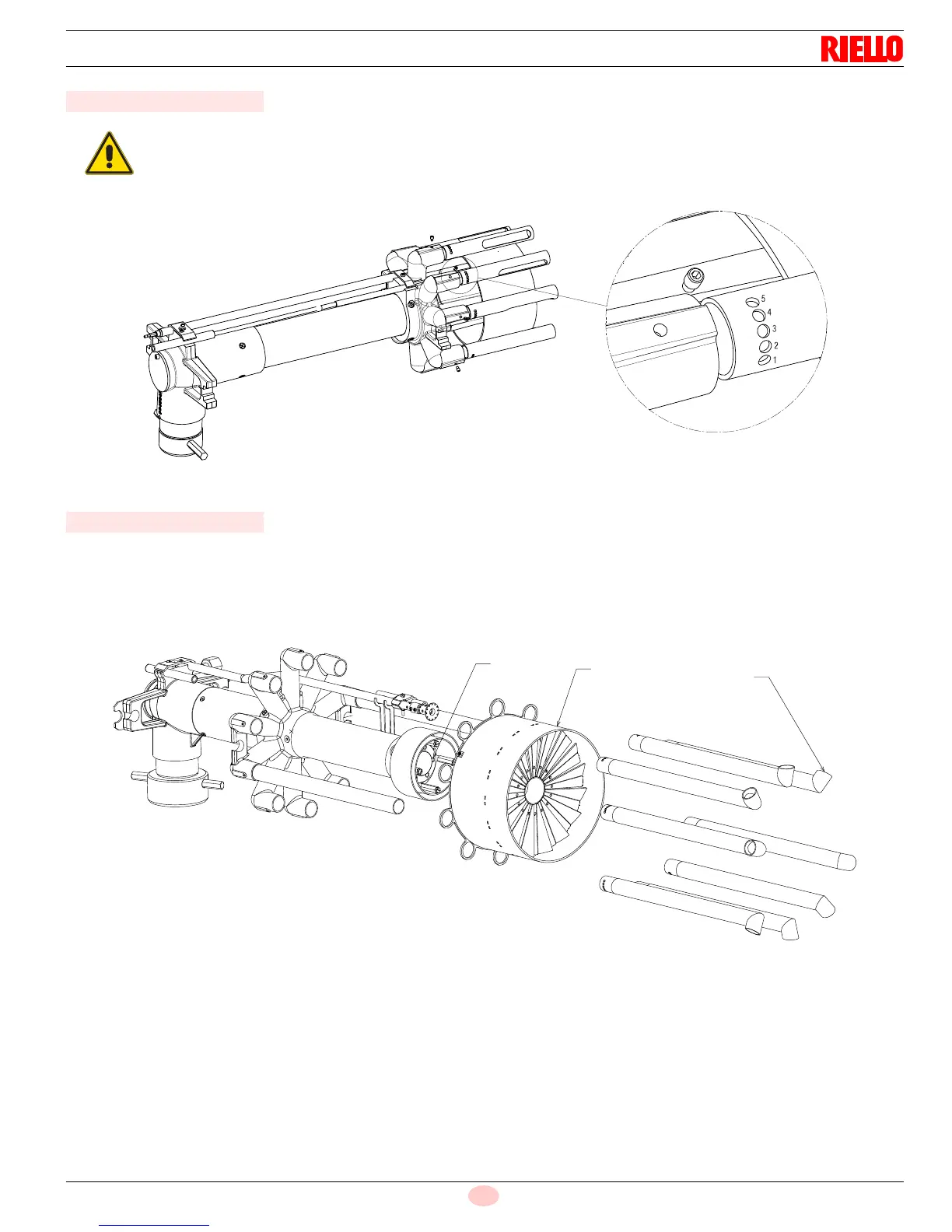

Fig. 22
D3418
Only for RLS 650/E model
1
2
3
D10479
Fig. 23
