Riello RS 70 E - Maximum Dimensions

20068428
10
GB
Technical description of the burner
4.6 Maximum dimensions

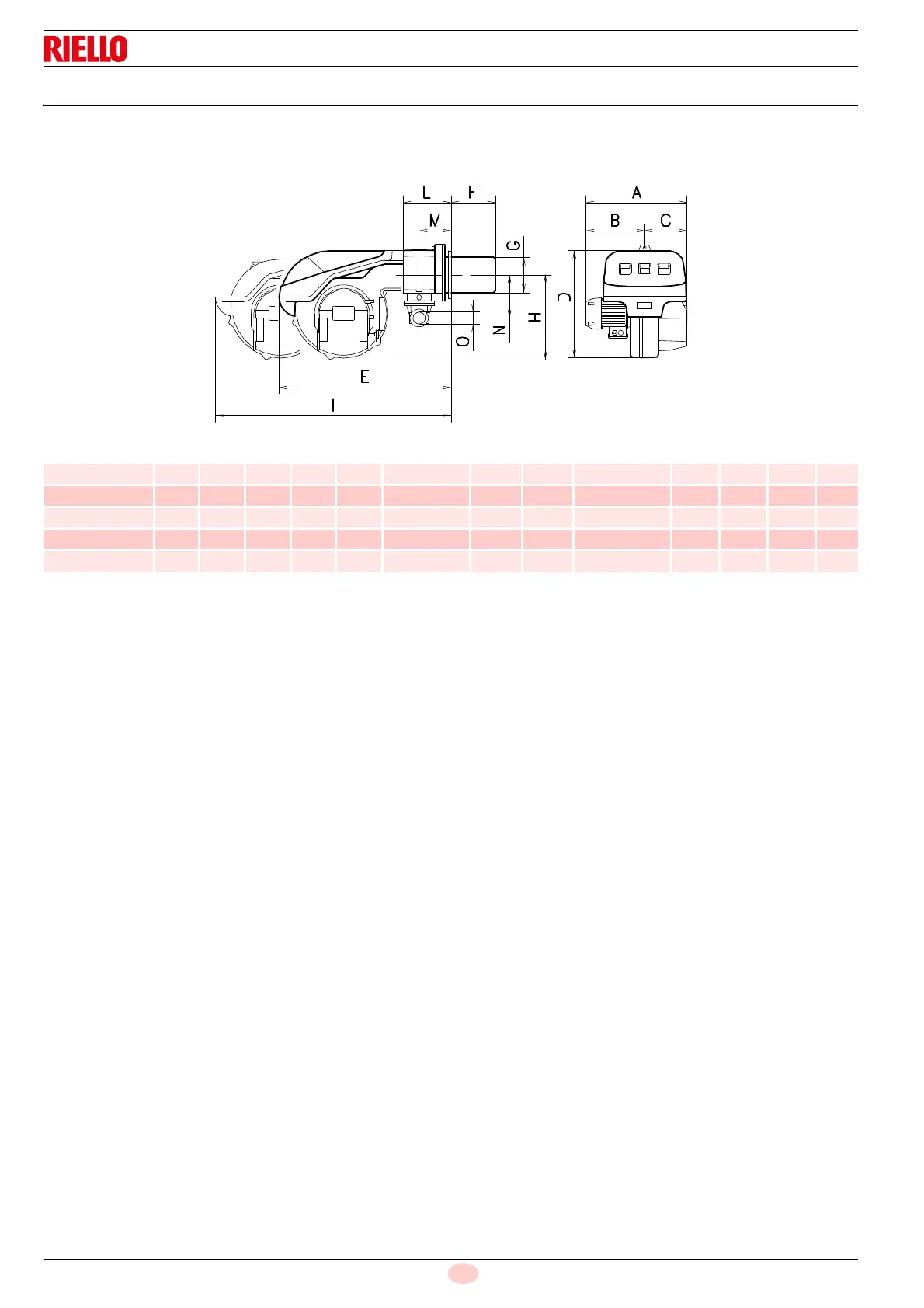

The dimensions of the burner are shown in Fig. 1.
Bear in mind that inspection of the combustion head requires the
burner to be opened and the rear part drawn back on the guides.
The dimensions of the open burner are indicated by position I.
Tab. H
(1)
Blast tube: short-long
Fig. 1
D731
mm ABCDE
F
(1)
GH
I
(1)
LMNO
RS 70/E 511 296 215 555 840 250-385 179 430 1161-1296 214 134 221 2”
RS 100/E 527 312 215 555 840 250-385 179 430 1161-1296 214 134 221 2”
RS 130/E 553 338 215 555 840 280-415 189 430 1161-1296 214 134 221 2”
RS 190/E 675 370 305 555 872 372-522 222 436 1328-1478 230 150 223 2”
RS 250/E MZ 732 427 305 555 872 370-520 222 436 1322-1467 230 150 264 2”
