Rigol DG1012 Service Guide

RIGOL Chapter 1 Disassembly and Assembly
DG1000 Service Guide
1-2
Instrument Appearance
The figure below is the appearance drawing of DG1000 series dual-channel
function/arbitrary waveform generator. You need to get a basic understanding of the
main parts of the instrument before disassembling and assembling the instrument.
When disassembling or assembling the instrument, please follow the procedures and
take care not to scratch the surfaces of the instrument.
The recommended disassembly procedures are as follows:
Disassemble the Handle  Disassemble the Rear Cover  Disassemble the Metal
Enclosure  Disassemble Rear BNC Boards  Disassemble the Power Supply Board
 Disassemble the Main Board  Disassemble the Front Panel and LCD 
Disassemble the Keypad Board

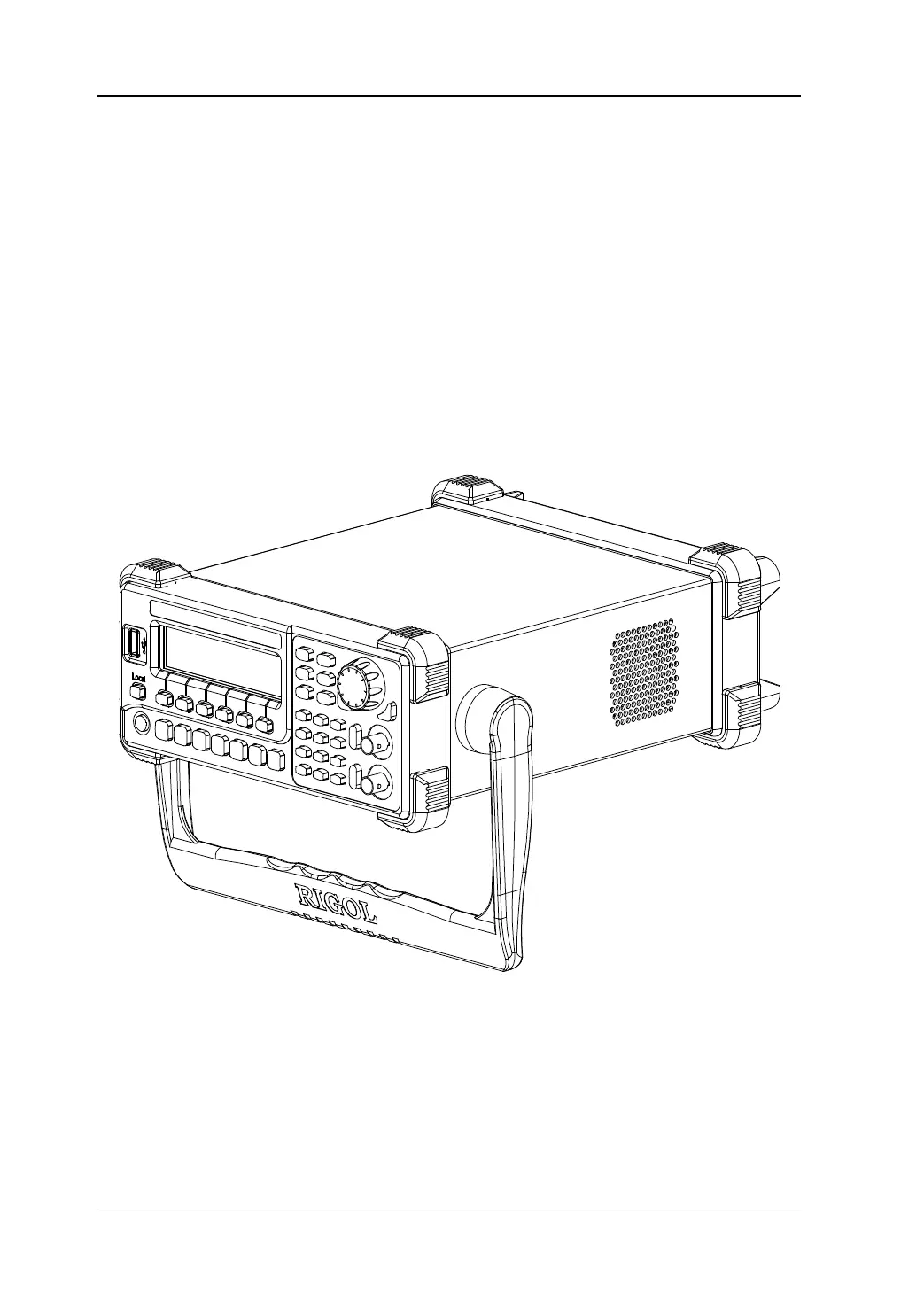

Figure 1-1 DG1000 Appearance Drawing

Rigol DG1012 Specifications

General

Brand	Rigol
Model	DG1012
Category	Portable Generator
Language	English
