RIGOL Chapter 1 Disassembly and Assembly
DG1000 Service Guide
1-8
Disassemble the Main Board

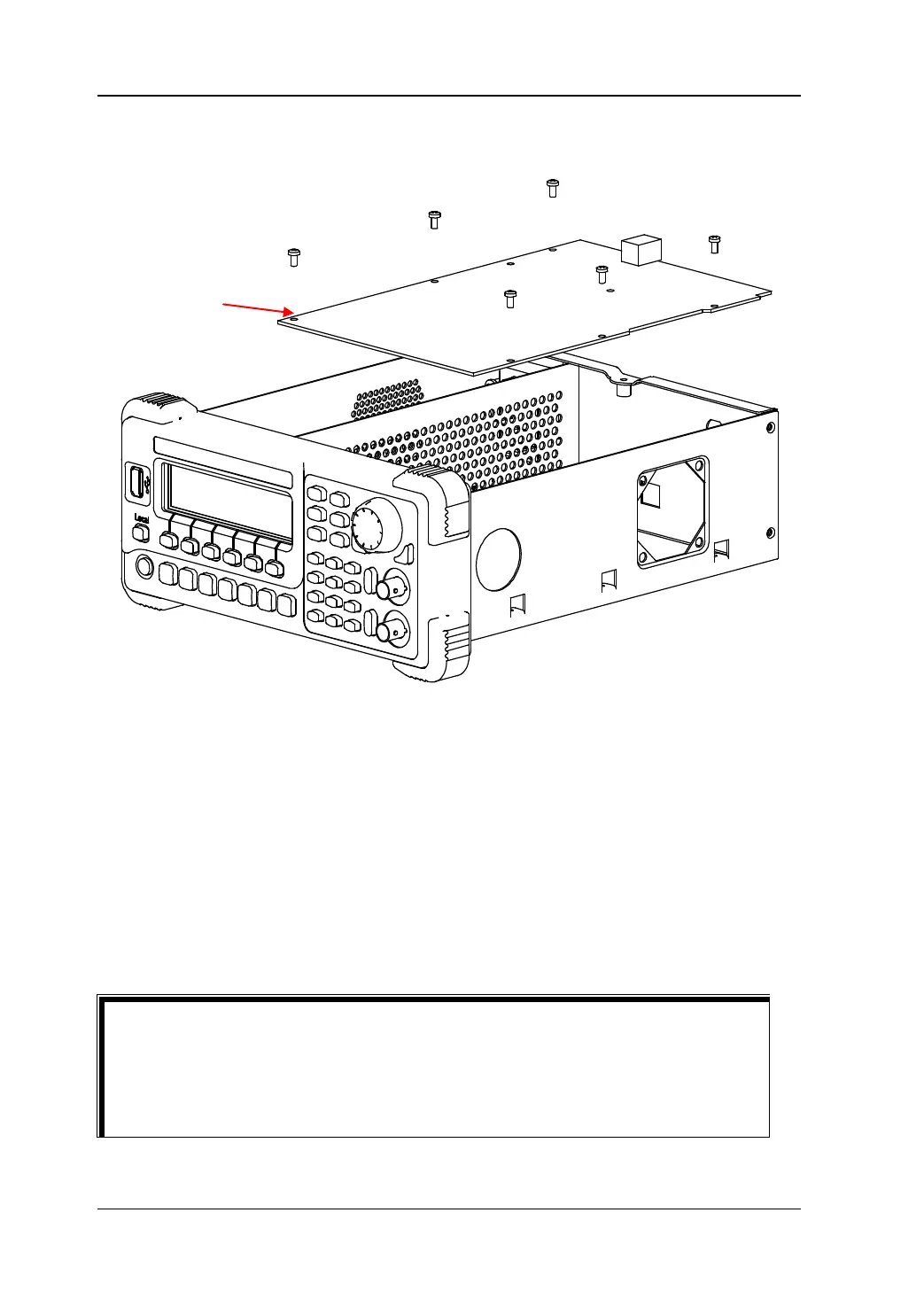

Figure 1-7 Disassemble the Main Board
Part Description:
① 6 screws (M3×6 torx pan head combination screws, used for fastening the main
board to the metal chassis)
Disassembly Steps:
1. Disconnect the wires on the main board.
2. Remove 6 screws (①) that fasten the main board to metal chassis using the T10
screwdriver.
3. Take out the main board.
Note:
Disassembling the main board is not recommended unless otherwise required.
Before disconnecting wires on the main board, remember the connection
methods and positions of the wires to avoid incorrect connection when
assembling.
Main Board
①
①
①
①
①
①
