RIGOL Chapter 1 Disassembly and Assembly
DG1000 Service Guide
Disassemble the Rear Cover

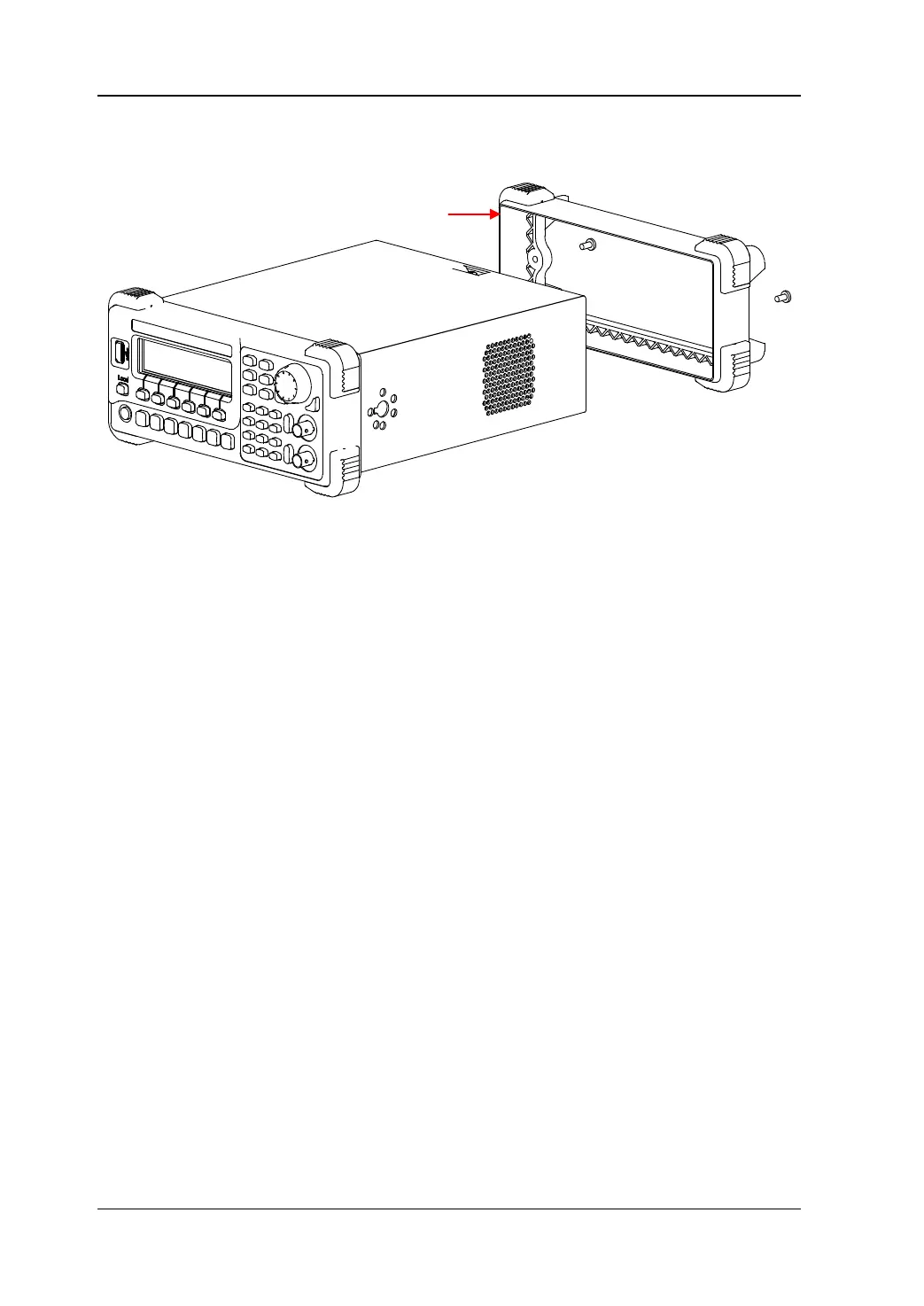

Figure 1-3 Disassemble the Rear Cover
Part Description:
① 2 screws (M4×8 torx pan head screw, used for fastening the rear cover to the
metal chassis)
Disassembly Steps:
1. Use the T20 screwdriver to remove 2 screws (①) that fasten the rear cover to the
metal chassis.
2. Take off the rear cover gently (Note: Pay attention to the direction of the rear
cover when assembling it, do not turn the rear cover upside down).
①
①
To Next Page
