Chapter 2 Troubleshooting&Maintenance RIGOL
DG1000 Service Guide
2-3

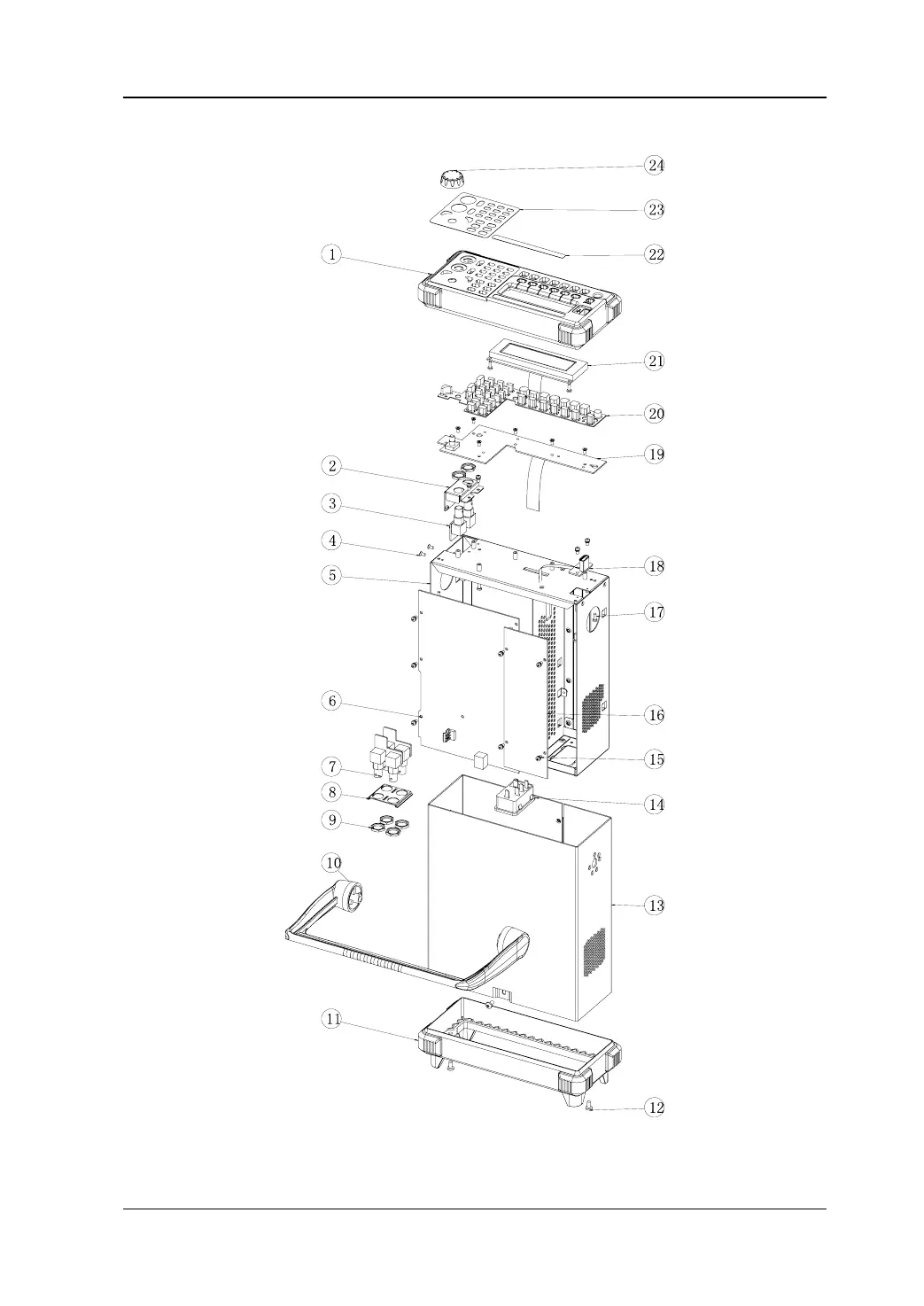

Exploded View Drawing and Replacement Parts List
Figure 2-1 Exploded View Drawing
