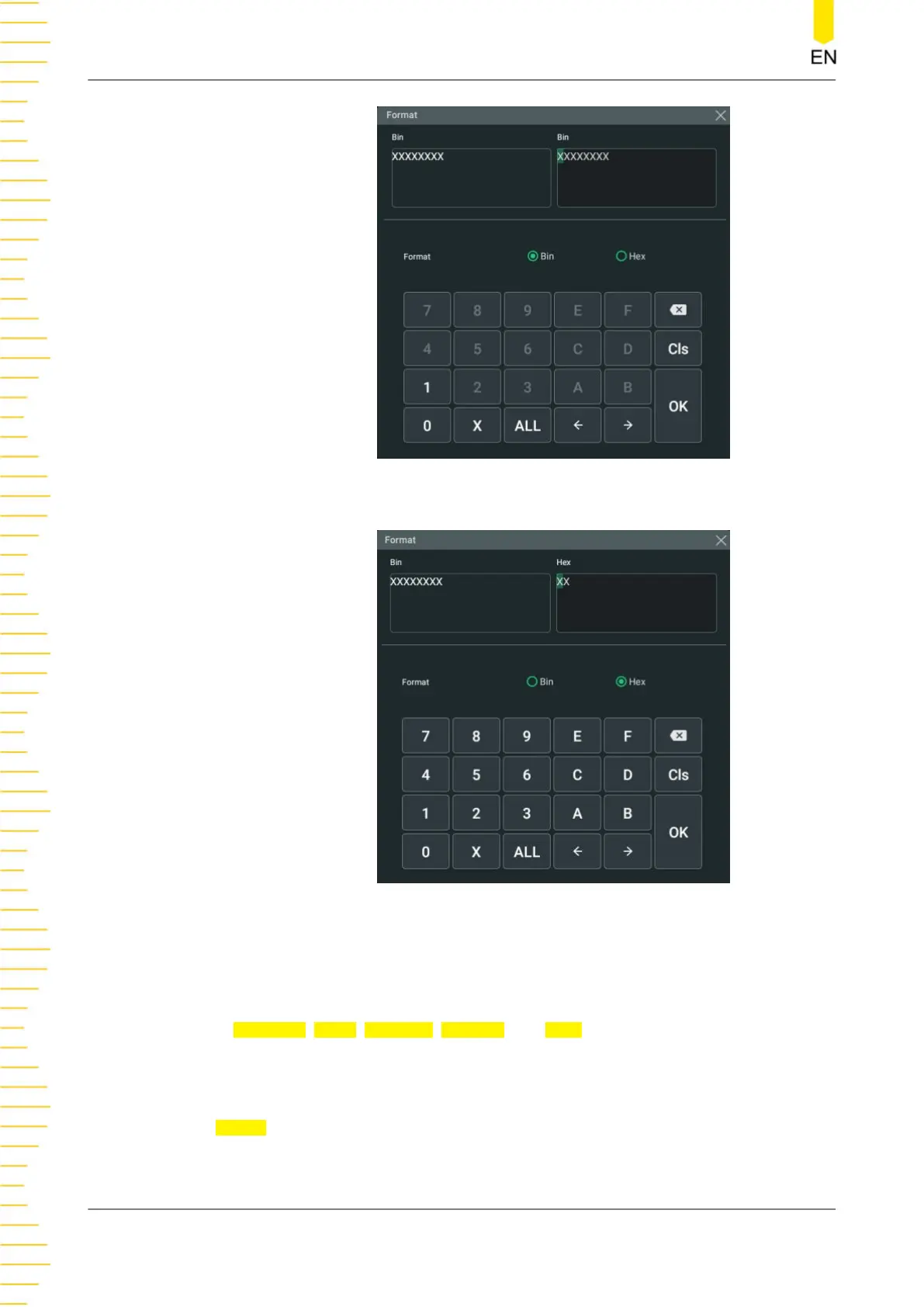

Figure 8.28 Binary Format Setting

Figure 8.29 Hexadecimal Format Setting

• A&D: the oscilloscope searches for the specified address and data at the same

time, then triggers when both the address and data meet the conditions. After

this condition is selected, you need to set the sub Data-menu items such as

Direction, Bytes, AddrBits, Address, and Data. For the setting methods, refer to

descriptions in "Address" and "Data" conditions.

Trigger Mode

Sweep, select Auto, Normal, or Single as the trigger mode. For details, refer to

descriptions in

Trigger Mode

Triggering the Oscilloscope

DHO800 User Guide

100
