1
2
6
3
8
9
10
11
12
14
15
16
5
4
7

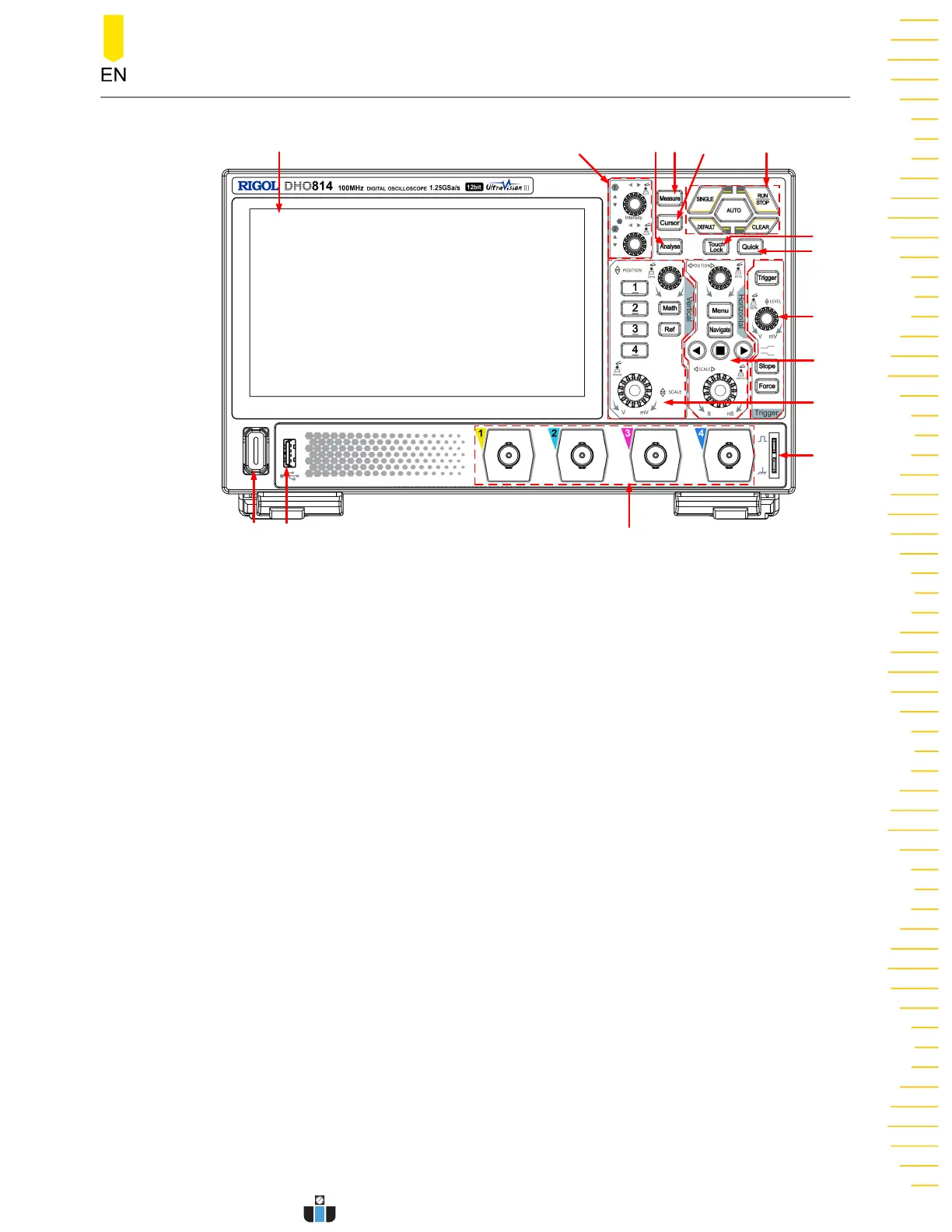

Figure 4.4 Front Panel (4-channel Model)
1
7'' Capacitive Touch Screen 9 Trigger Controls
2 Multipurpose Knobs 10 Horizontal Controls
3 Analyse Key 11 Vertical Controls
4 Measure Key 12 Probe Compensation Signal
Output Terminal/Ground Terminal
5 Cursor Key 13 External Trigger Input Terminal (for
two-channel models only)
6 Common Tools Keys 14 Analog Channel Input Terminals
7 Touch Lock Key 15 USB HOST Port
8 Quick Action Key (Self-defined
function)
16 Power Key
Product Overview
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
11
