4.4 User Interface Overview
1
2
3
4 5
6
7
8
10
11
13
14
15
12
9

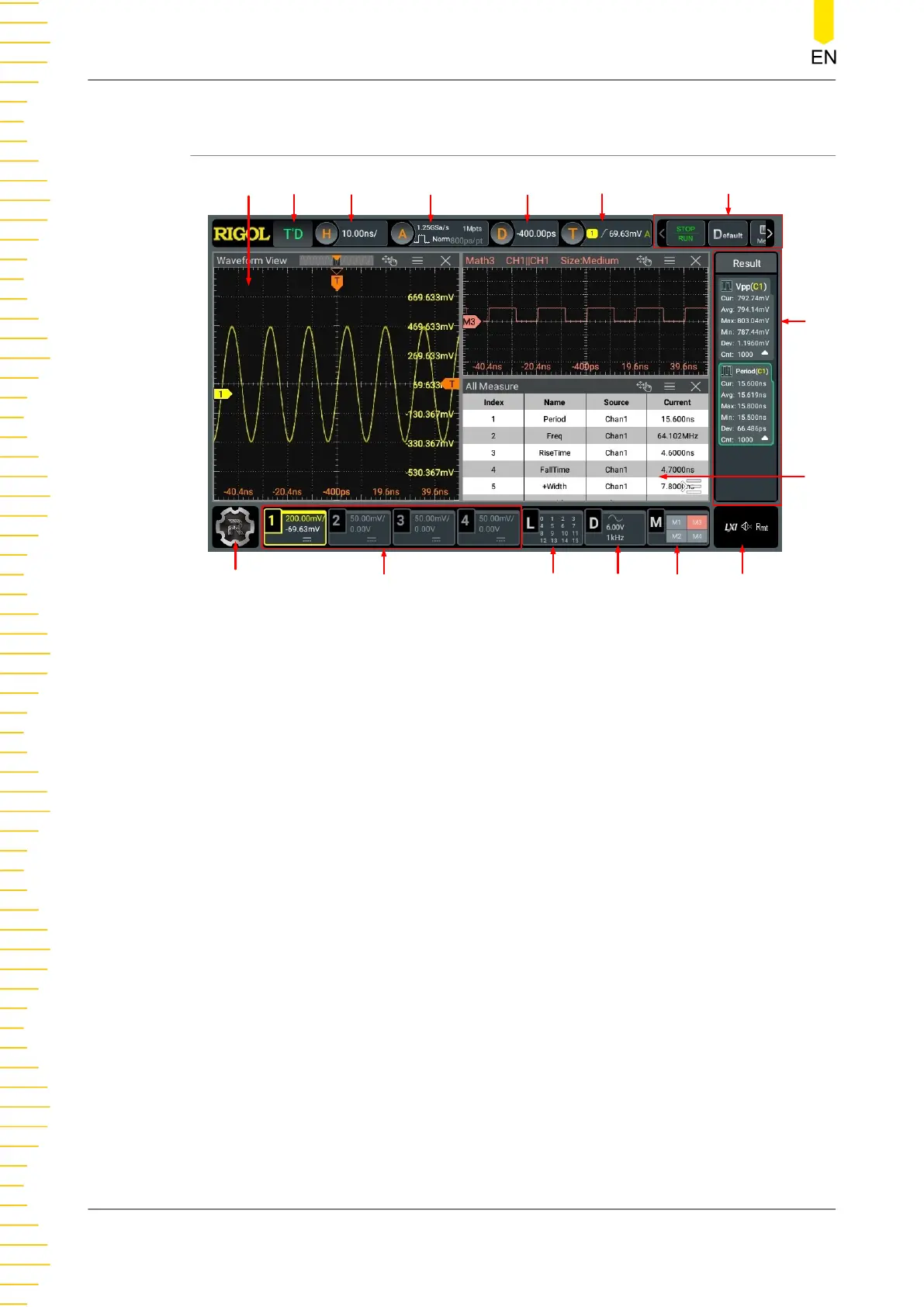

Figure 4.5 User Interface
1
Waveform View 9 Split-screen Display
2 Run State Label 10 Notification Area
3 Horizontal Timebase Label 11 Math Labels
4 Sample Rate & Memory Depth
Label
12 AFG Label (for DHO914S and
DHO924S only)
5 Horizontal Position Label 13 Logic Analyzer Label
6 Trigger Label 14 Channel Labels
7 Function Toolbar 15 Function Navigation Icon
8 Result Sidebar
Product Overview
12
