RIGOL Chapter 2 Front Panel Operations
2-6 DL3000 User’s Guide
"C_Limit".
(2) Enter a value by using the numeric keys, arrow keys, or the knob. For
setting methods, refer to the descriptions of the help information or refer to
the descriptions in "Parameter Setting Method".
4. Turn on the channel input
Press On/Off to turn on the channel input. At this time, the actual input
voltage, current, resistance, and power will be displayed in the main interface.
Note: Once the channel input is turned on, the load will not start to sink the
current until the input voltage is greater than the starting voltage.
To avoid electric shock, ensure that the DUT is connected to the
input terminals of the load properly before you turn on the channel
When the fan stops working, the channel is disabled. Then, a
message is displayed, "Fan stops running!"
5. View waveform display
Press the waveform display key
to enter the waveform display interface,
as shown in Figure 2-4. By default, the current waveform is displayed. When the
input voltage changes, the load will sink a constant current. For detailed
operations, refer to the descriptions in "Waveform Display Function" section.
Press the waveform display key
again to exit the waveform display
interface and return to the main interface of CC mode.

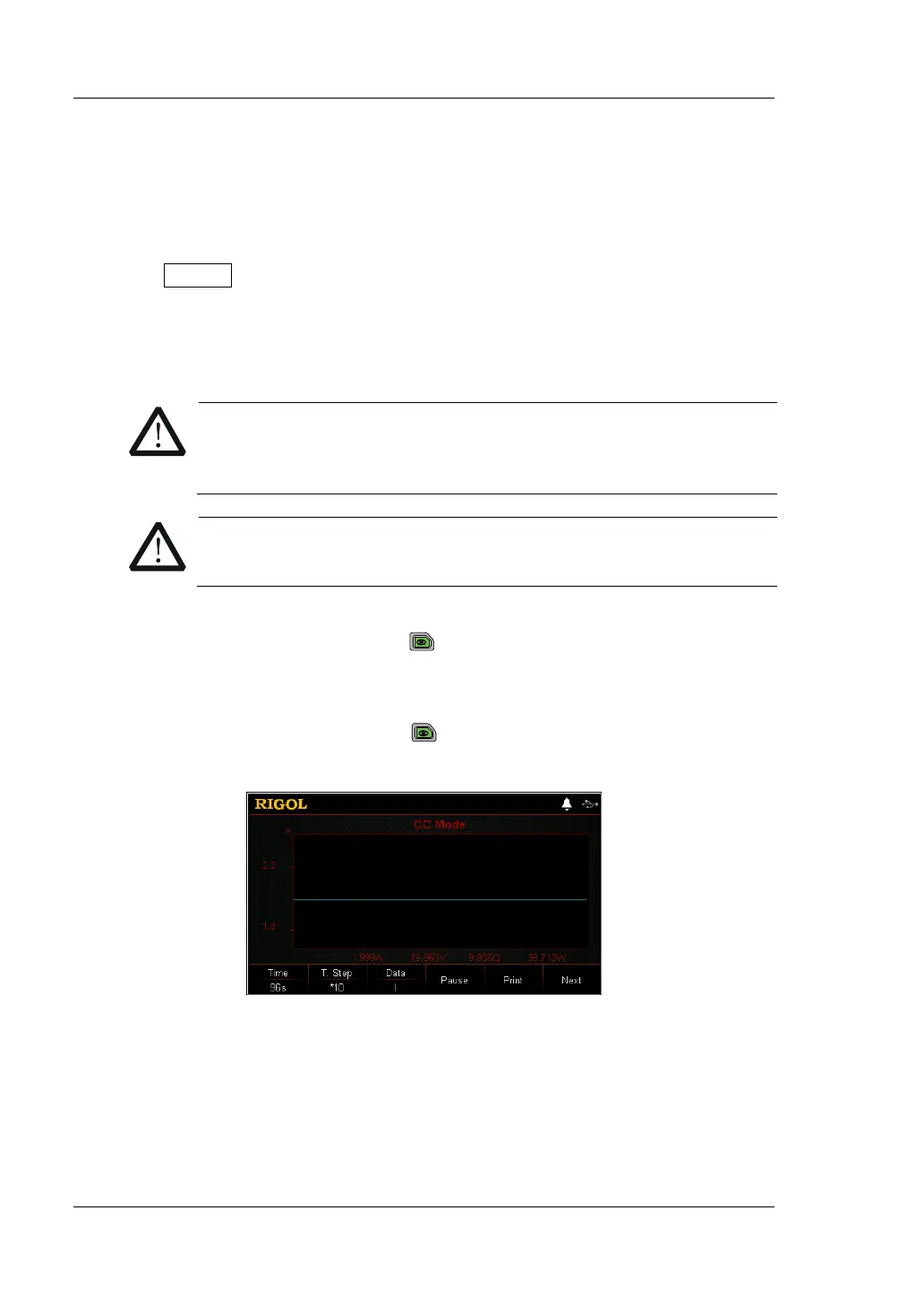

Figure 2-4 Waveform Display Interface of CC Mode
6. Exit CC mode
Press any key on the front panel of the load to exit CC mode.
