RIGOL Chapter 2 Front Panel Operations
2-16 DL3000 User’s Guide
To avoid electric shock, ensure that the DUT is connected to the
input terminals of the load properly before you turn on the channel
input.
When the fan stops working, the channel is disabled. Then, a
message is displayed, "Fan stops running!"
5. View waveform display
Press the waveform display key
to enter the waveform display interface,
as shown in Figure 2-13. When you select "P" under "Data", you can view the
power waveform. When changes occur to the input voltage, the current changes
linearly to keep the power value unchanged. For detailed operations, refer to the
descriptions in "Waveform Display Function" section. Press the waveform
display key
again to exit the waveform display interface and return to the
main interface of CP mode.

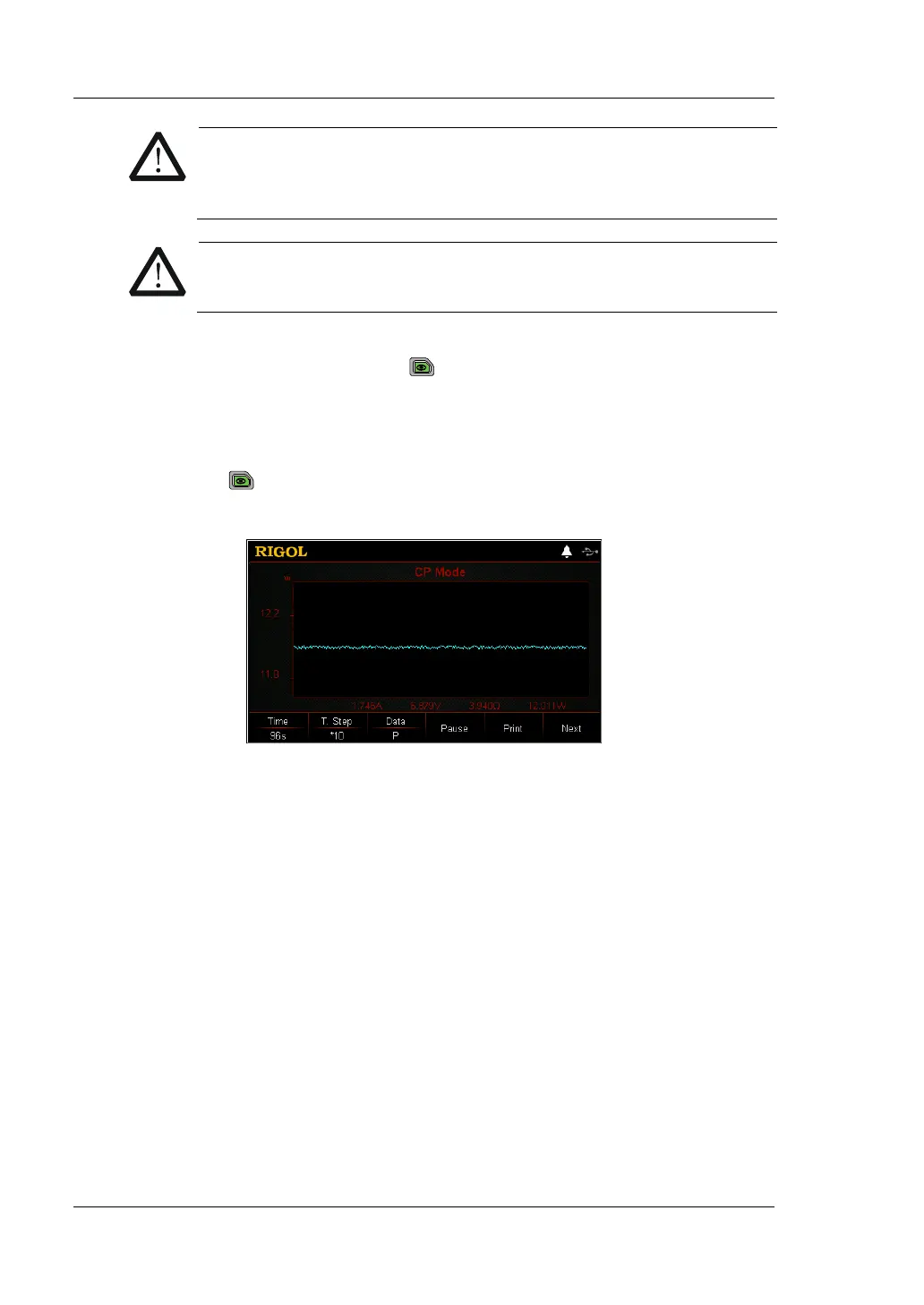

Figure 2-13 Waveform Display Interface of CP Mode
6. Exit CP mode
Press any key on the front panel of the load to exit CP mode.
