6. View waveform display
After you enter the main interface, press the waveform display key
to
enter the waveform display interface, as shown in Figure 2-25. The load current
will always stay at Level A and it will not switch to Level B unless you disable the
trigger manually. For detailed operations, refer to the descriptions in
"Waveform Display Function" section. Press the waveform display key
again to exit the waveform display interface and return to the main interface
of Tog mode.

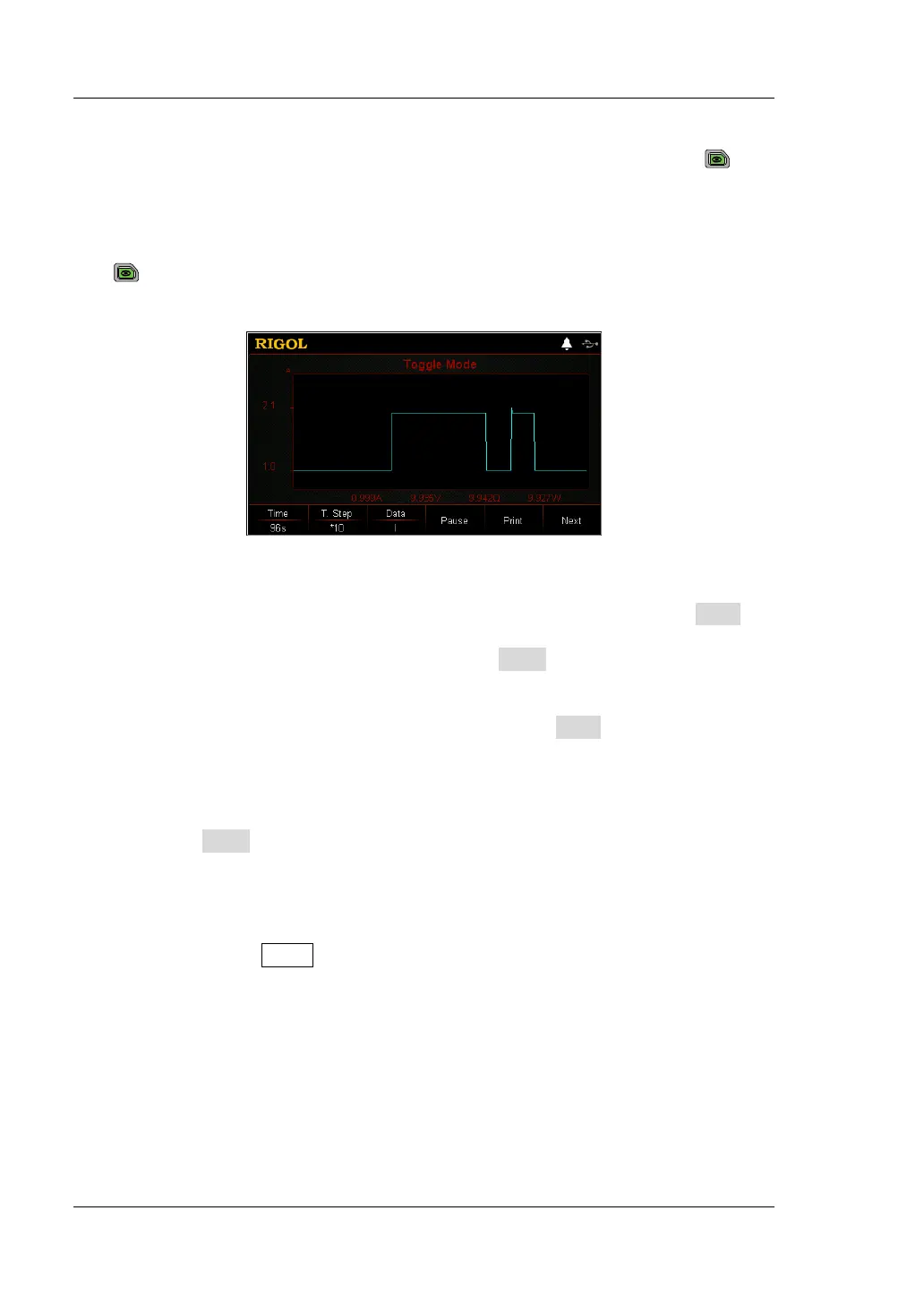

Figure 2-25 Waveform Display Interface of Tog Mode
7. Save and read files
In the guide interface and main interface of Tog mode, you can press Save to
save the parameters for Tog mode to the internal or external memory, and you
can read and recall it if necessary by pressing Read.
(1) Save
After you complete the parameter setting, press Save to enter the storage
and recall interface. The file is saved in ".TOG" format. For detailed saving
operation, refer to the descriptions in "
Save".
(2) Read
Press Read to enter the storage and recall interface. Recall and read the
files in ".TOG" format or the ".RSF" files beginning with "TOG_". For
detailed reading operation, refer to descriptions in "
Read". The files to be
recalled and read are allowed to be edited.
How to press the Store key on the front to perform the saving and reading
operation, refer to the descriptions in "Store and Recall".
8. Exit Tog mode
Press any key on the front panel of the load to exit Tog mode.
