Rigol DM3000 Series Service Guide

RIGOL
Service Guide for DM3000 Series
2-4
Introduction of Front Panel

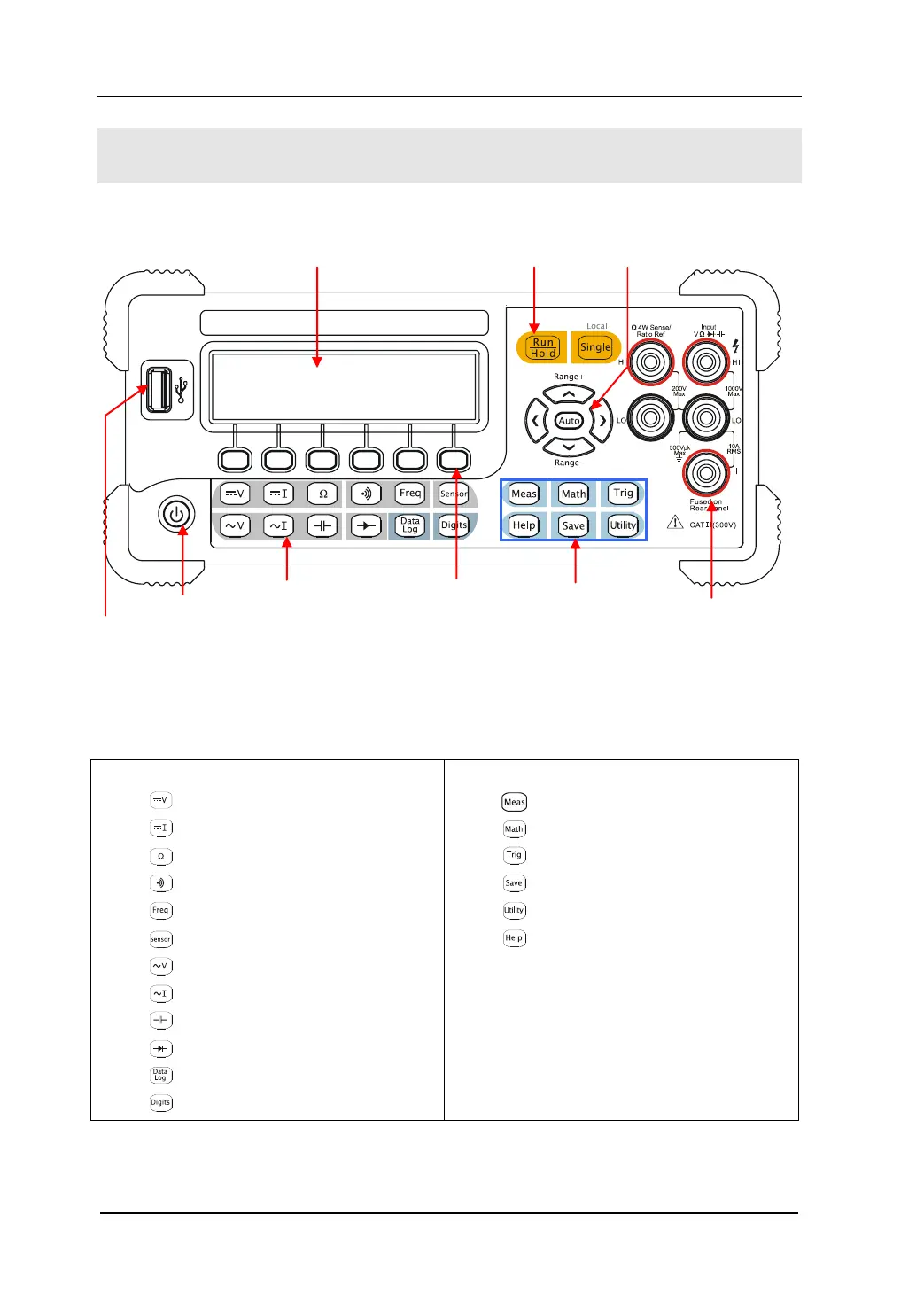

Figure 2-3 Sketch map of Front Panel
Gray Function Keys：
Measure DC Voltage
Measure DC Current
Measure Resistance
Measure Continuity
Measure Frequency
Measure Sensor
Measure AC Voltage
Measure AC Current
Measure Capacitance
Measure Diode
Logging Data
Set the Digit of Shown Data
Blue Function Keys:
Set the System parameters
Open Math operation
Set Trigger and Parameter
Save and Recall
Set the Utility Functions
View the built-in Help System
Direction Keys
Yellow District:
Trigger Control Keys
LCD Display
USB Host
On/Off
Switch
Gray District:
Measurement
Function Keys
Menu Operation
Keys
Blue District:
Function Selective
Keys
Current Input Terminal
