Service Guide for DM3000 Series
5-3
The 3D View of DM3000
The 3D views of DM3000 are shown in the figure 5-1 and figure 5-2. You should have a
primary understanding of the main parts of the instrument before disassembling and
assembling. In progress of disassembling or assembling, please operate gently and step by
step. Note that please not scratch the surface of the device and damage PCB and so on by
tools, see the Disassembly and Assembly Notice. The disassembly order suggested is given as
followings (for example DM3064):
Handle  Rear Panel  Metallic Shell  Fuse Socket  BNC & GPIB PCB  Filter
Board and Transformer  Front Panel and LCD  Multiplexer Board 
Motherboard  Key Board PCB.
The assembly step is reverse.

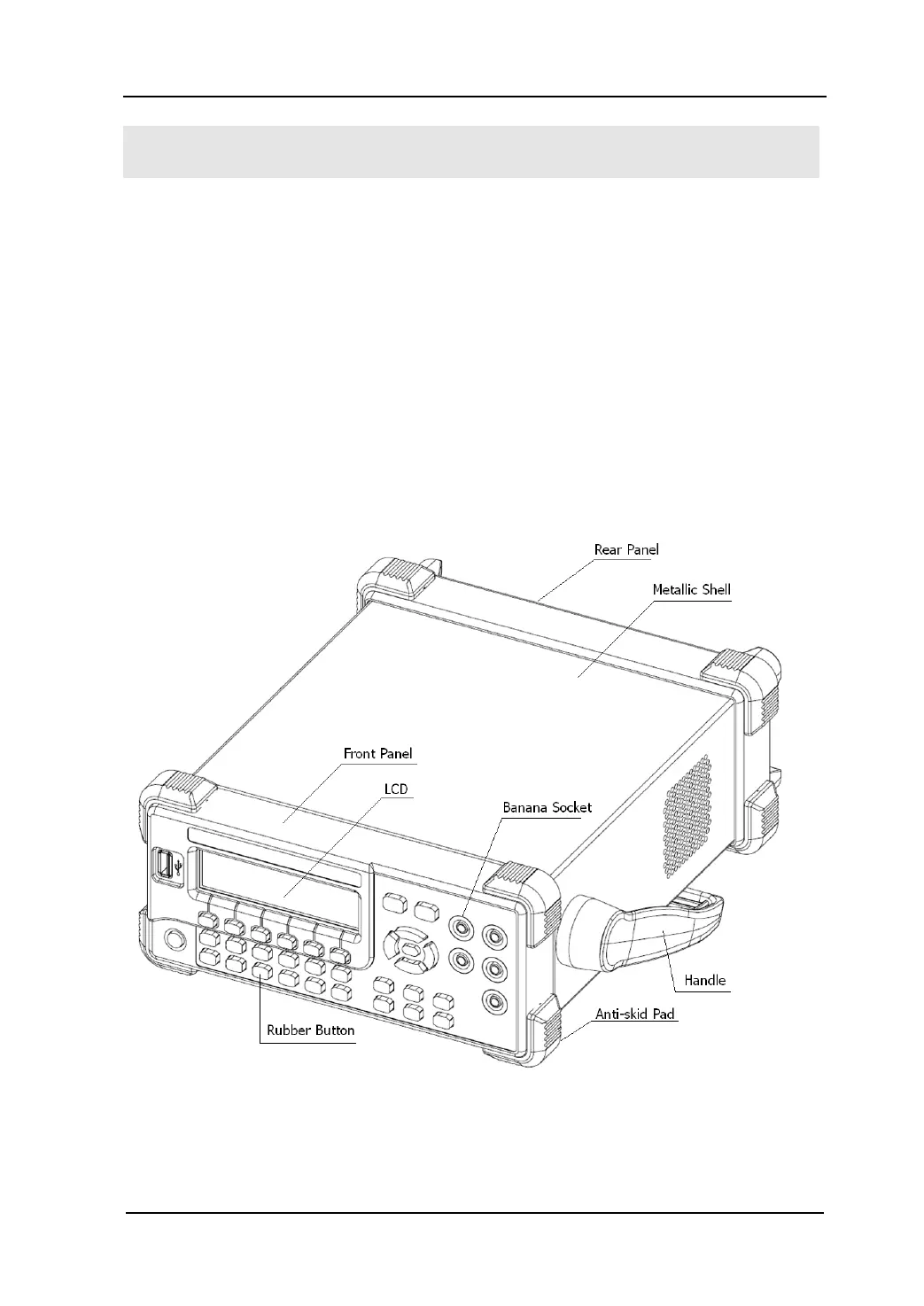

Figure 5-1 The Exterior 3D View of DM3000
