User‟s Guide for DS1000 Series
3-5
 Toggle the Averages soft button to select the number of averages that best
eliminates the noise from the displayed waveform. It can be adjusted from 2- 256.
(See Figure 3-3)

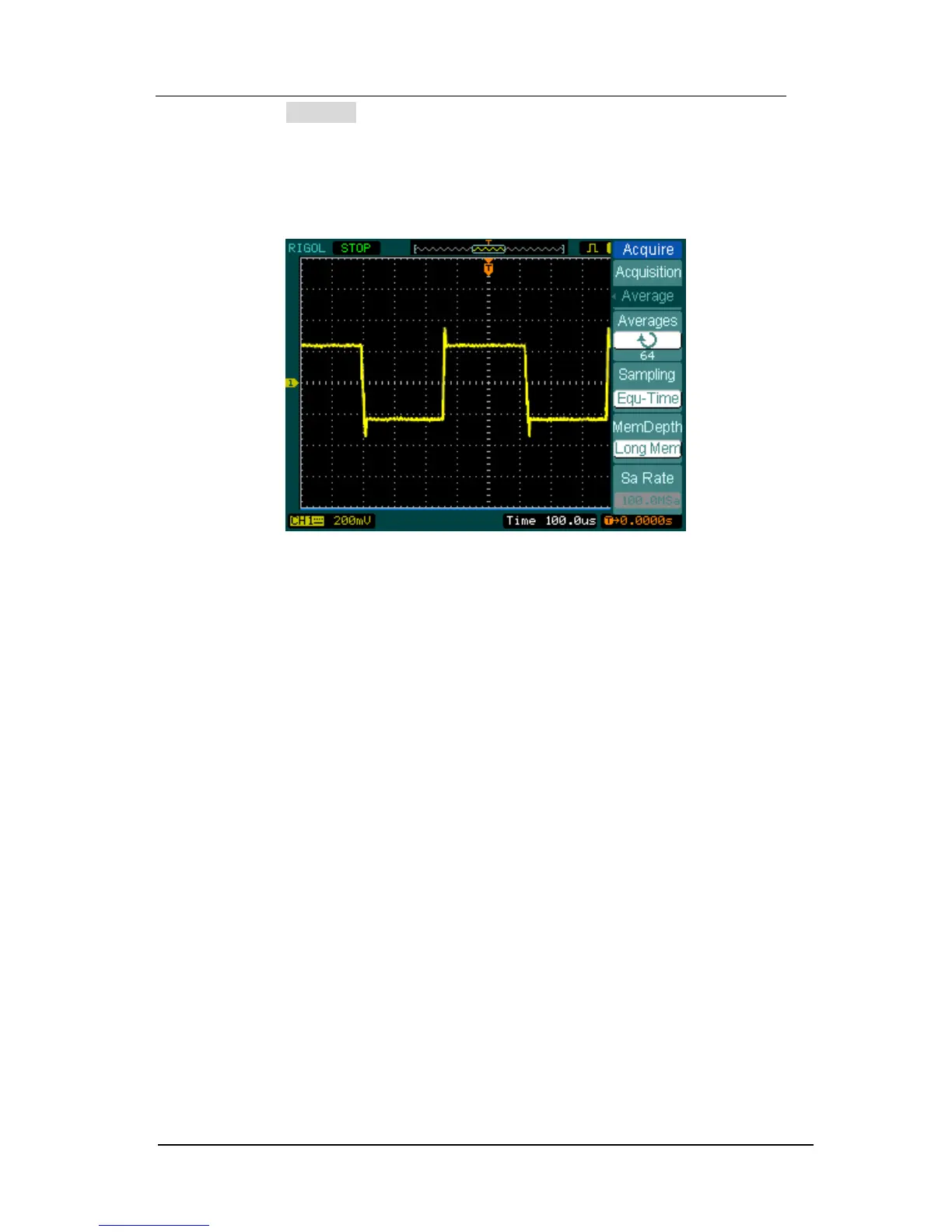

Figure 3-3
Waveform display
(2) To reduce the noise it can also be achieved by reducing the intensity of the
display.
NOTE:
It is normal that the refresh rate will slow down when the average acquisition
mode is ON.
