To Store and Recall Waveforms or Setups

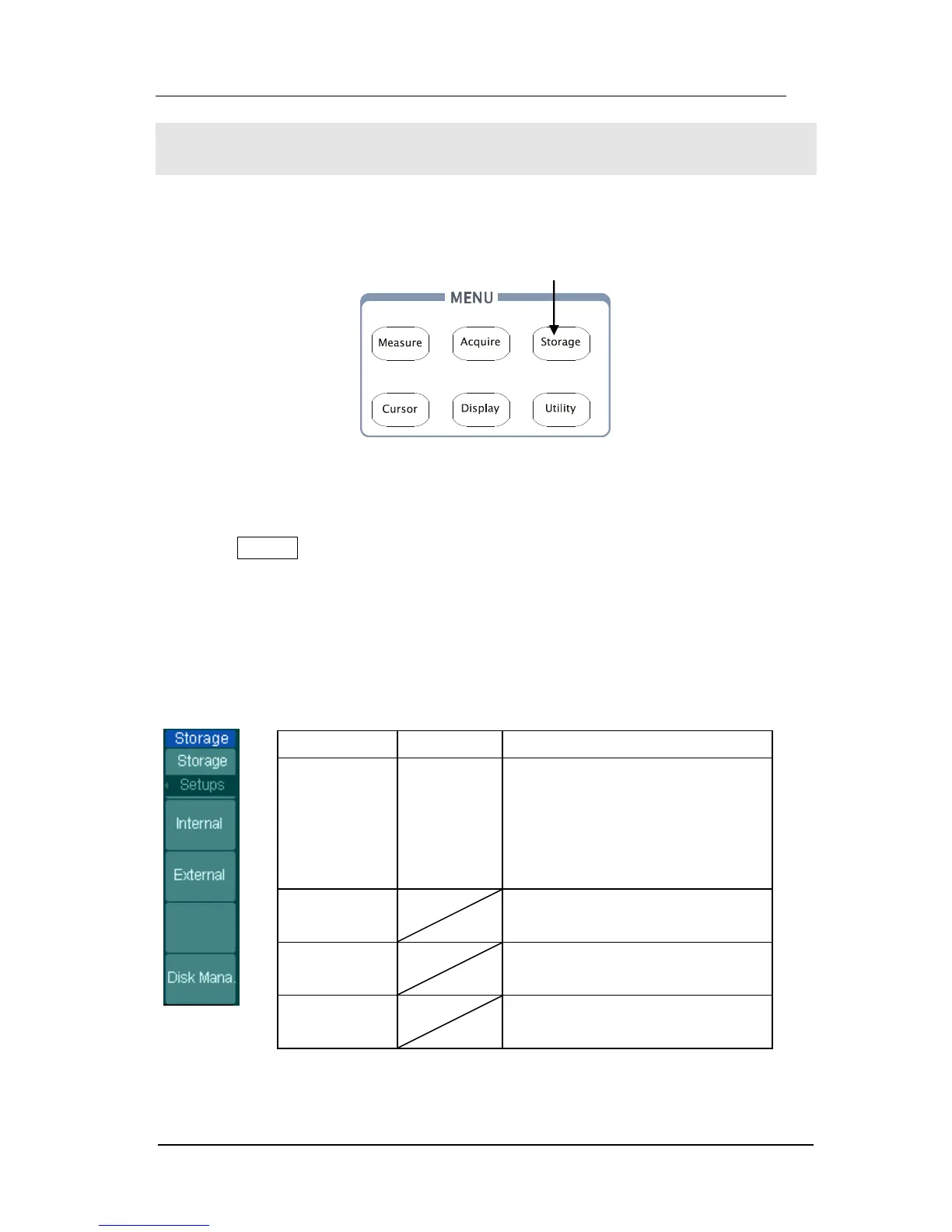

Figure 2-74 shows the menu button for the storage system on the front panel.
Figure 2-74
Storage Setup Button
Press the Storage button to show the menu for the settings of the storage system.
Waveforms and setups can be stored in and recalled from, both internal memory and
external memory. The waveform file, setup file, bitmap and CSV file in external
memory can be created and deleted. System supports English/Chinese key in.
Waveform and setup, the menu as following:
Figure 2-75 Table 2-44 The Storage menu
Menu
Settings
Comments
Storage
Waveform
Setups
Bit map
CSV
Factory
Store or recall waveform
Store or recall instrument setups
Create or delete bit map files
Create or delete CSV files
Recall factory setups
Internal
Go to menu for internal memory
operation (see table 2-48)
External
Go to menu for external memory
operation (see table 2-49)
Disk Mana.
Go to disk manage menu (see
table 2-50)
