User‟s Guide for DS1000 Series

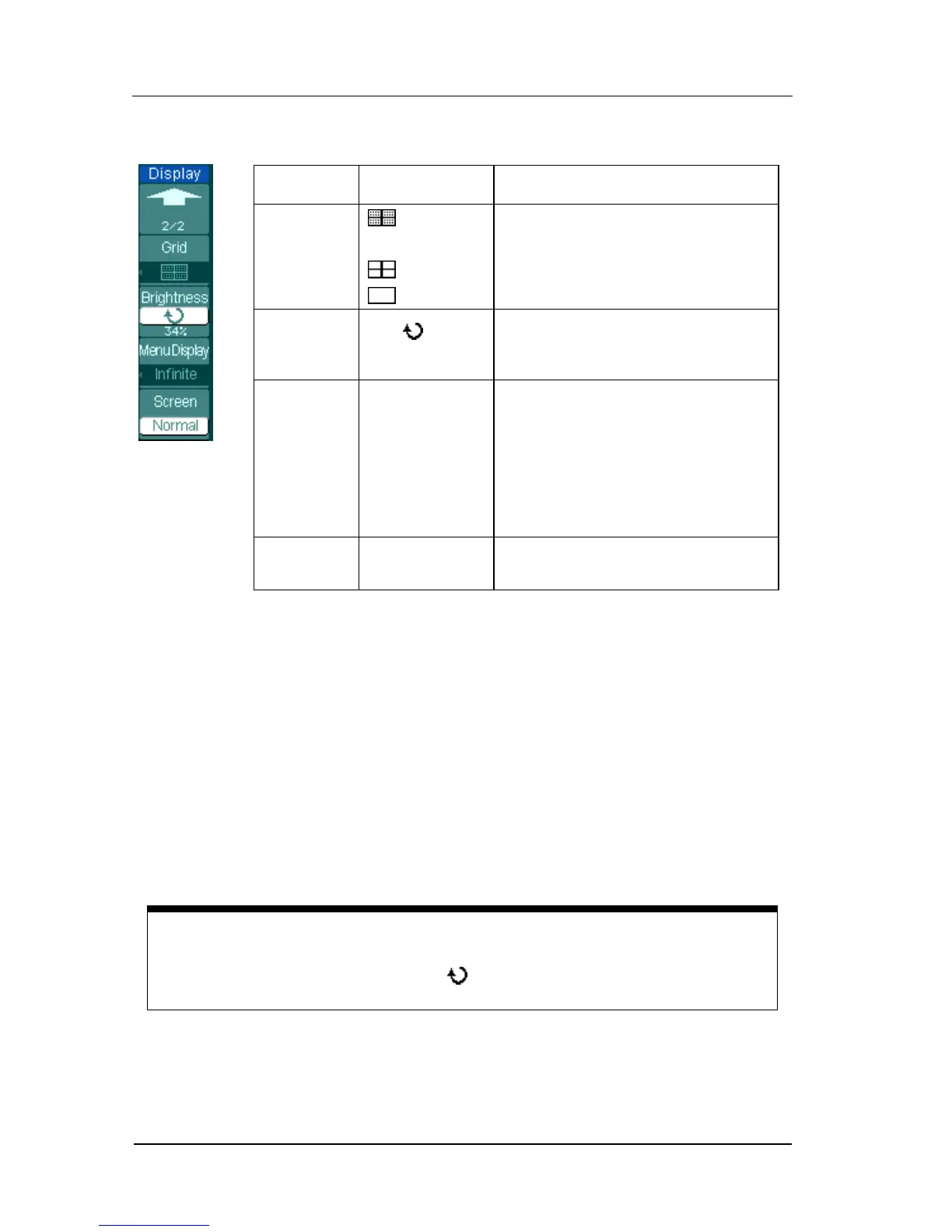

Figure 2-73 Table 2-43 The Display menu (Page 2/2)
Display grids and coordinates on
the screen
Turn off the grids
Turn off the grids and coordinates
1s
2s
5s
10s
20s
Infinite
Set the time before menu fades
away. The menu will be hidden
after the set time of last button
pressing.
Set to normal mode
Set to invert color display mode
Key points:
Display type: Display type includes Vector and Dot. In vectors type, oscilloscope
connects dots through digital interpolation including both linearity and sin(x)/x.
Sin(x)/x interpolation is suitable for Real-time sampling and will be more effective at
50ns or faster time base.
Refresh rate: It is an important performance of digital oscilloscopes. It means the
number of display refreshing per second and it will affect the ability to observe signal.
Adjusting waveform intensity
Default setup of multi-function knob ( ) is adjusting waveform intensity.
