User‟s Guide for DS1000 Series
2-57

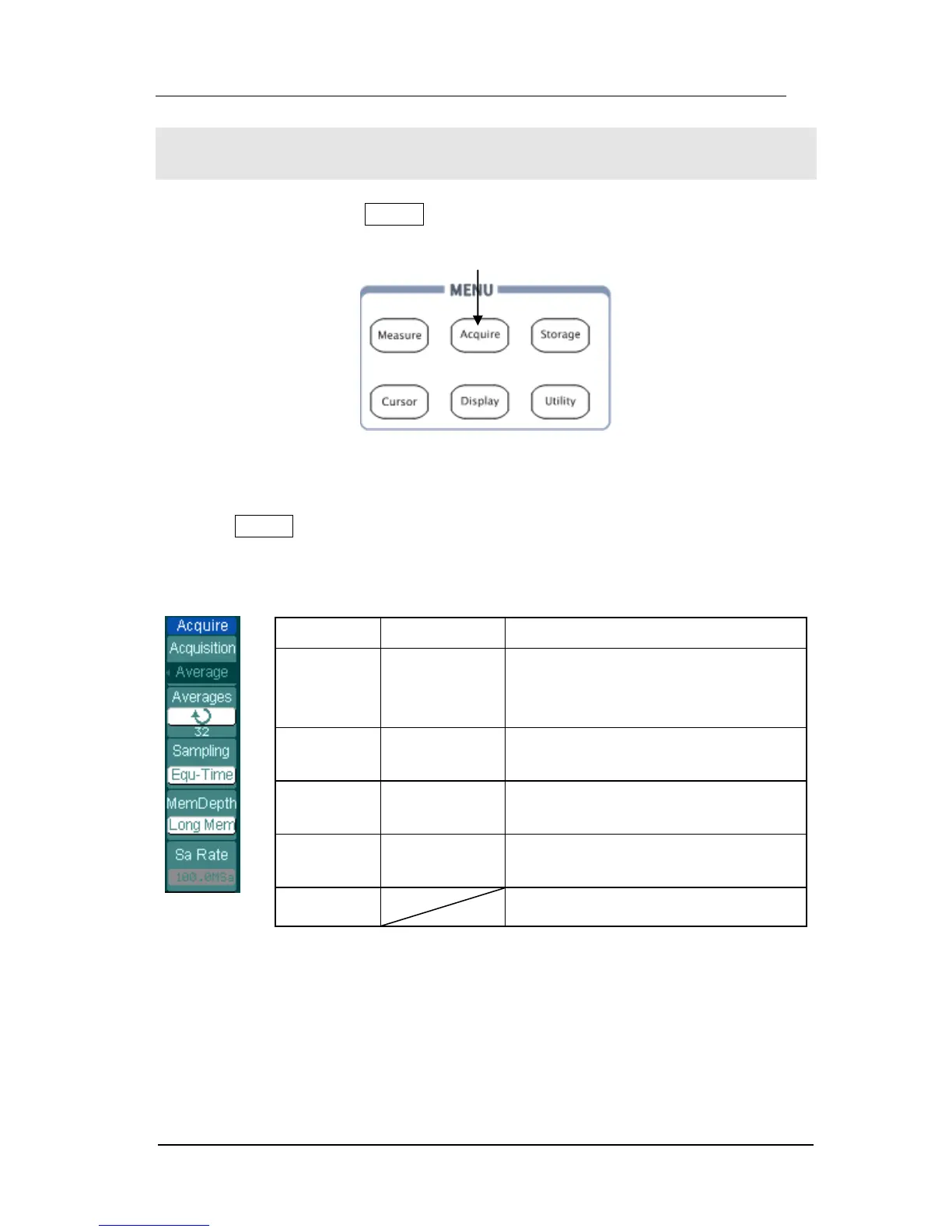

To Set Up the Sampling System
As Figure 2-66 shows, the Acquire button at the MENU of the front panel.
Figure 2-66
The menu
Press the Acquire button, the interface menu as follows:
Figure 2-67 Table 2-41 The Acquire menu
Menu
Settings
Comments
Acquisition
Normal
Average
Peak Detect
Normal Acquisition mode
Average Acquisition mode
Peak Detect Acquisition mode
Averages
2 to 256
Step by multiple of two. Set average
times from 2 to 256
Sampling
Real-Time
Equ-Time
Real-time sampling mode
Equivalent sampling mode
Mem
Depth
Long Mem
Normal
Set up memory as 512K or 1M
Set up memory as 4K or 2K
Sa Rate
Display sampling rate
Acquire setup button
