User‟s Guide for DS1000 Series
2-2
Understand the vertical system
Settings of the channels
Each channel of DS1000CA has an operation menu and it will pop up after pressing
CH1 or CH2 button. The settings of all items in the menu are shown in the table
below.

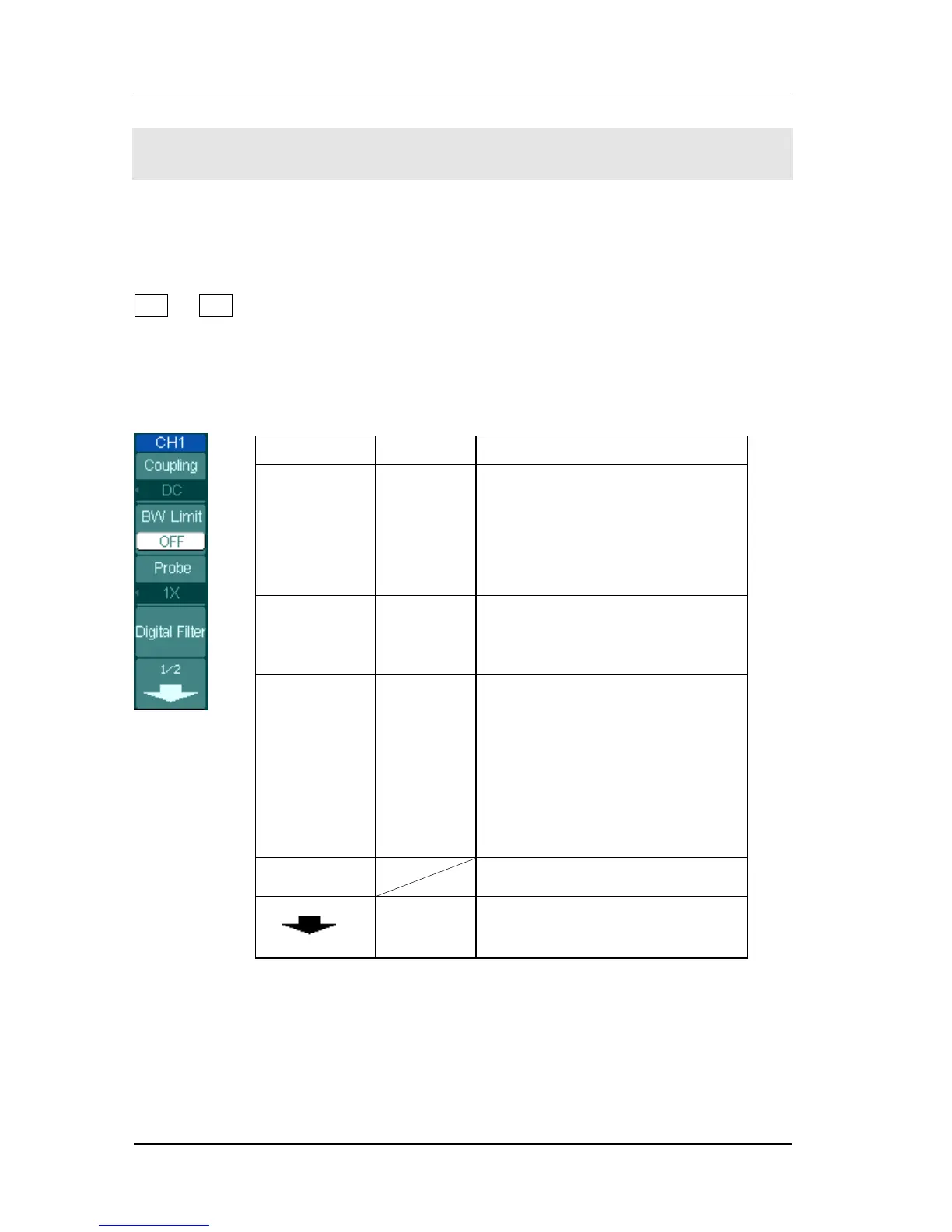

Figure 2-1 Table2-1 The Channel menu (Page 1/2)
Menu
Settings
Comments
Coupling
AC
DC
GND
Blocks the DC component of the
input Signal
Passes both AC and DC
components of the input signal
Disconnects the input signal
BW Limit
ON
OFF
Limits the channel bandwidth to
20MHz to reduce display noise.
Get full bandwidth.
Probe
1X
5X
10X
50X
100X
500X
1000X
Set this to match your probe
attenuation factor to make the
vertical scale readout correct
Digital filter
Setup digital filter (See table 2-4)
1/2
Go to the next menu page (The
followings are the same, no
more explanation)
